Chapter 2. Server Installation and Utilities
17

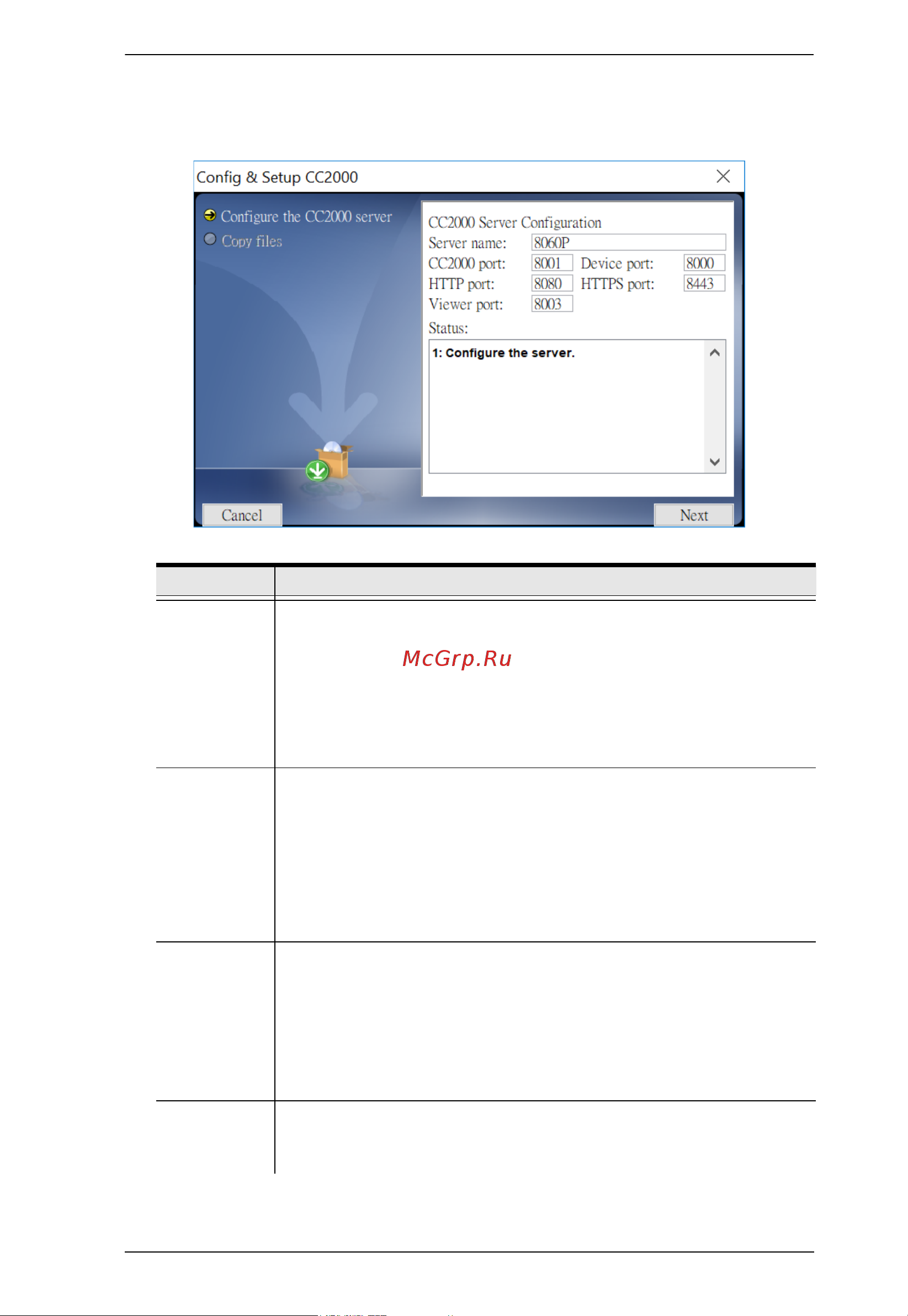

7. In the Configuration dialog box, fill in the fields according to the
information provided in the table below.
Heading Explanation
Server name The dialog box presents the default name of the server – as defined
in the Windows Computer Name setting. You can define a name to
identify the server on the CC2000 installation, if you wish. The name
can be of 2–32 bytes in any supported language.
Note: 1. The following characters may not be used: " ' \
2. This name is only for CC2000 server purposes – it doesn’t
change the actual computer name.
CC2000 port The port that the CC2000 server uses to communicate with other
CC2000 servers. The default is 8001.
Note: 1. This is the CC2000 Port referred to on the Redundant
Servers web page (see Redundant Servers, page 221).
2. Although each CC2000 server on the system can use its
own port setting, for ease of management, we recommend
that all CC2000 servers use the same port setting.
Device port The port that the CC2000 server uses to communicate with the
connected devices (ATEN/Altusen IP products) on the installation.
The default is 8000.
Each CC2000 can have a separate Device port number, but in order
to communicate with the devices connected on its network
segment, those devices must be configured to use the same port as
the one set here.
HTTP port The port that the CC2000 server uses for web communication. The
default is 8080. If you use a different port, users must specify the
port number in the URL of their browsers.
