CC2000 User Manual

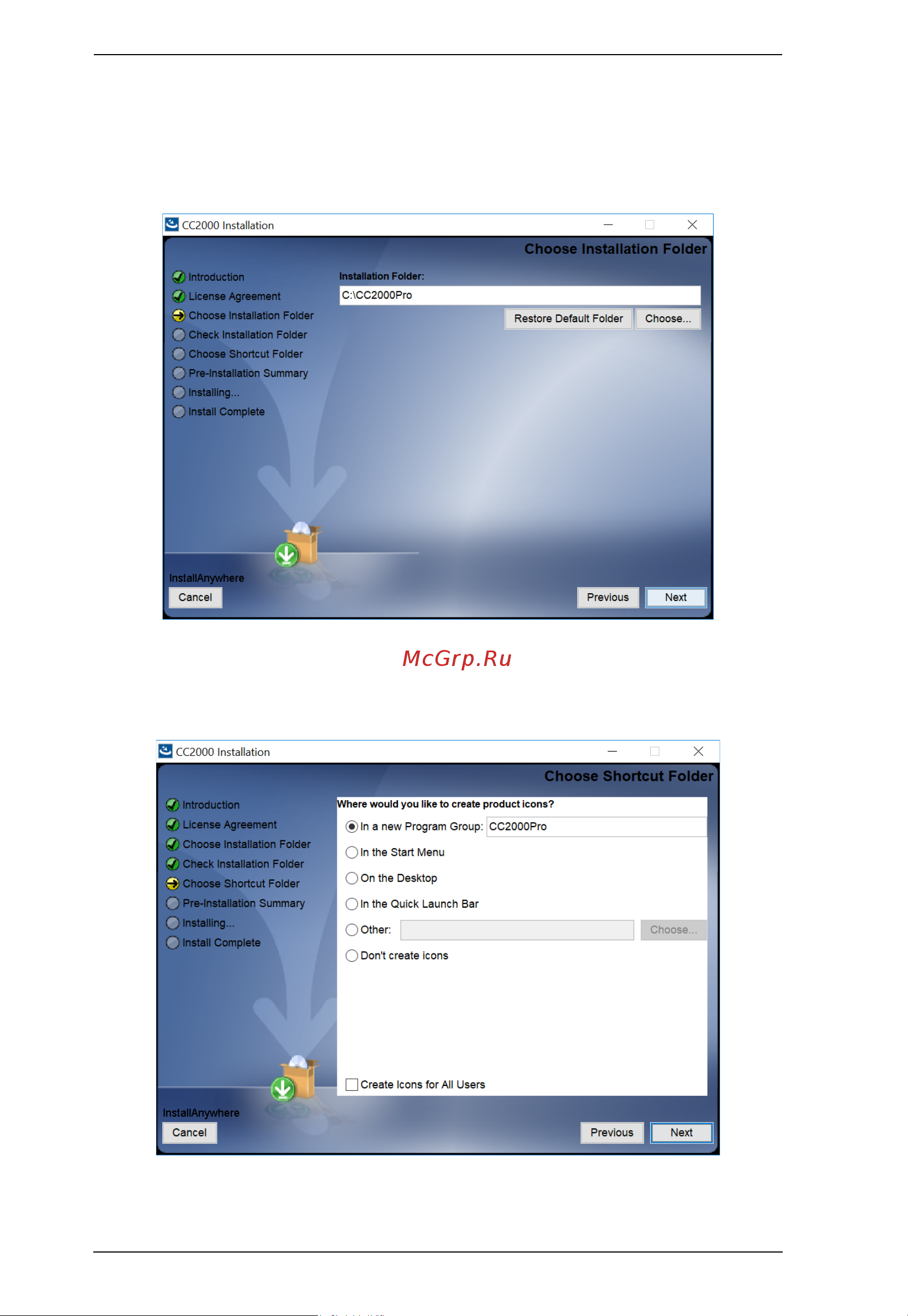

5. The installer will bring you to the Choose Installation Folder page and ask

you to specify the CC2000’s installation directory. If you don’t want to use

the default entry, click Choose... to browse and select a location. Click

Next to continue.

6. In the Choose Shortcut Folder dialog box, click the radio buttons to

specify where you would like to create software shortcuts. Click Next to

continue.
