Aten CC2000 3.0 [291/353] The cc2000 utility

277

Appendix B

The CC2000 Utility

Overview

The CC2000Pro Utility is installed as a part of the CC2000 installation. It

allows you to configure a number of the CC2000’s parameters from the

desktop of the computer that the CC2000 runs on, without having to invoke the

browser GUI.

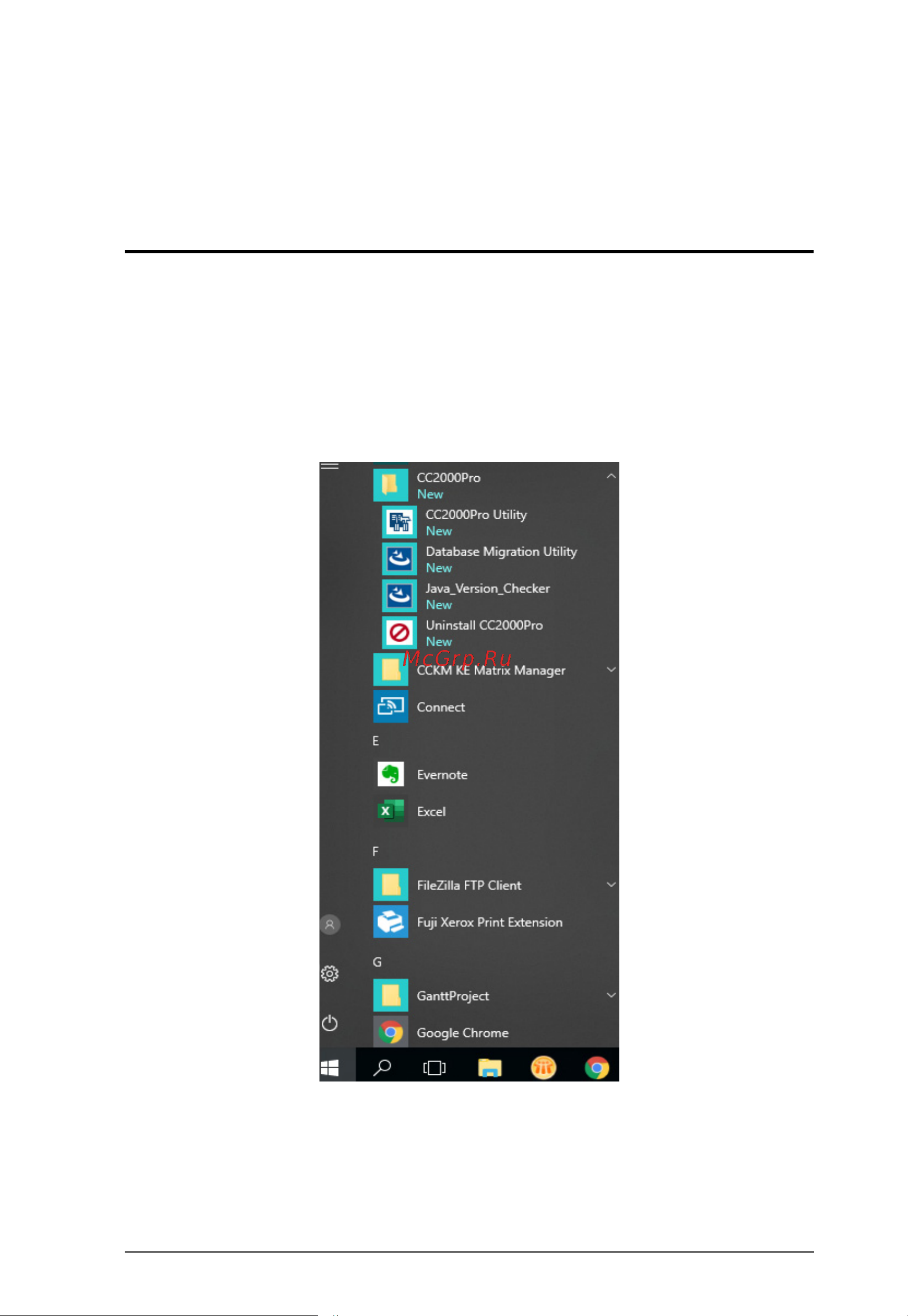

In Windows, to run the program, open the Start menu, navigate to the CC2000

entry (Programs

→

CC2000Pro), and select CC2000Pro Utility:

In Linux, as root, go to the /opt/CC2000Pro/Runable directory, and run the

CC2000Pro_Utility file.
