CC2000 User Manual
318

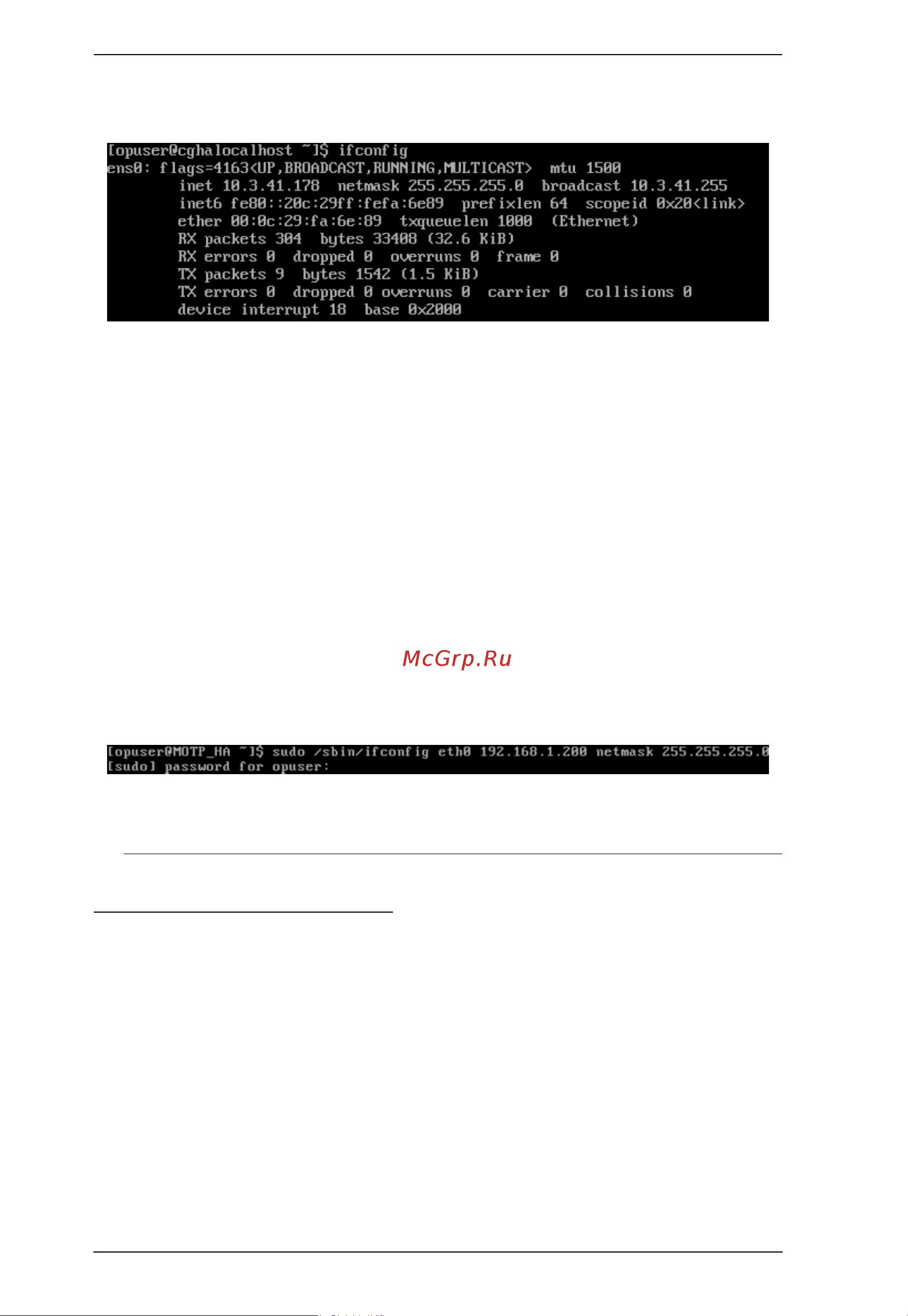

By default, the MOTP server obtains an IP automatically through a DHCP
server. To find the obtained IP, enter ifconfig.
2. Set the MOTP server IP with Static IP
Confirm in advance:
The address we will be using (e.g. 192.168.1.200) is available for the
first VM network card.
The computer the admin is using for this setup is also capable of
connecting to this IP address.
Assuming we are setting MOTP welcome page of the first network card IP
address to 192.168.1.200:
1. Enter
sudo /sbin/ifconfig ens0 192.168.1.200 netmask
255.255.255.0
2. Enter the password of the opuser (“op123pass”)
You can check the network card name by using the ifconfig
command.
MOTP Server Initialization
After setting the IP address, open the IP address in a browser in the format
below for MOTP server initialization:
http://192.168.1.200:8080/MOTPWeb
