Aten CC2000 3.0 [336/353] Motp server setting

CC2000 User Manual

322

MOTP Server Setting

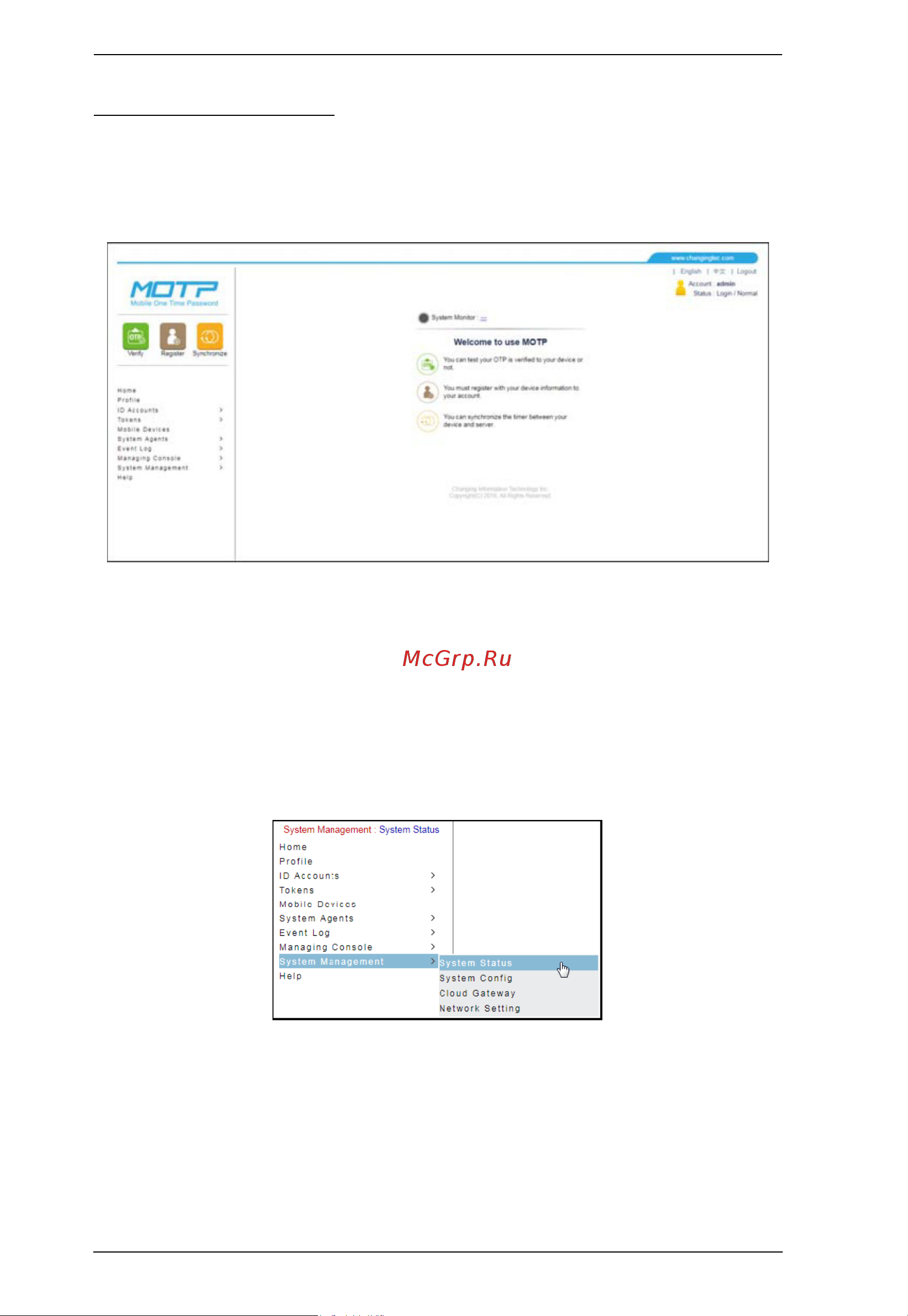

Go to the MOTP server (e.g. http://192.168.1.200:8080/MOTPWeb) and log in

with the account name “admin” and password “admin”.

The Management page of the server appears, as exemplified below:

Import License

To activate the MOTP server service, you will need to purchase a license

(*.pem) and tokens (*.csv) from CHANGING Information Technology Inc.

(https://www.changingtec.com/EN/). When you have the details of the License

and Tokens, import them by following the steps below:

1. Go to [System Management]

→

[System Status]:

2. In System Status, click “License Management” to start importing the

purchased license.
