Chapter 5. Device Management
139

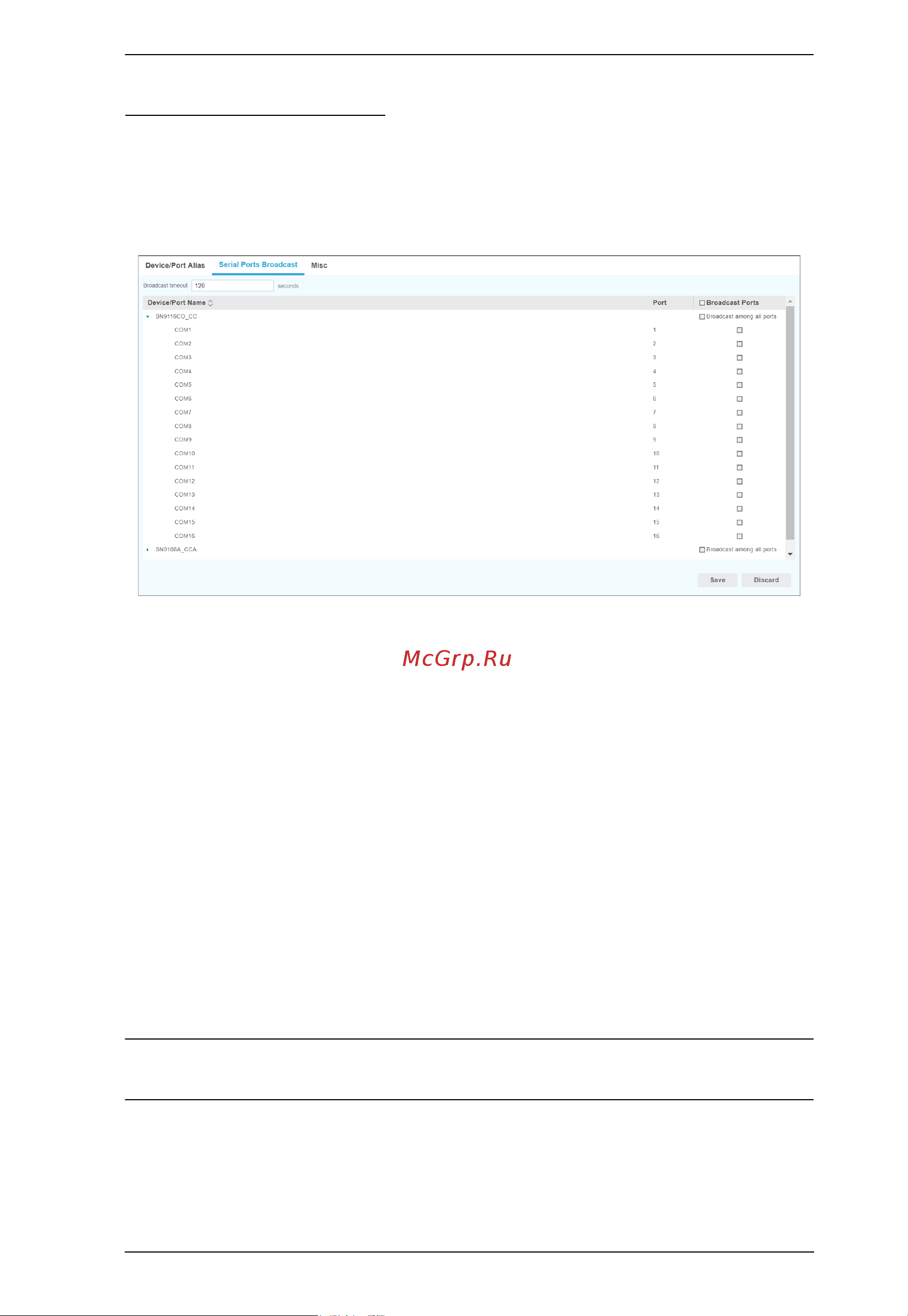

Serial Ports Broadcast
This tab allows you to select ports on a serial device to receive broadcast
commands. Selecting multiple Broadcast Ports allows you to access and make
changes on a single serial port and the same change will be made across all
Broadcast Ports.
For broadcasting to work, you must access a Broadcast Port using the
SNViewer and turn Broadcast on from the Control Panel. Refer to the SN user
manual (under Control Panel Functions) for details.
Broadcast timeout: If there is no user input for the amount of time set here,
the Broadcast function (to other ports) is automatically ended. Key in a value
from 0–240 seconds. A setting of 0 (zero) has the same effect as disabling the
function.
You can check Broadcast Ports on the last column of the table to check all
serial ports in the table.
You can check Broadcast among all ports for a particular device to check all
of its serial ports.
Expand the serial device to see all serial ports by clicking the arrowhead in
front of the device. You can check individual port for broadcasting.
Note: The CC2000 will only list serial devices which are connected to a
switch that supports broadcast ports.
