CC2000 User Manual

Recent

The Recent page is similar to history. Devices and ports that you have

previously accessed are listed here (up to 100 recent devices/ports) and you can

come to this page to quickly access them. Simply open this page and select the

device/port instead of hunting for devices and ports in the Devices submenu.

This feature is especially handy on large, crowded installations.

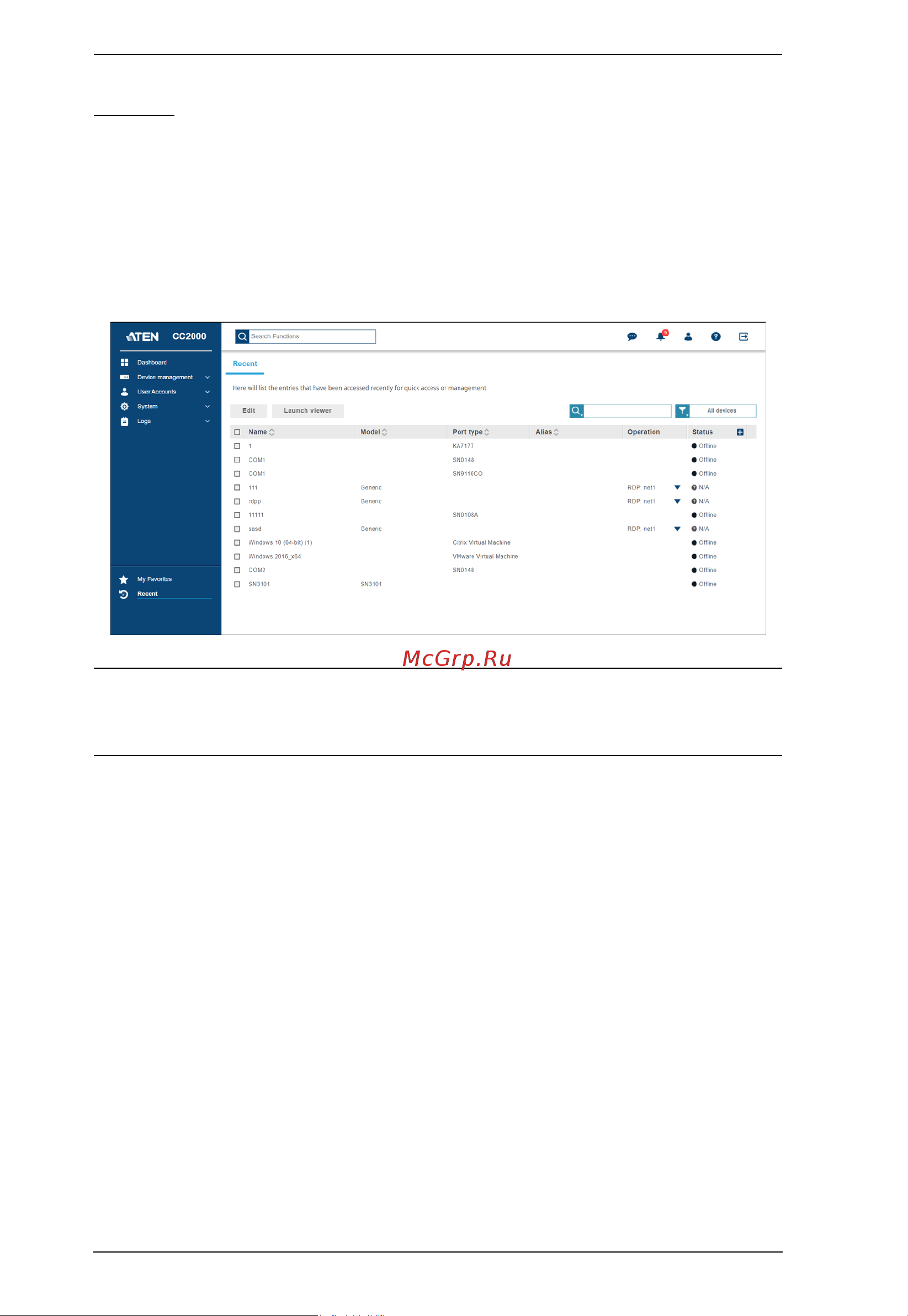

Clicking Recent will bring you to the page shown below:

Note: Editing and operations are the same as those in the Devices submenu.

Refer to By Devices - General Operations on page 58 for more

information.
