Aten CC2000 3.0 [146/353] Firmware repository

CC2000 User Manual

132

4. Select the device you wish to upgrade and click Upgrade.

5. A confirmation message will pop up, click Ye s to upgrade the device’s

firmware.

Firmware Repository

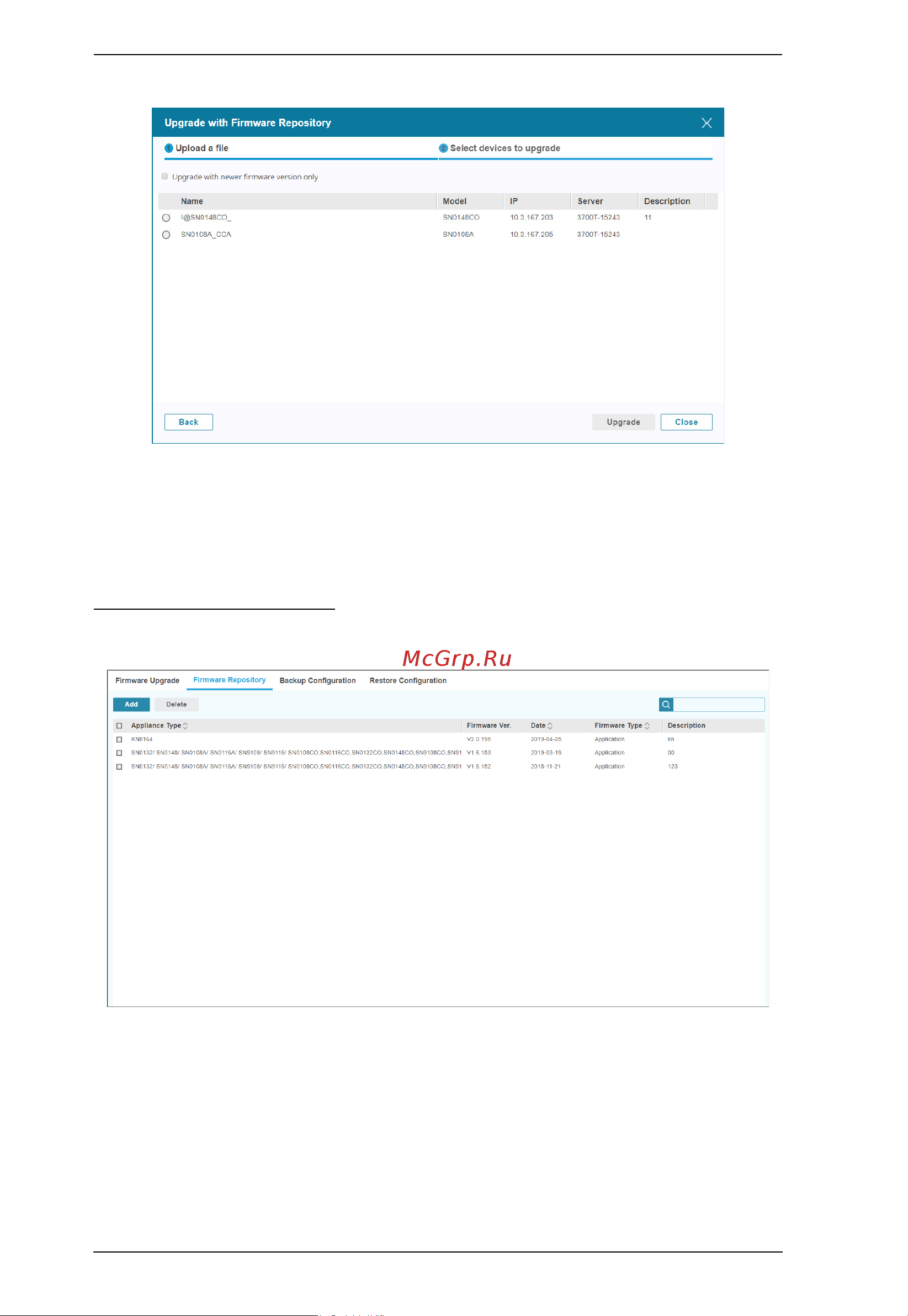

The Firmware Repository tab is shown below:

This page lists all the firmware upgrade files stored on the CC2000 – showing

you at a glance the specific information about each of them.

By making the latest firmware upgrade files available for distribution from this

single location, you can easily perform upgrades from within the CC2000, and

ensure that all the devices on your installation are operating at the same and

most up-to-date firmware level.
