Chapter 5. Device Management

131

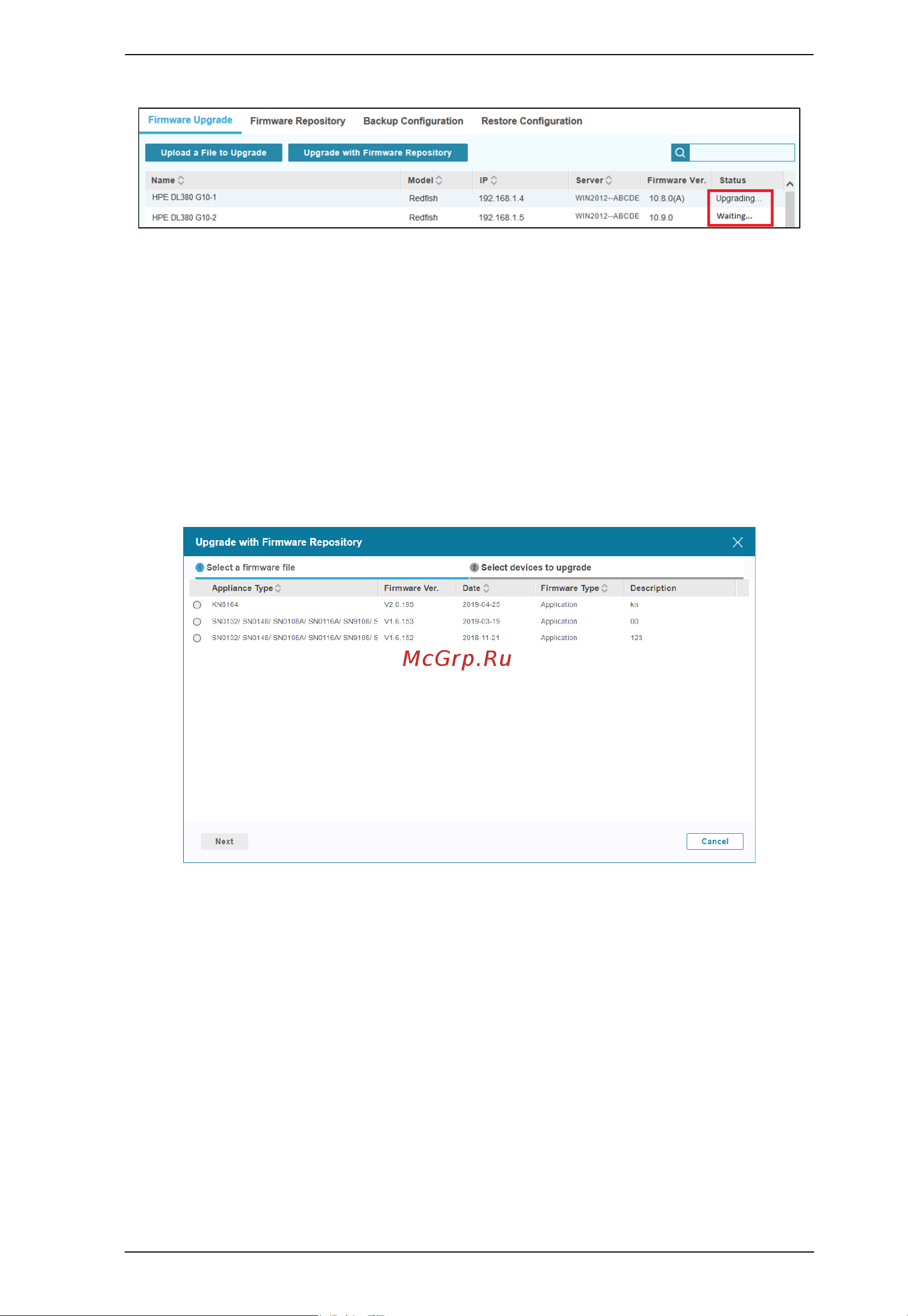

Upgrade with Firmware Repository

One of the ways to upgrade a device is Upgrade with Firmware Repository.

Follow the steps below to upgrade this way:

1. Identify which device you need to upgrade and make sure the upgrade file

is in the firmware repository. Refer to Firmware Repository on page 132

on how to upload firmware into firmware repository.

2. Click Upgrade with Firmware Repository, a window will pop up.

3. Select one of the firmware files and click Next.
