CC2000 User Manual
114
SNViewer

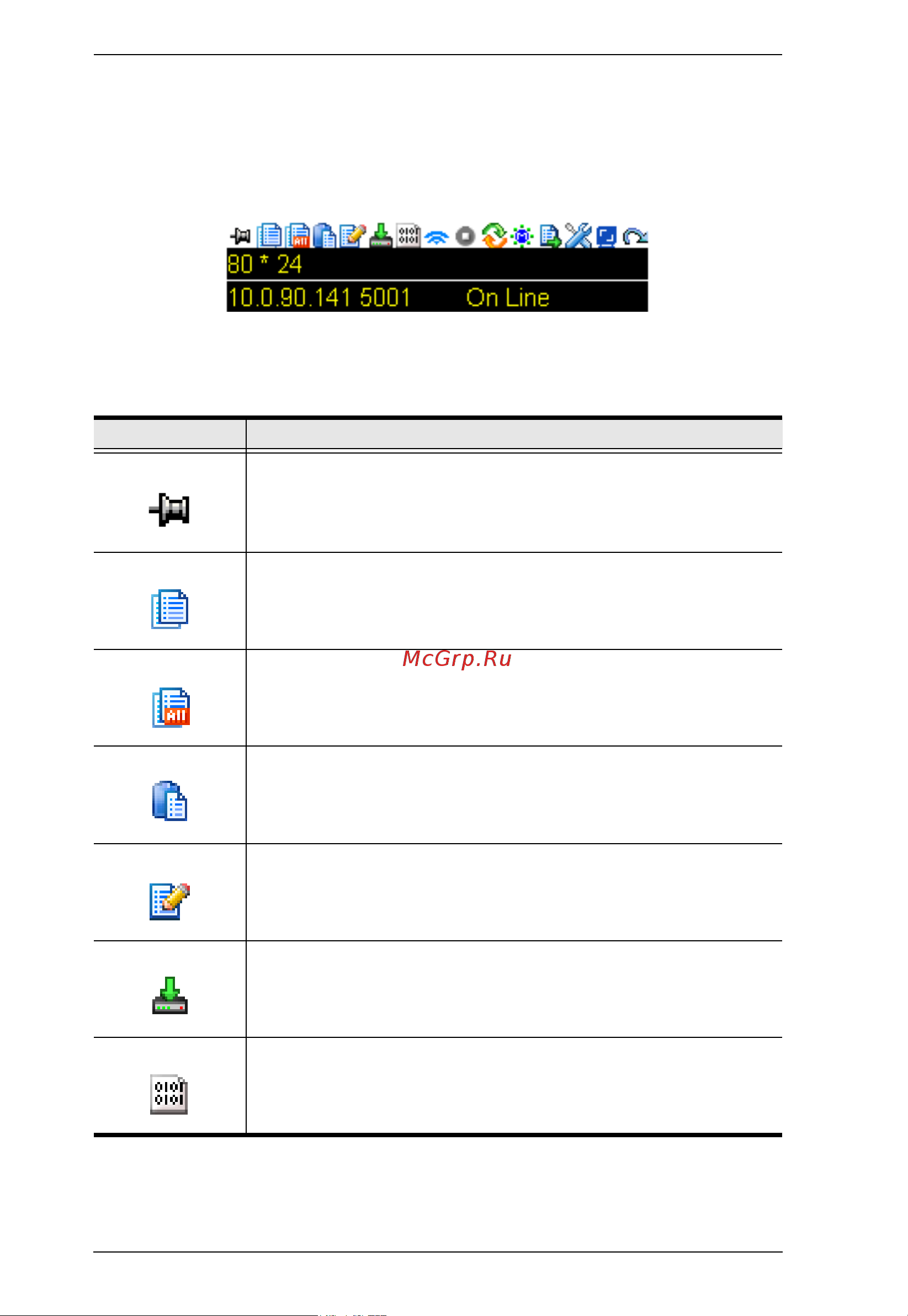

The SNViewer provides a Control Panel that is hidden at the center top of the
screen, and becomes visible when your mouse moves over it. The panel
consists of three rows: an icon row at the top, and two text rows below it:
Control Panel Functions
The Control Panel functions are described below and in the following sections:
Icon Function
This is a toggle. Click to make the Control Panel appear Always On
Top
–
i.e., always displays on top of the SNViewer screen. Click
again to have it display in Auto Hide mode
–
allowing it to only
appear when the mouse is moved over it.
Use this to copy the selected text on the screen.
Use this to copy all text that is displayed on the screen.
Use this to paste the copied text.
Use this icon to toggle Logging on / Logging off. This starts a log file
of characters sent from the serial device to the SNViewer. You must
first create and import a text based log file (See the SN device
manual for more information).
Use this to browse for data files to import (See the SN device
manual for more information).
Use this to change the page encoding (See the SN device manual
for more information).
