CC2000 User Manual
154
Note: 1. The differences between Super Administrators and System
Administrators are as follows:
Super Administrators are authorized for all roles automatically, and
includes access to all devices, ports, and outlets. The roles are fixed and
cannot be changed.
2. Auditor:
Auditors can access all tabs and pages, but is restricted to View Only
rights.
For Logs, Auditors can export and print logs in addition to viewing them,
but cannot change any settings.
For Preferences, Auditors can change his/her Web Options and
Password.
Custom User Types
You can create custom user types with any combination of roles assigned to
them to suit your requirements.
Add User Type
Follow the steps below to create a custom user type:

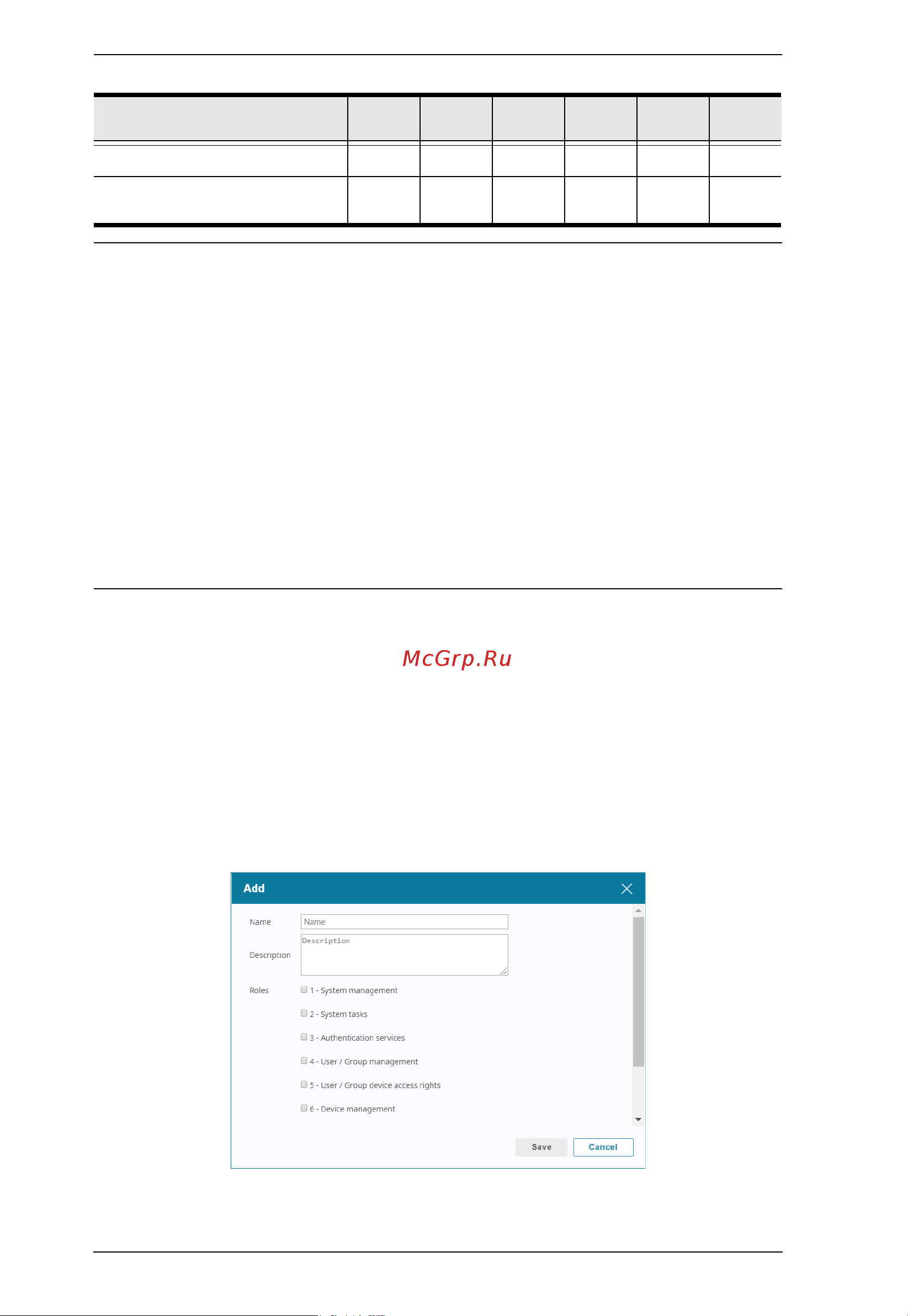

1. Click Add for a pop-up window as shown:
View logs / reports
√√√√
Users can change their own
passwords
√√√√√√
Assigned Roles
Super
Admin
System
Admin
User
Admin
Device
Admin
User Auditor
