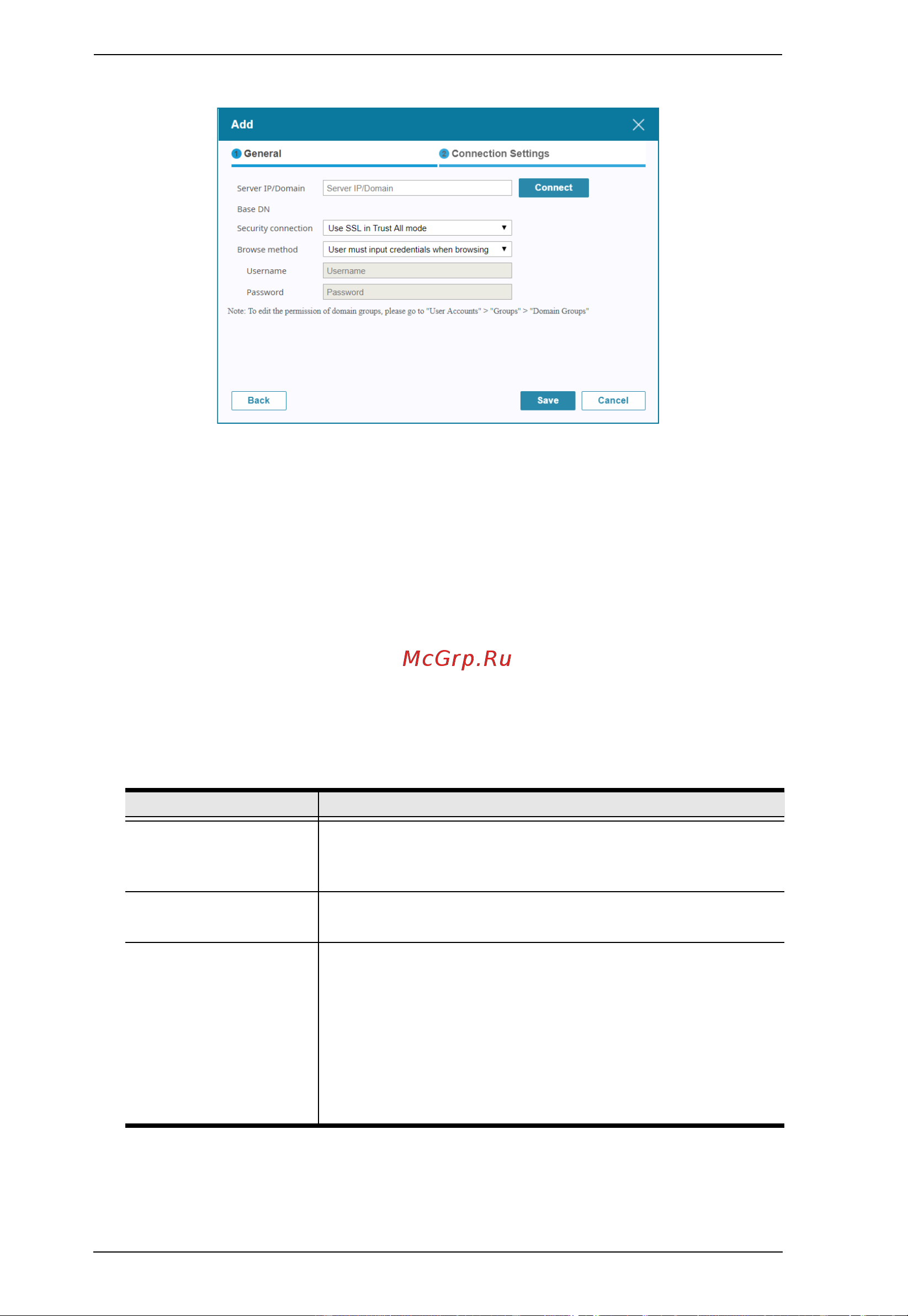

CC2000 User Manual
164
4. Enter information on the page. Refer to Server Information on page 164
for the information fields.
5. Enter the server IP/domain and click Connect to test the connection.
6. Select the Security connection and Browse method using the
corresponding drop-down menu. Click Save.
Server Information
An explanation of the information required for each of the servers is provided,
below.
1. Active Directory
Heading Information
Server IP/Domain Get the information for these fields from the Active Direc-
tory administrator. For example settings see Active Direc-
tory Settings Example, page 303.
Security connection Use the drop-down menu to choose whether or not to use
SSL in Trust All mode.
Browse Method
Select Browse with user credentials to allow the user to
browse the Active Directory using credentials
configured on the server. If this is selected the user
doesn’t have to input his credentials each time he
browses.
Select User must input credentials when browsing to
have the user input his credentials each time he
browses the Active Directory.
