CC2000 User Manual
116
WebClient Viewer
The WebClient Viewer provides access to the devices’ ports directly on the
browser without requiring Windows or Java Client app installation. Its control
panel is explained below:
Note: To launch WebClient Viewer when clicking KVM Viewer, see
page 140.

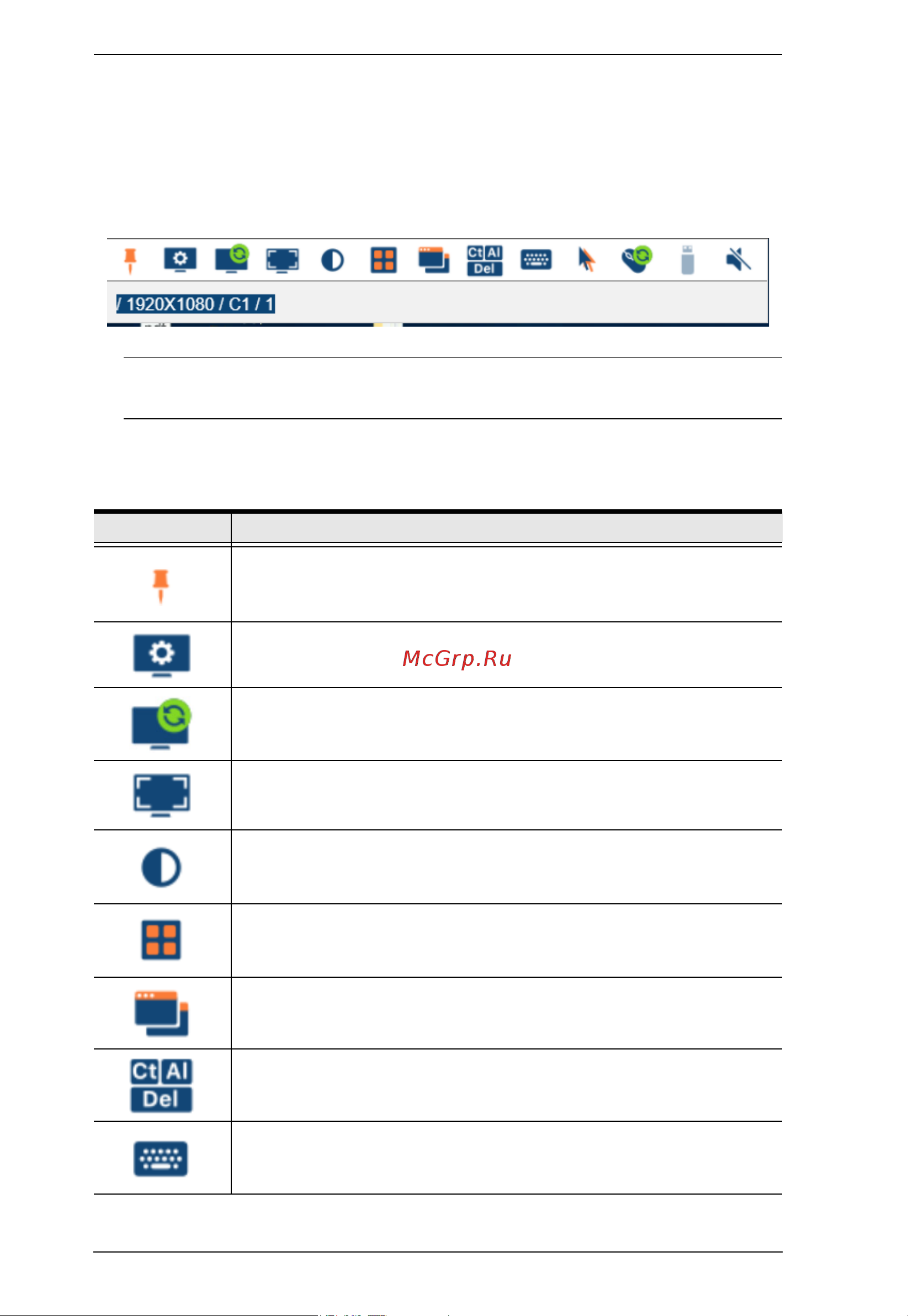

Control Panel Functions
Icon Function
This is a toggle. Click to pin the Control Panel – i.e., it always
displays on top of other screen elements. Click again to have it
display normally.
Click to adjust the video settings (refer to the respective CC / KVM
manual for details).
Click to perform a video autosync operation.
Click for a Screen Mode drop-down menu. Choose between Full
Screen Mode and Fit to Window.
Click to toggle the remote display between color and grayscale
views.
Under an access port, click to invoke Panel Array Mode (refer to the
respective CC / KVM manual for details).
Click for a drop-down menu of the available online port(s) and click to
select the port you wish to connect to.
Click to send a Ctrl+Alt+Del signal to the remote system.
Click to access an on-screen English keyboard (refer to the
respective CC / KVM manual for details).
