CC2000 User Manual
292
Offline Upgrade
An Offline upgrade can be performed either by the dealer/distributor, or the
end user client. The advantage of this type of upgrade is that the client doesn’t
give up the use of his key. All he needs to do is e-mail the key information data
file to the dealer/distributor and receive a key upgrade file in return.
Preliminary Steps
To perform the upgrade, the first step that the client must perform is to create
a Key Information Data File, as follows:

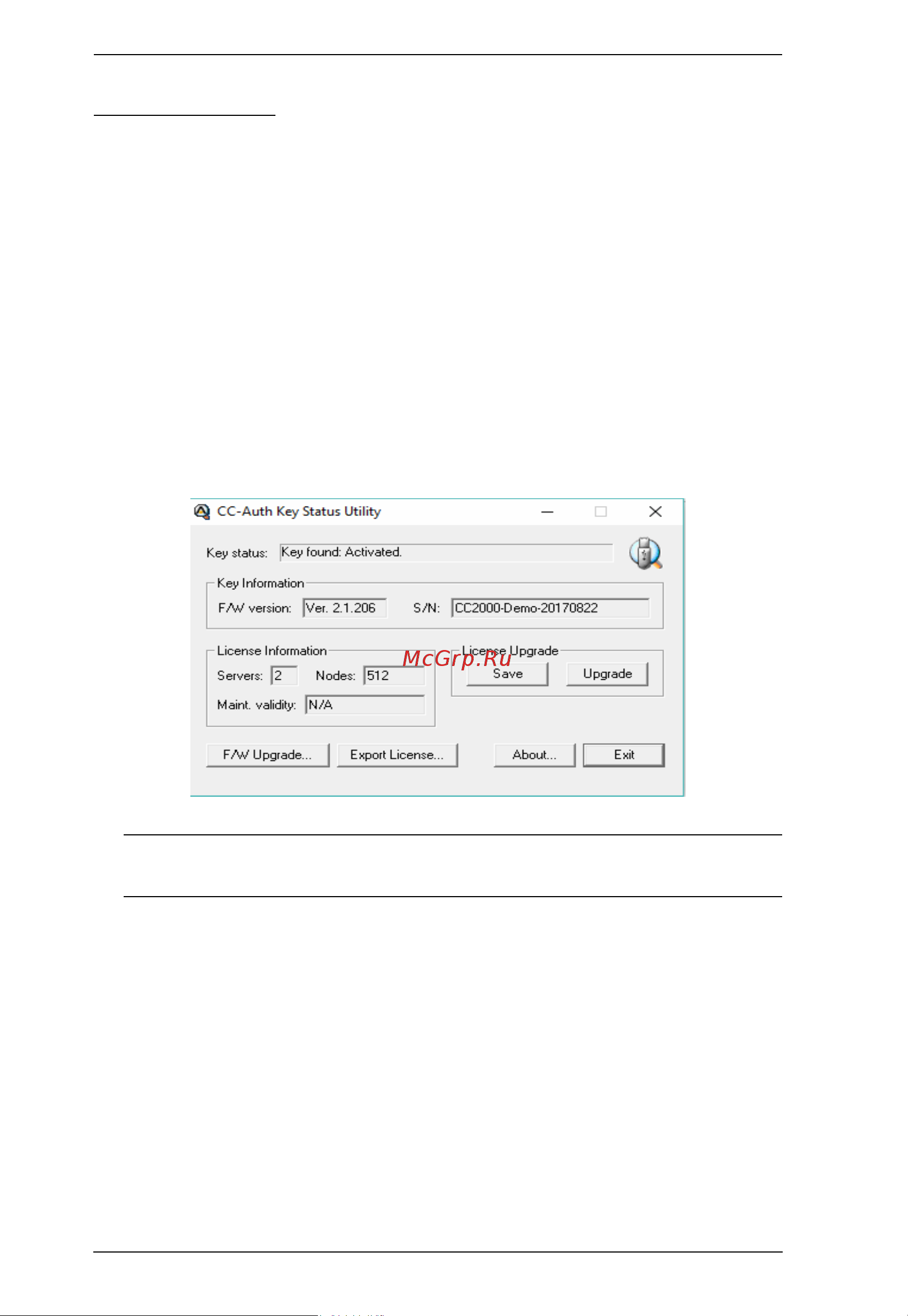

1. With the authentication key plugged in, run Key Status Utility
(CCAuthKeyStatus.exe).
2. In the License Upgrade panel of the dialog box that comes up, click Save
to create a Key Information Data File (KeyUpload.dat).
Note: The Key Information Data File is created in the same directory that
the Key Status Utility resides in.
After the Key Information Data File is created, the client sends it to the
dealer/distributor.
