CC2000 User Manual
130
5. A confirmation message will pop up, click Ye s to upgrade the device’s
firmware.
Upgrade Redfish-enabled Device
If you have a Redfish-enabled device, upgrade it using Upload a File to
Upgrade. Follow the steps below to upgrade this way:
1. Identify which Redfish-enabled device you need to upgrade and download
its firmware from the ATEN website.

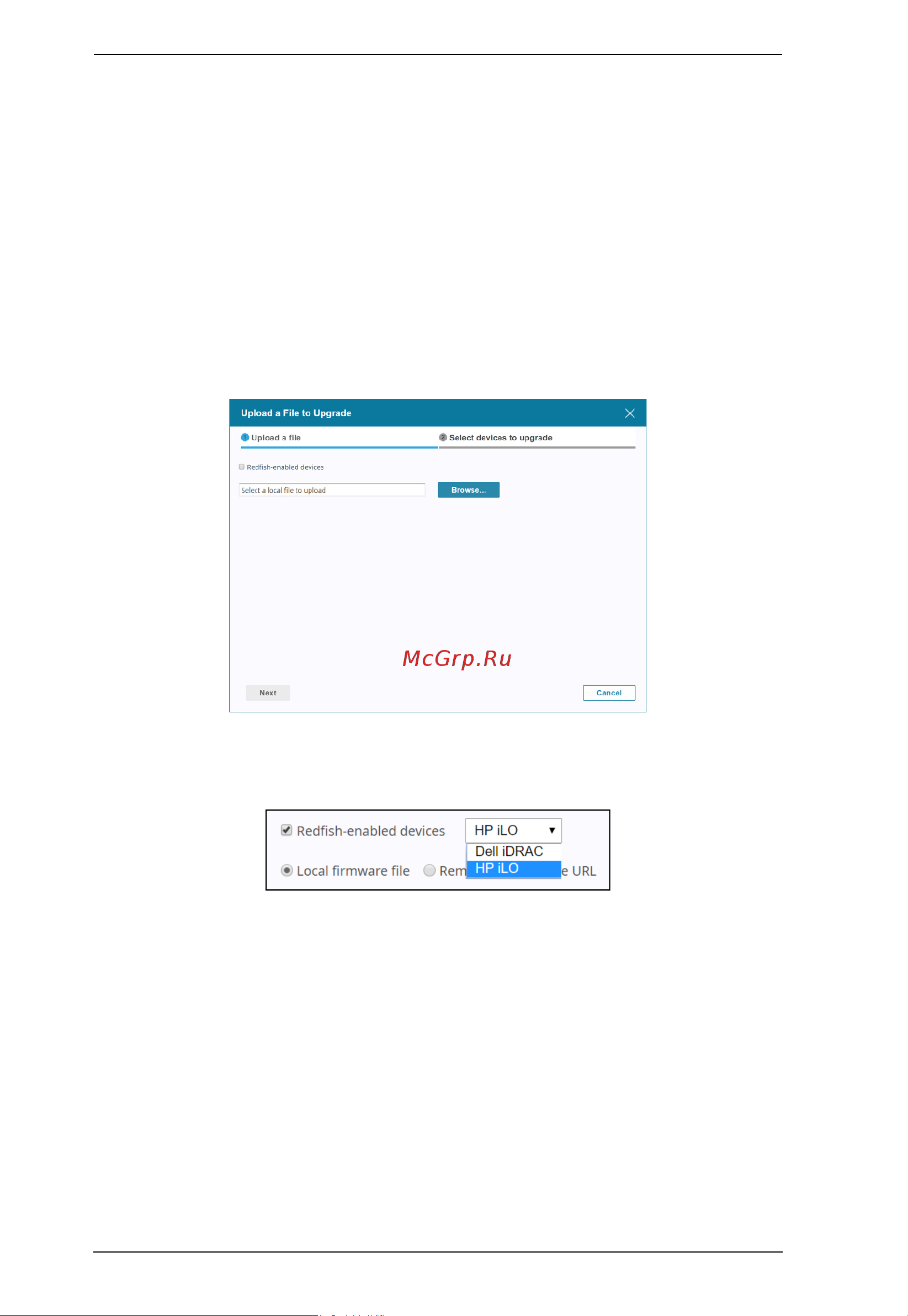

2. Click Upload a File to Upgrade, a window will pop up.
3. Check Redfish-enabled devices. A drop-down menu will appear to allow
you to select the type of Redfish-enabled device.
4. Select the Redfish device type, click Browse to select the firmware file
and click Next.
5. The devices belonging to this Redfish device type will appear in the list.
Check the device(s) you wish to upgrade and click Upgrade.
While upgrading, the status column of the device(s) currently upgrading
will show “Upgrading...” and the device(s) waiting will show “Waiting...”
