CC2000 User Manual

Primary unit is back online. This feature ensures that you are able to access all

your devices whenever required.

With the help of the CC2000, users can promptly handle issues and fix

problems efficiently. As a secure and centralized system management solution,

the CC2000 software meets the requirements of IT administrators in

centralized management and easy monitoring, putting them in complete

control of their data centers, server rooms and branch offices wherever they are

deployed.

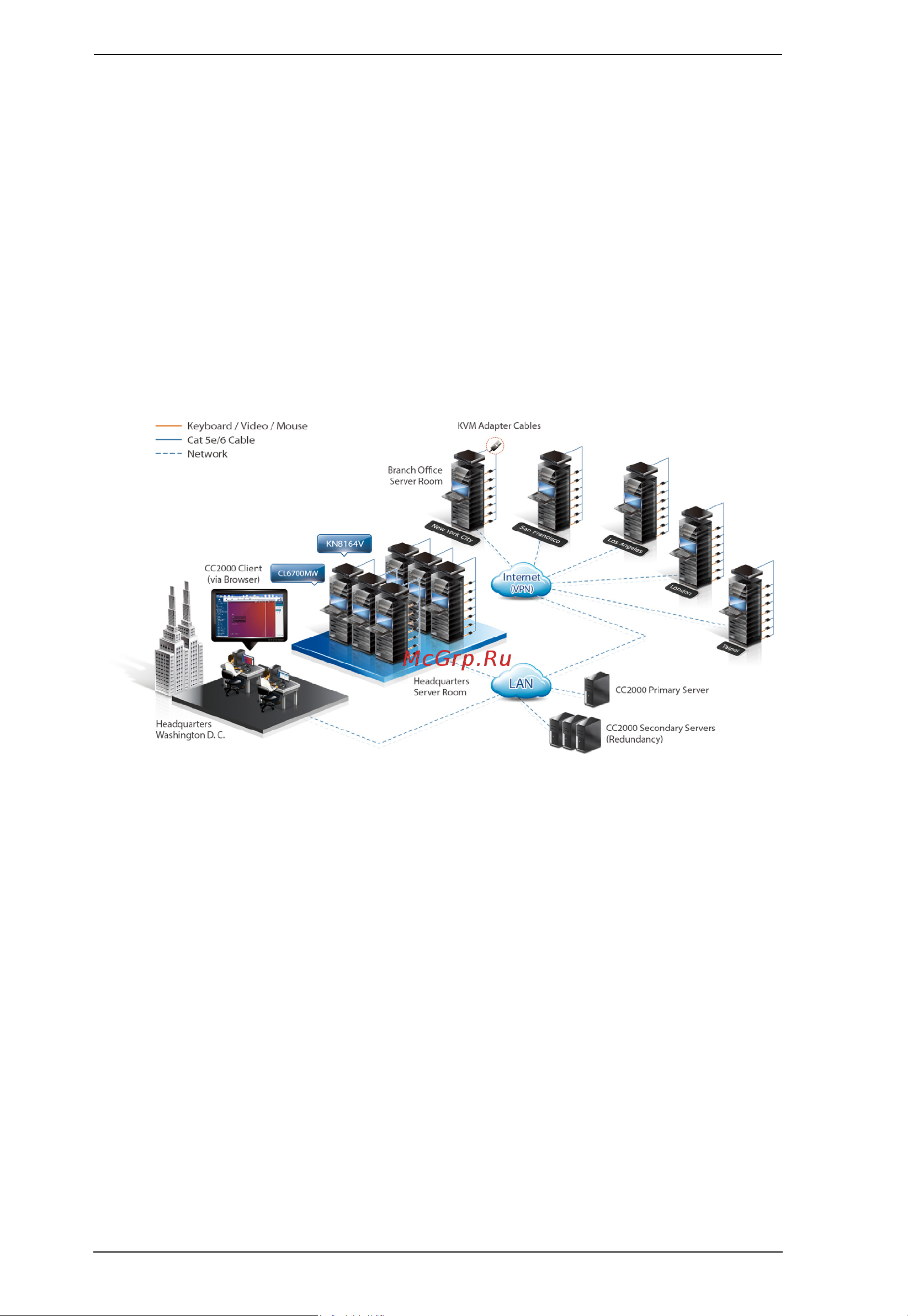

Deployment Example:
