CC2000 User Manual
152
Unblock User
A user may be blocked out due to exceeding the number of login attempts.
To unblock user(s), check to select the blocked user(s) and click Unblock.
A confirmation message will pop up, click Yes to unblock the user(s).
Note: 1. You can unblock more than one user by checking as many names as
you require. You can check all accounts by checking the box at the
top of the column.
2. If all users – including the System Administrator – gets blocked, the
System Administrator can use the CC2000Pro Utility to restore his
account and then unblock the locked out users. See Restore,
page 279.
Delete User
To delete user(s), check to select the user(s) and click Delete.
A confirmation message will pop up, click Yes to delete the user(s).
Reactivate Disabled Users

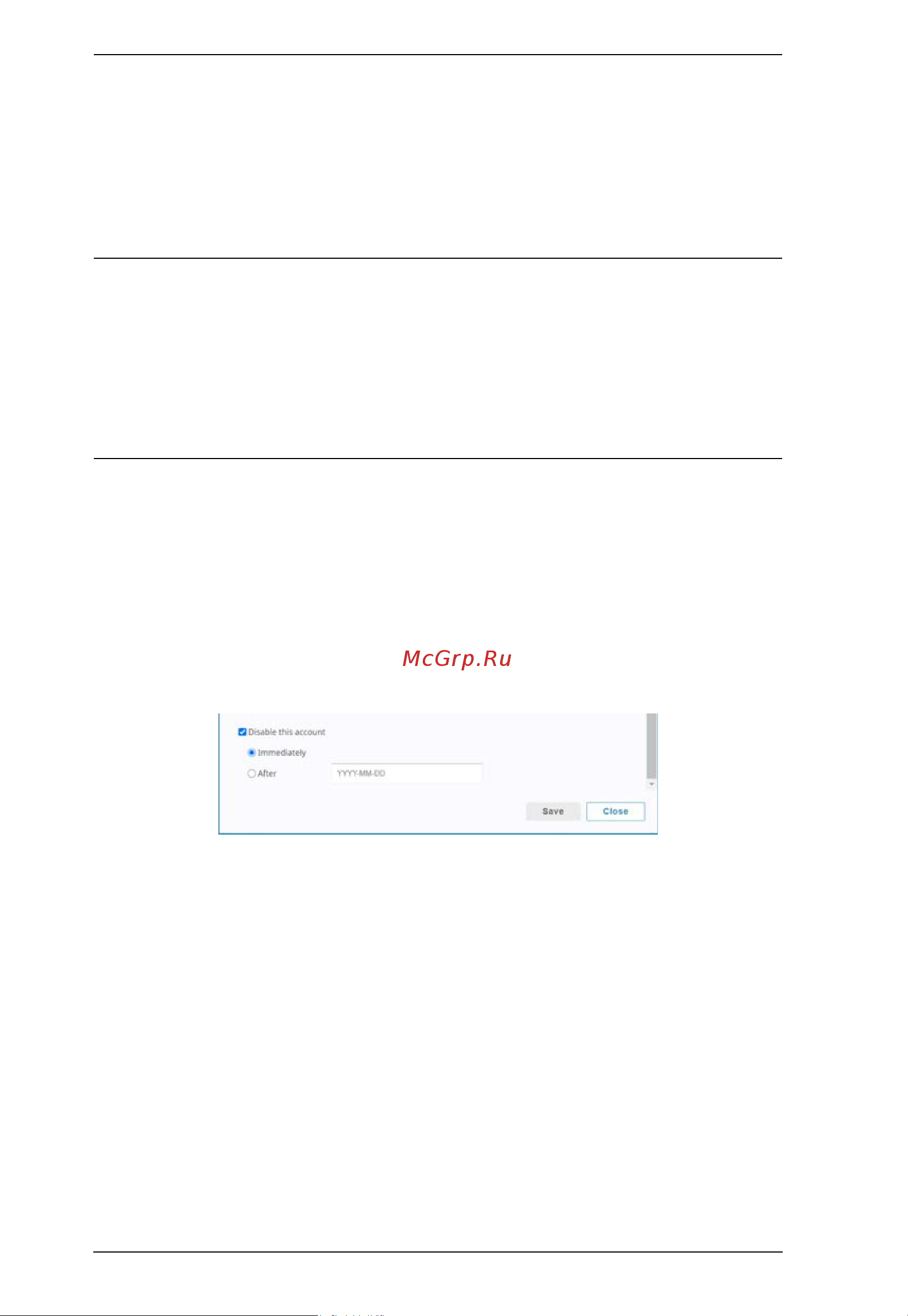

When you wish to reactivate a disabled user, go to bottom of the properties
page. An example is shown:
Uncheck the “Disable this account” option and click Save.
An Operation succeeded message will be shown on top of the page.
