Chapter 7. System
201
When devices are added to the CC2000 management system, their
configurations are locked by default. Although having configuration
information stored on the CC2000, they cannot be managed.
Locked ports can be unlocked either by selecting a physical port and unlocking
it by clicking the Unlock button (see Locking / Unlocking Devices, page 107),
or by making the port part of an aggregate device (see Adding an Aggregate
Device, page 84).
If all of the license nodes are in use, only after a currently unlocked port is
locked, or after an aggregate device is deleted – thereby freeing up the license
it was using – can a locked port (or new aggregate device) be unlocked and
managed by the CC2000 management system.
License Conflict

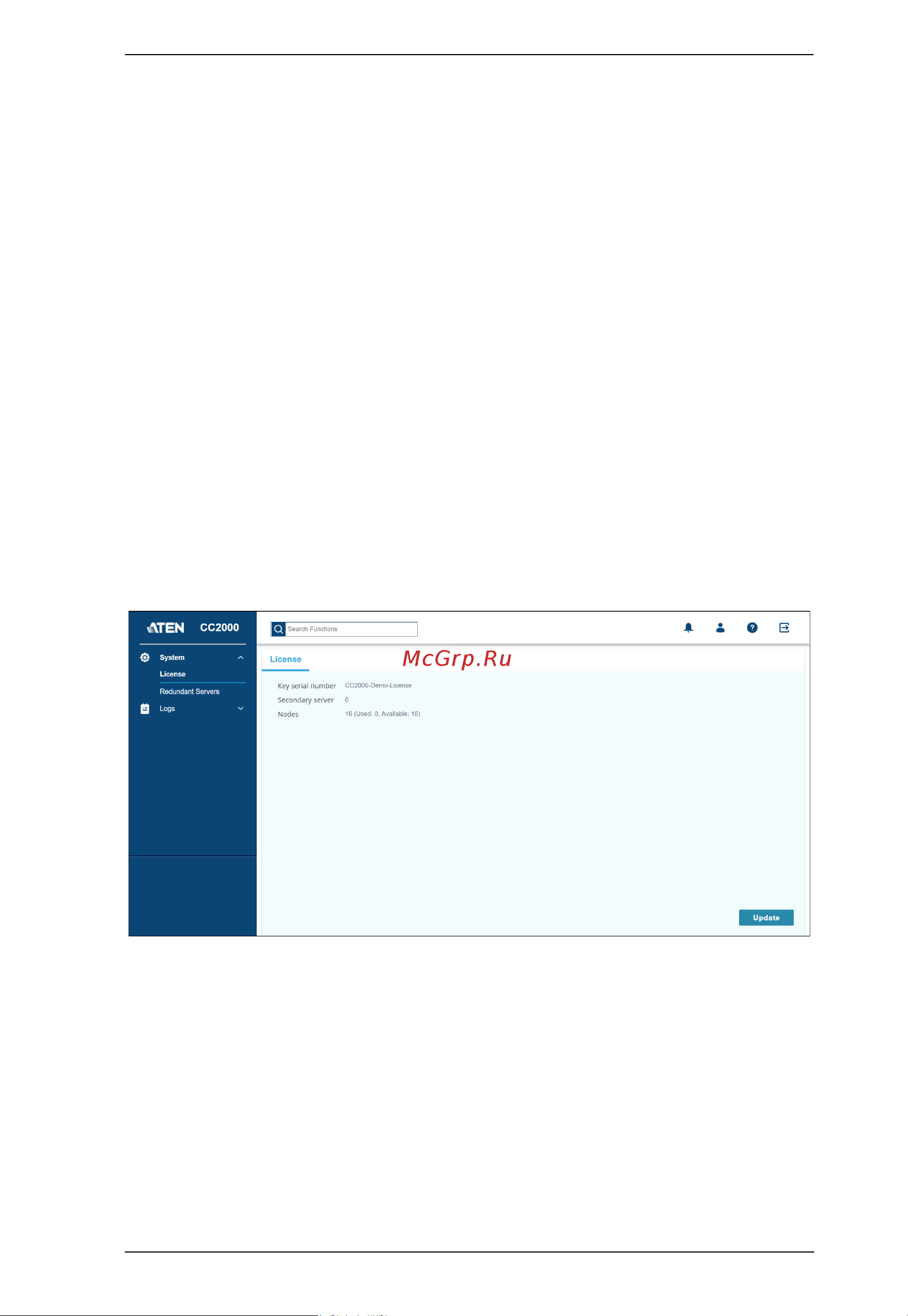

When there are two Primaries on the same network segment that have been
upgraded with the same license key, a license conflict occurs. The Browser
GUI of the CC2000 server that was the second one to be installed
opens a page that looks similar to the one below:
To confirm that a conflict has occurred, click the Logs tab. The following
sentence is displayed in the log file: A license violation has been detected at
primary server. Remote CC server (IP: [the conflicting servers’ IP]).
When this occurs, there are a number of ways to resolve the conflict:
1. On one of the two Primaries: either shut it down, stop service, disconnect
it from the network, or uninstall the CC2000 entirely.
