CC2000 User Manual
204

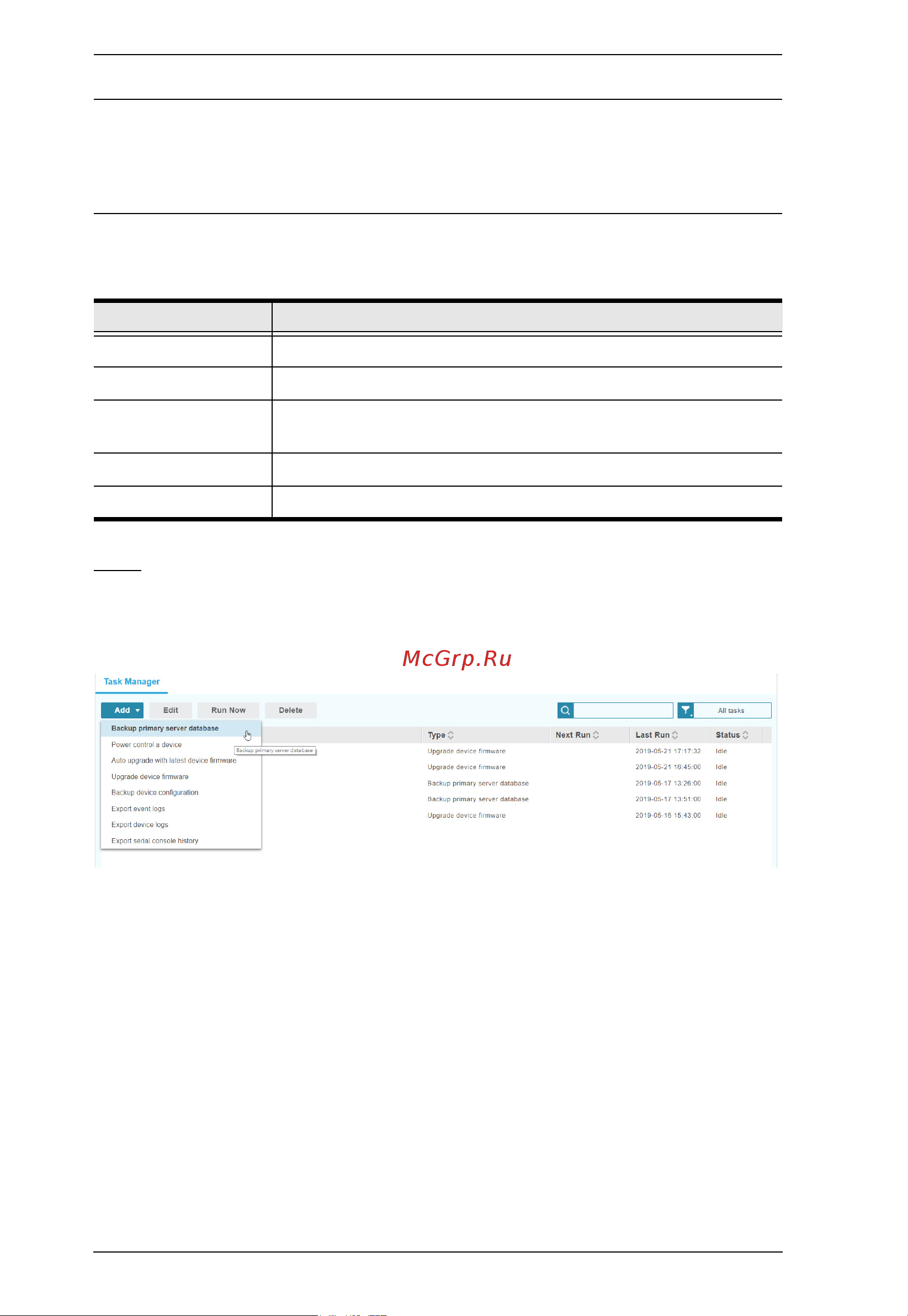

Note: This figure depicts a page for a primary server. The page for a secondary
server is similar, except that it has a pre-configured default entry,
Replicate Database, that replicates the database of the Primary it is
connected to (see Replicate Database, page 219).
The Task Manager table lists all the tasks that have been configured. The
meaning of each heading is explained in the table below:
Add
To add a task, do the following:
1. Click Add, a list of task choices is shown:
2. Click to select the task you want to add. A pop-up window appears
containing contents based on the task selected.
While each task is different, most of the procedures involved in setting them
are similar. The following examples take you through the various task
procedures you may encounter.
Heading Explanation
Name The name you gave to the task during configuration.
Type The type of task configured.
Next Run If the task is scheduled to run at a specified time, the time of
execution appears here.
Last Run Indicates the last time that the task ran.
Status Indicates whether the task is running or is idle.
