CC2000 User Manual
208
2. Choose to turn on or off for the selected device as a whole, or on a port-by-
port basis by clicking and selecting from the Category drop-down menu.
3. Check the checkbox of the target devices or ports you want to control, or
check the checkbox in front of Name at the top of the column to select all.
4. Select whether to turn the ports On or Off in the Operation column.
5. Click Next, and make your schedule choices in the Schedule page.
Note: Refer to Backup Primary Server Database on page 205 for schedule
setting procedures.
6. Click Add to finish setting up the task.

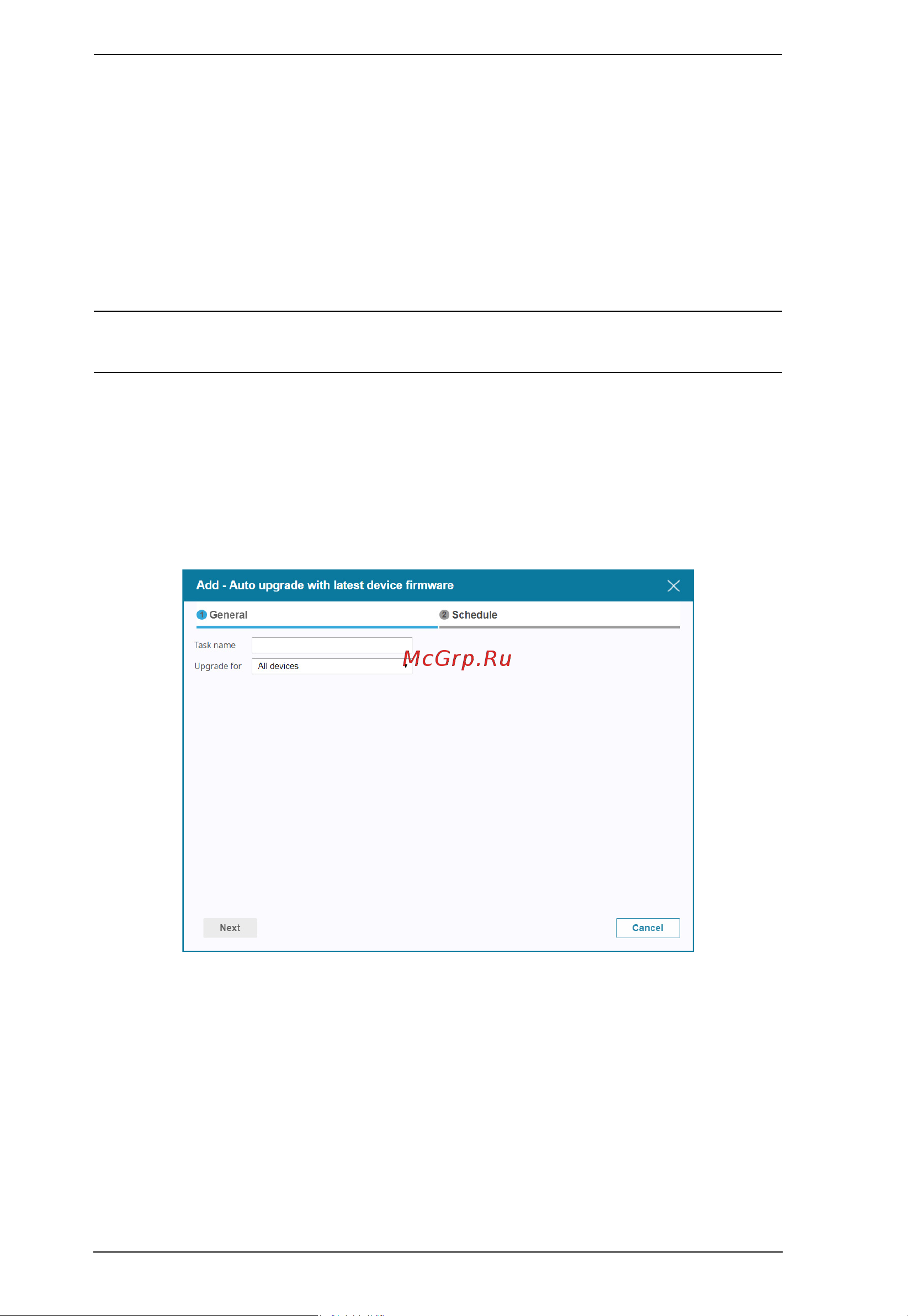

Auto upgrade with the latest device firmware
This task allows you to schedule auto device firmware upgrade with the newest
available firmware.
1. Provide a name for the task.
2. Use the drop-down menu Upgrade for to choose which appliances will
receive the auto upgrade from one of the three options, All devices,
Selected device type, and Selected device.
3. If you choose All devices (recommended), all the devices are
automatically selected for the upgrade.
If you choose Selected device type, use the drop-down menu to select the
device type you want to upgrade.
