Chapter 2. Server Installation and Utilities

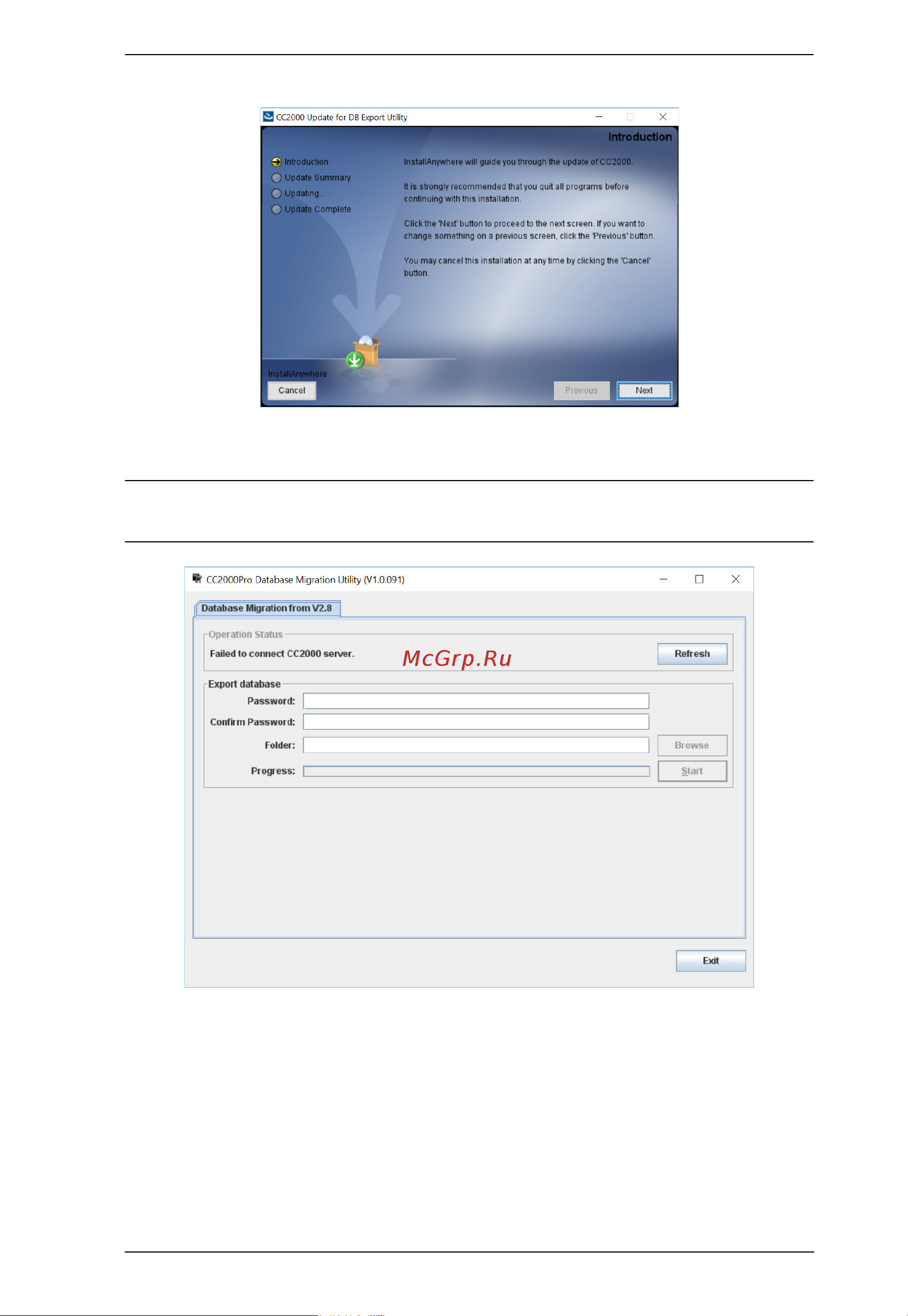

3. Launch the DB Migration Utility.

Note: Make sure CC2000 v2.8 is running, with the Operation Status appear

as connected, click Refresh to refresh the status.

4. Enter the password, repeat the password and click Browse to select a

destination folder.

5. Click Start to begin the export process. A database backup file (*.cbk) and

a log file (*.log) will appear in the destination folder once the process is

complete.
