Chapter 3. Browser Operation
43
2. Normal priority messages will appear with a notification in the
Notification icon as shown below:
Delete Notification
To delete a notification(s), check the checkbox(es) of the notification(s) and
click Delete. A confirmation message will be shown, click Yes to confirm.
Sent
Clicking this folder allows you to edit and delete sent notifications.

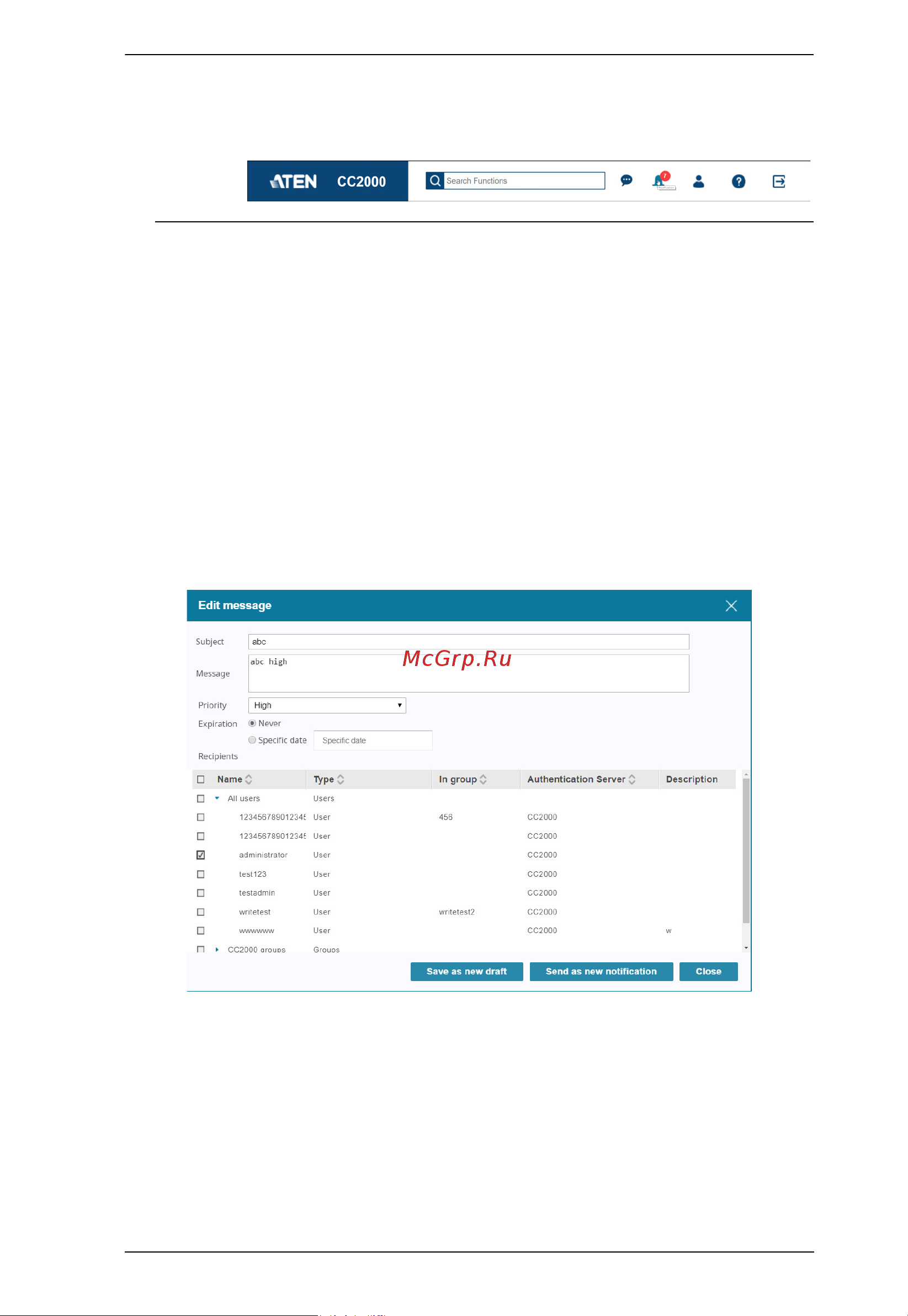

Edit Sent Notification
Follow the steps below to edit a notification:
1. Check the checkbox of the notification and click Edit.
2. Make your desired changes and click Save as new draft or Send as new
notification.
Delete Sent Notification
To delete a sent notification(s), check the checkbox(es) and click Delete. A
confirmation message will be shown, click Yes to confirm.
