Chapter 5. Device Management

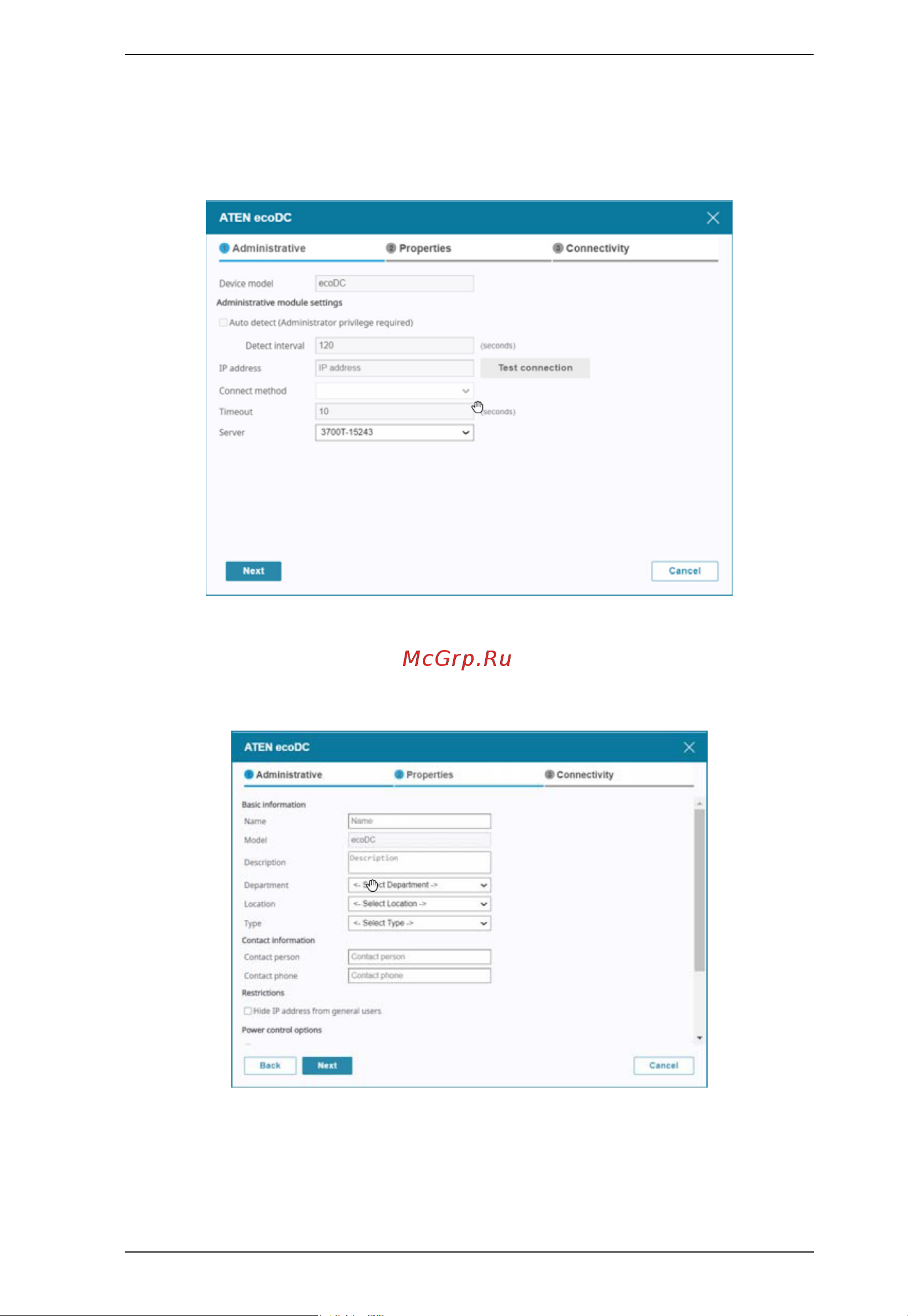

Adding an ATEN ecoDC

This item refers to adding an ATEN ecoDC to the CC2000 management

system:

To add an ATEN ecoDC, do the following:

1. Select the Server using its drop-down menu and click Next. The Properties

page appears.
