Appendix B

117

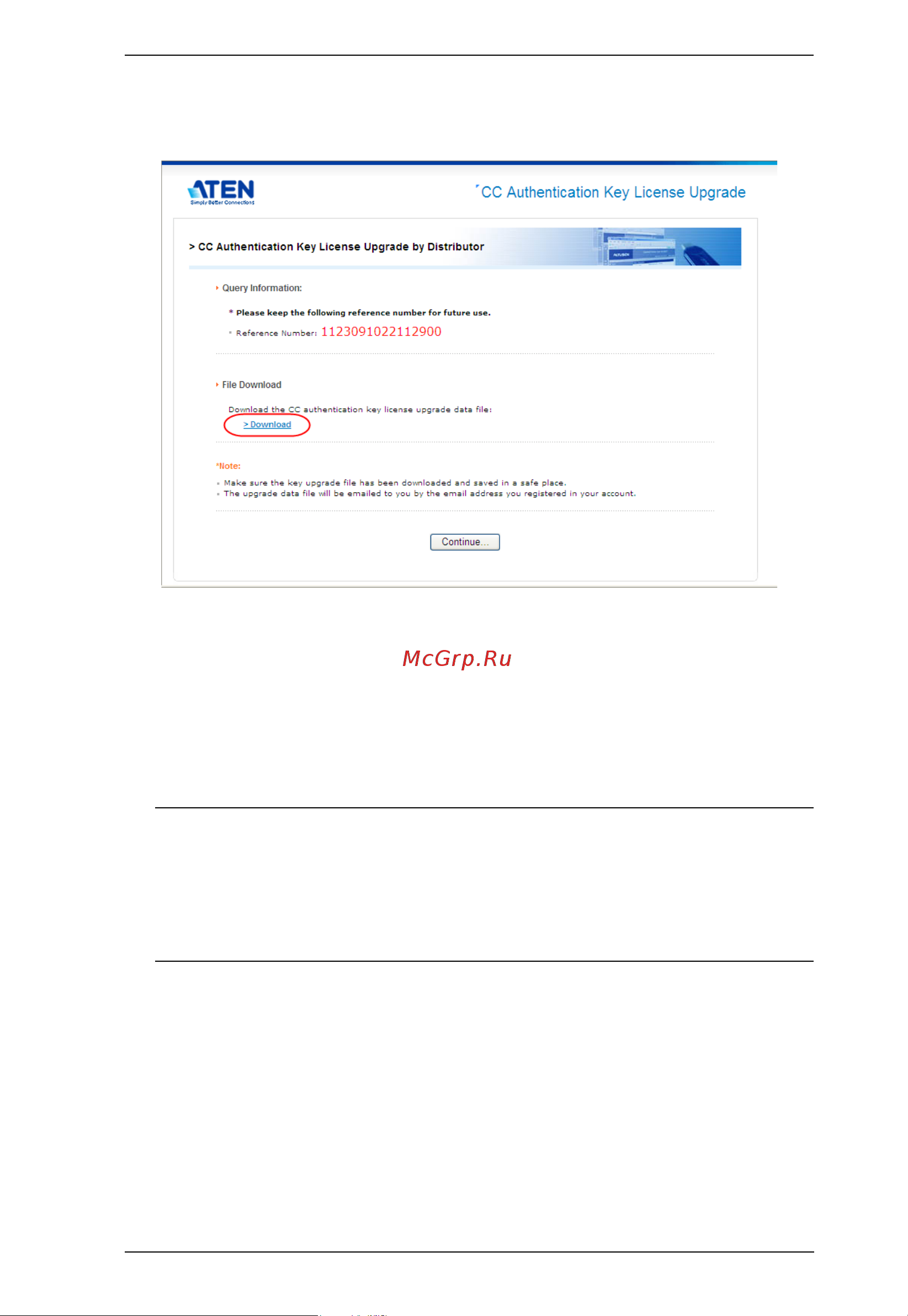

8. In the screen that appears next, click Download to download the key

license upgrade data file (KeyUpgrade.dat).

9. When the browser asks what to do with the key upgrade file, select Save to

disk. After the file is saved to disk, click Continue to go on.

10. In the confirmation popup that appears click Yes. A summary page

confirming the order appears.

11. Click Logout to exit.

Note: 1. If you are upgrading more than one key, you can rename the

KeyUpgrade.dat files to separately recognizable names (keeping

the dat extension).

2. If the client is performing the upgrade, the dealer/distributor

provides the KeyUpgrade.dat file to the client.

12. Run the Key Status Utility again.
