Chapter 9 VLAN
MES-3528 User’s Guide
106
9.11.1 Configure a Port-based VLAN
Select Port Based as the VLAN Type in the Basic Setting > Switch Setup
screen and then click Advanced Application > VLAN from the navigation panel
to display the next screen.

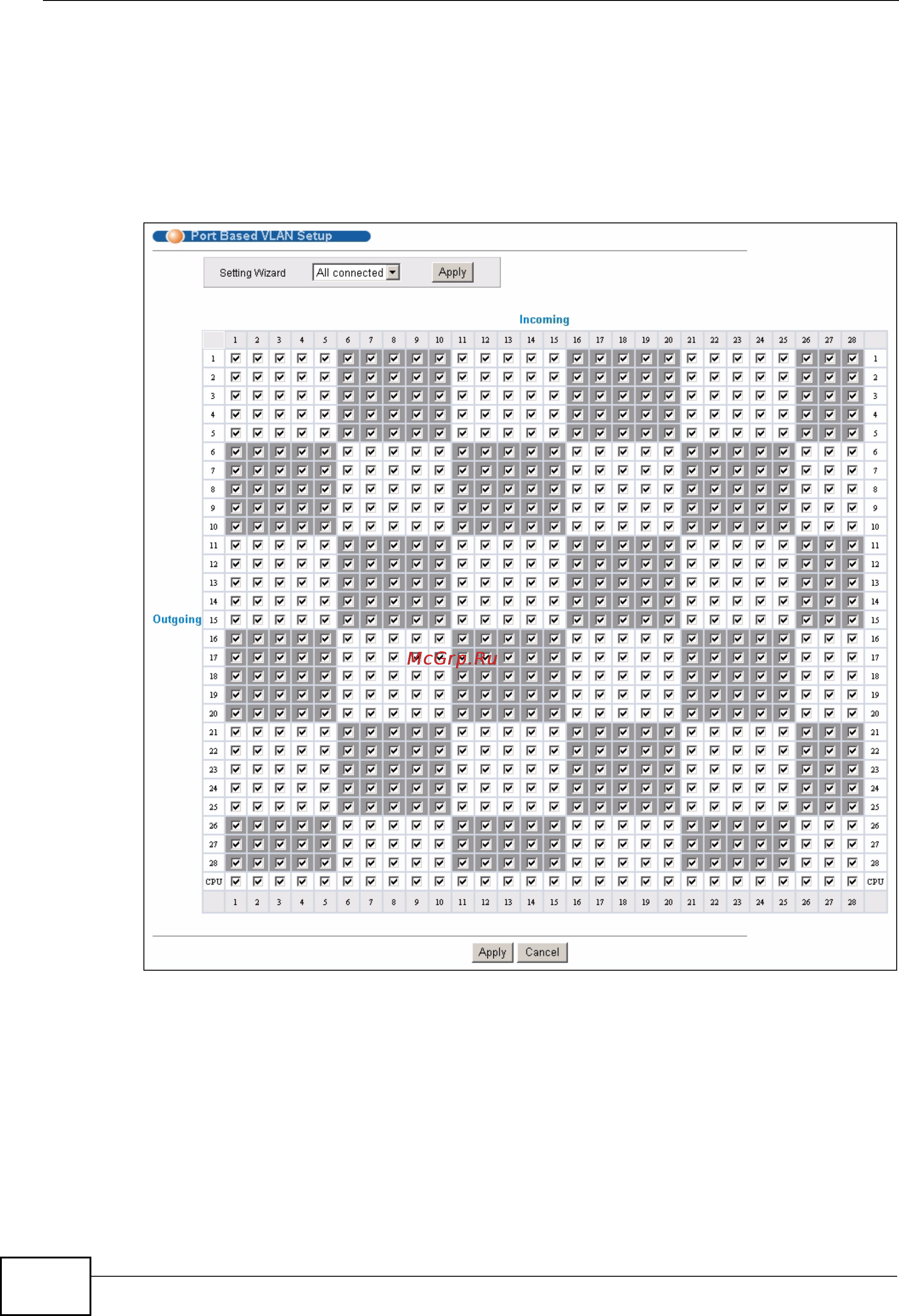

Figure 56 Port Based VLAN Setup (All Connected)
