Chapter 32 Access Control
MES-3528 User’s Guide
294
later). Click Management > Access Control > Service Access Control to view
the screen as shown.

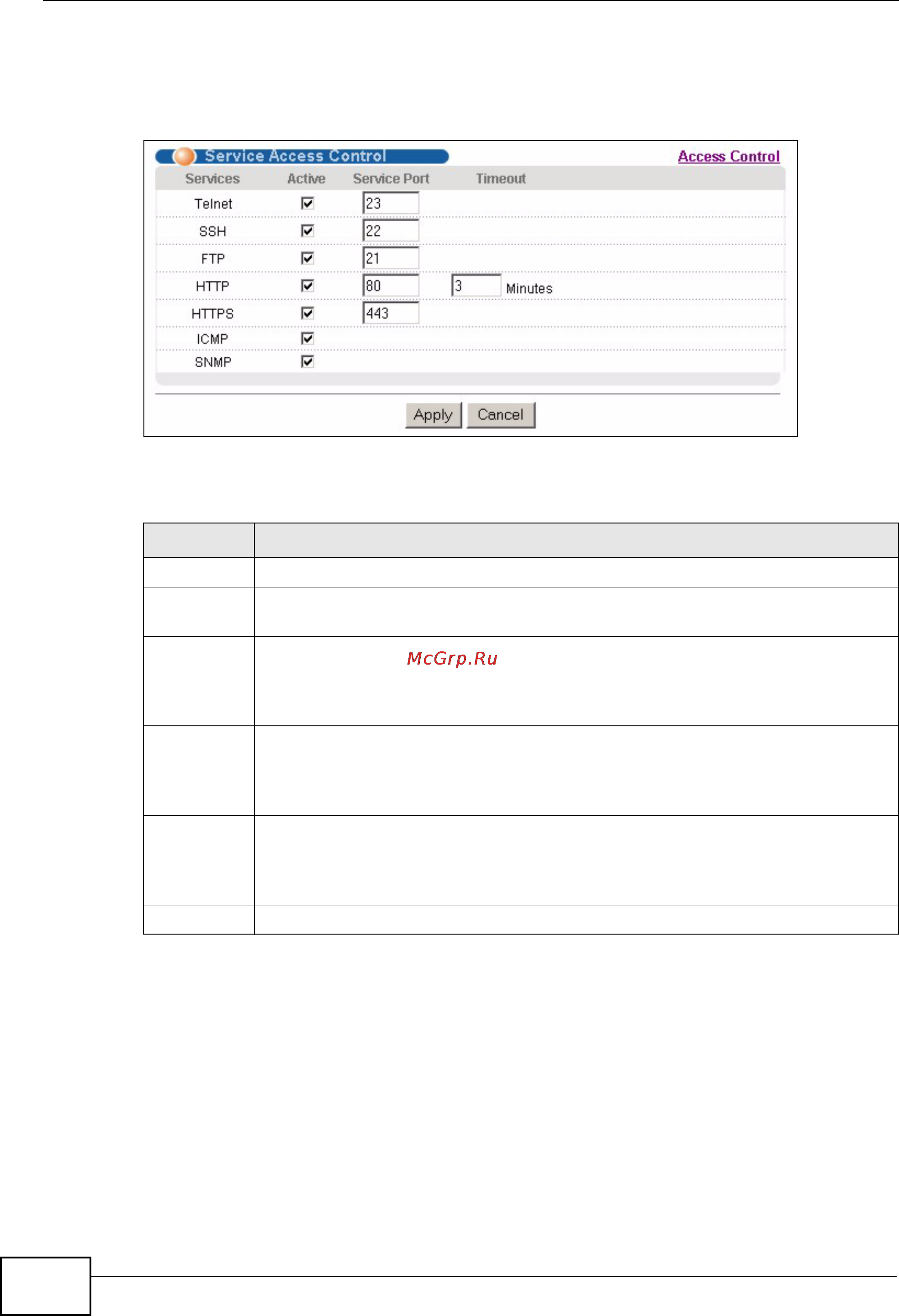

Figure 166 Management > Access Control > Service Access Control
The following table describes the fields in this screen.
32.10 Remote Management
Click Management > Access Control > Remote Management to view the
screen as shown next.
Table 100 Management > Access Control > Service Access Control
LABEL DESCRIPTION
Services Services you may use to access the Switch are listed here.
Active Select this option for the corresponding services that you want to allow to
access the Switch.
Service
Port
For Telnet, SSH, FTP, HTTP or HTTPS services, you may change the default
service port by typing the new port number in the Server Port field. If you
change the default port number then you will have to let people (who wish
to use the service) know the new port number for that service.
Timeout Type how many minutes a management session (via the web configurator)
can be left idle before the session times out. After it times out you have to
log in with your password again. Very long idle timeouts may have security
risks.
Apply Click Apply to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
