Chapter 4 The Web Configurator
MES-3528 User’s Guide
46
In the navigation panel, click a main link to reveal a list of submenu links.
The following table describes the links in the navigation panel.

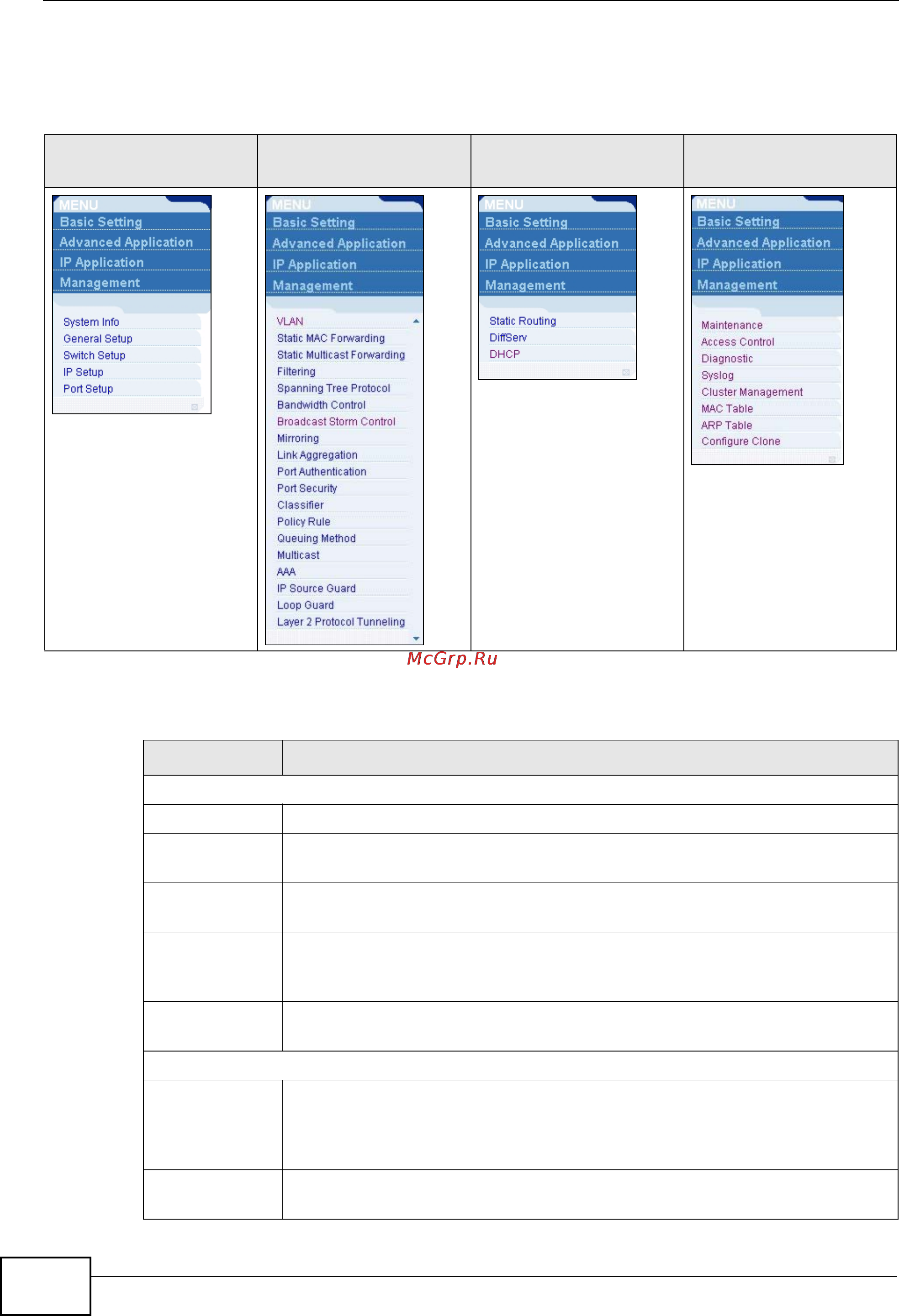

Table 3 Navigation Panel Sub-links Overview
BASIC SETTING
ADVANCED
APPLICATION
IP APPLICATION MANAGEMENT
Table 4 Navigation Panel Links
LINK DESCRIPTION
Basic Settings
System Info This link takes you to a screen that displays general system information.
General Setup This link takes you to a screen where you can configure general
identification information about the Switch.
Switch Setup This link takes you to a screen where you can set up global Switch
parameters such as VLAN type, GARP and priority queues.
IP Setup This link takes you to a screen where you can configure the IP address,
subnet mask (necessary for Switch management) and DNS (domain
name server) and set up to 64 IP routing domains.
Port Setup This link takes you to a screen where you can configure settings for
individual Switch ports.
Advanced Application
VLAN This link takes you to screens where you can configure port-based or
802.1Q VLAN (depending on what you configured in the Switch Setup
menu). You can also configure a protocol based VLAN or a subnet based
VLAN in these screens.
Static MAC
Forwarding
This link takes you to a screen where you can configure static MAC
addresses for a port. These static MAC addresses do not age out.
