Zyxel MES-3528 [244/354] Layer 2 protocol tunneling mode
![Zyxel MES-3528 [244/354] Layer 2 protocol tunneling mode](/views2/1010719/page244/bgf4.png)
Chapter 27 Layer 2 Protocol Tunneling
MES-3528 User’s Guide
244
2 for PAgP (Port Aggregation Protocol), LACP or UDLD (UniDirectional Link
Detection).

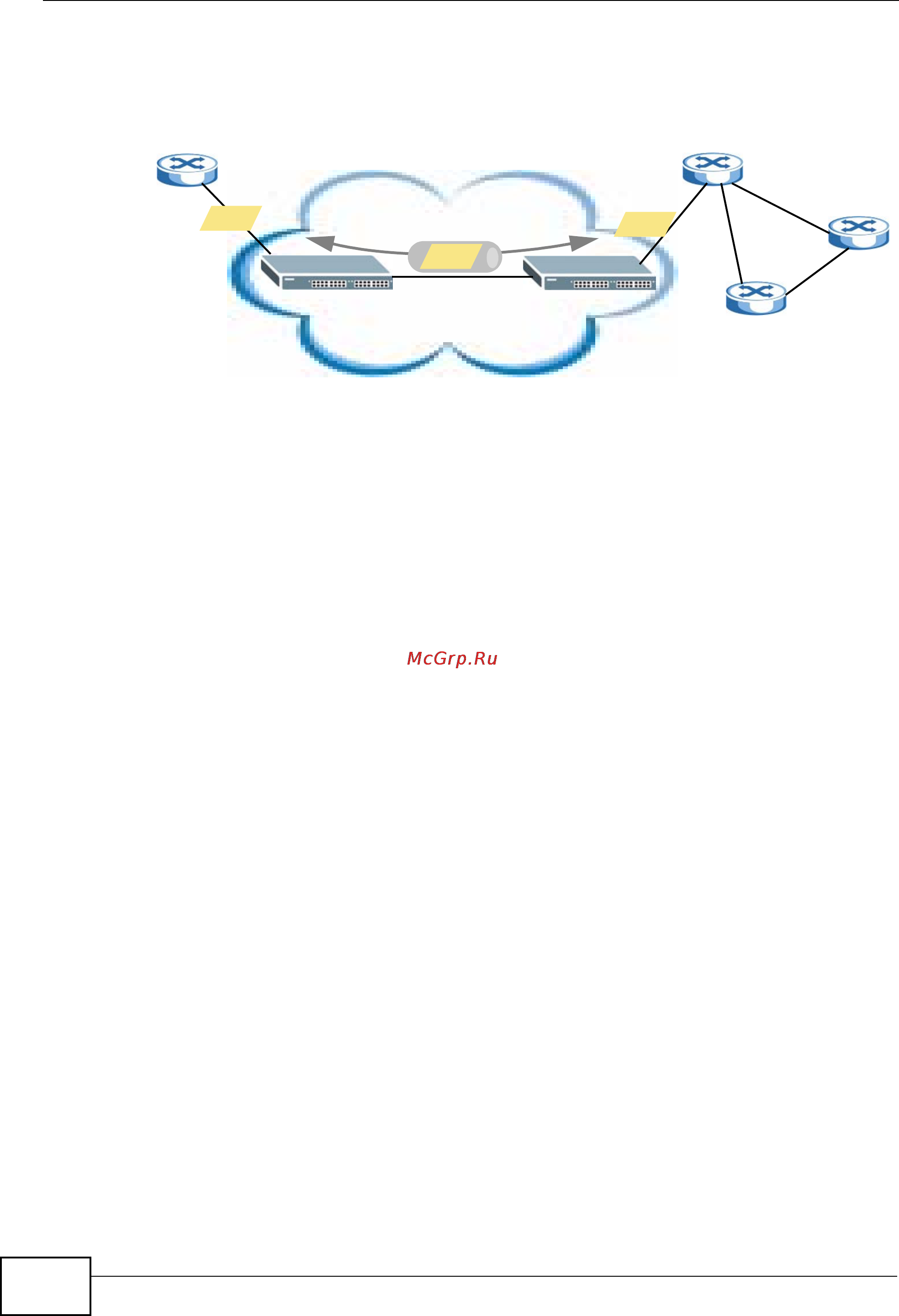

Figure 133 L2PT Network Example
27.1.1 Layer 2 Protocol Tunneling Mode
Each port can have two layer 2 protocol tunneling modes, Access and Tunnel.
•The Access port is an ingress port on the service provider's edge device (1 or 2
in Figure 133 on page 244) and connected to a customer switch (A or B).
Incoming layer 2 protocol packets received on an access port are encapsulated
and forwarded to the tunnel ports.
•The Tunnel port is an egress port at the edge of the service provider's network
and connected to another service provider’s switch. Incoming encapsulated
layer 2 protocol packets received on a tunnel port are decapsulated and sent to
an access port.
1
2
A
B
Service Provider's
Network
C
D
STP
STP
STP
