Chapter 29 Differentiated Services
MES-3528 User’s Guide
256
29.3.1 Configuring DSCP Settings
To change the DSCP-IEEE 802.1p mapping click the DSCP Setting link in the
DiffServ screen to display the screen as shown next.

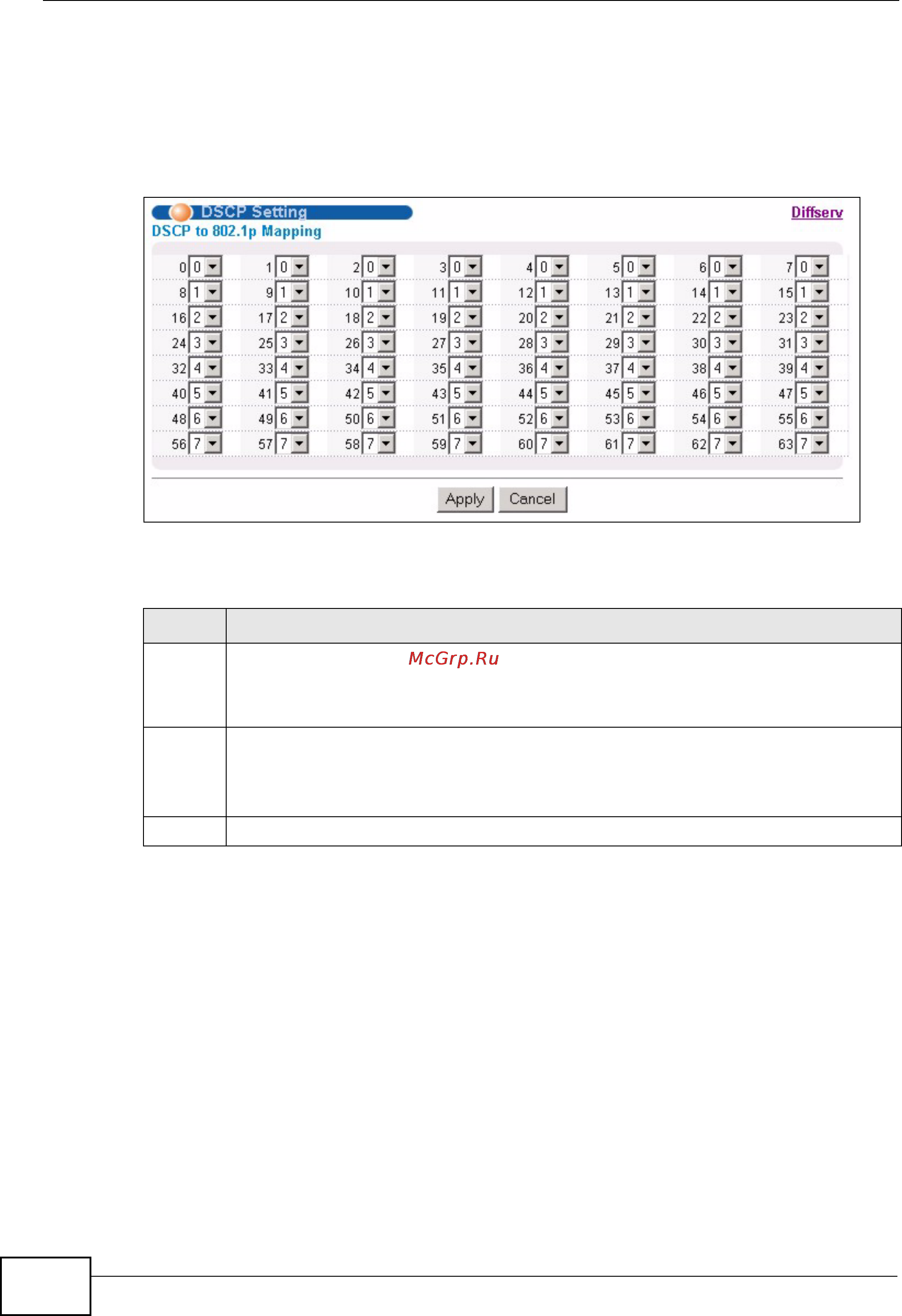

Figure 140 IP Application > DiffServ > DSCP Setting
The following table describes the labels in this screen.
Table 83 IP Application > DiffServ > DSCP Setting
LABEL DESCRIPTION
0 … 63 This is the DSCP classification identification number.
To set the IEEE 802.1p priority mapping, select the priority level from the drop-
down list box.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch
loses these changes if it is turned off or loses power, so use the Save link on
the top navigation panel to save your changes to the non-volatile memory when
you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
