Chapter 23 Multicast
MES-3528 User’s Guide
196
23.8.1 MVR Configuration Example
The following figure shows a network example where ports 1, 2 and 3 on the
Switch belong to VLAN 1. In addition, port 7 belongs to the multicast group with
VID 200 to receive multicast traffic (the News and Movie channels) from the
remote streaming media server, S. Computers A, B and C in VLAN are able to
receive the traffic.

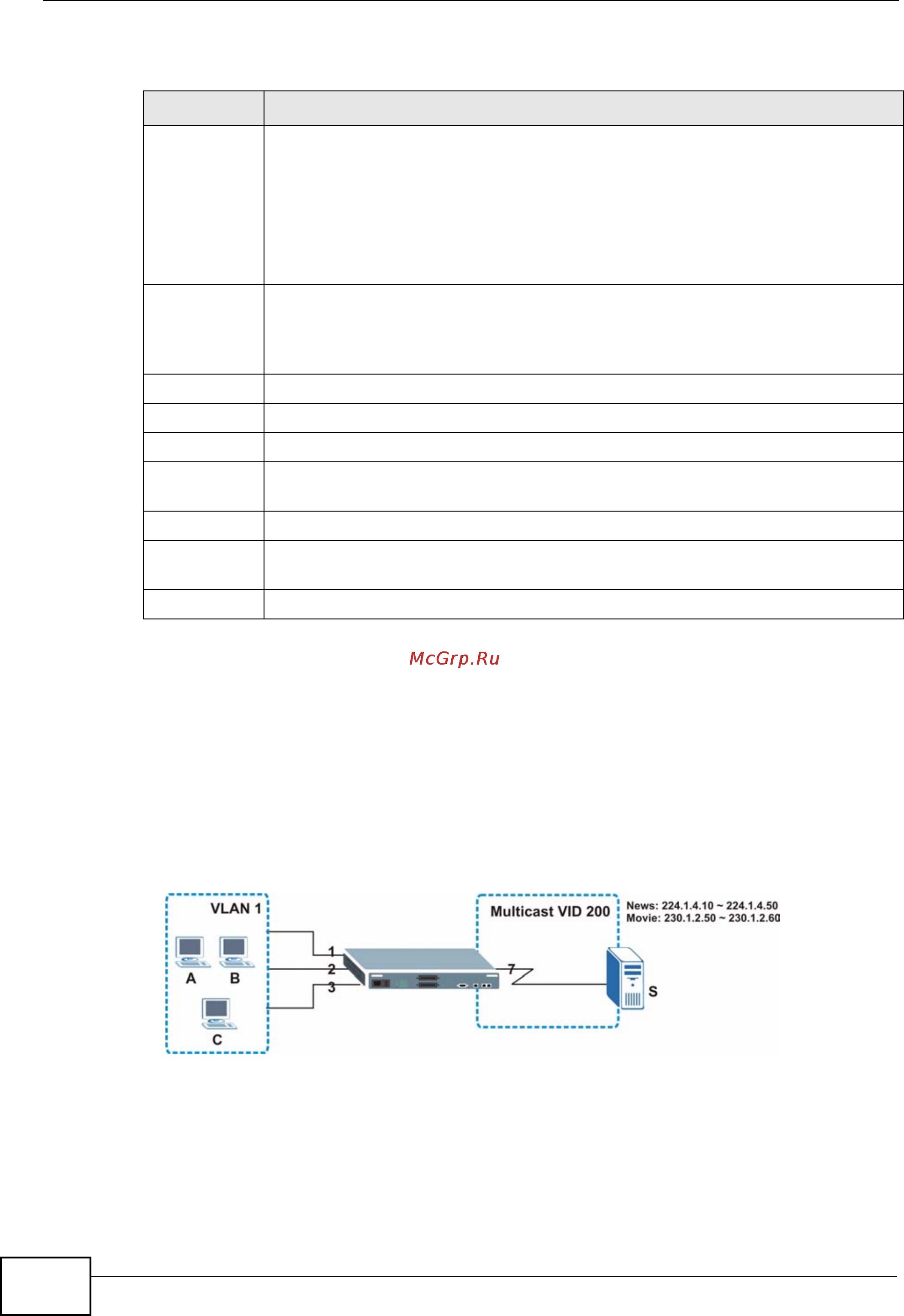

Figure 104 MVR Configuration Example
End Address Enter the ending IP multicast address of the multicast group in dotted
decimal notation.
Enter the same IP address as the Start Address field if you want to
configure only one IP address for a multicast group.
Refer to Section 23.1.1 on page 183 for more information on IP multicast
addresses.
Add Click Add to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
MVLAN This field displays the multicast VLAN ID.
Name This field displays the descriptive name for this setting.
Start
Address
This field displays the starting IP address of the multicast group.
End Address This field displays the ending IP address of the multicast group.
Delete Select Delete Group and click Delete to remove the selected entry(ies)
from the table.
Cancel Select Cancel to clear the checkbox(es) in the table.
Table 56 Advanced Application > Multicast > Multicast Setting > MVR: Group
Configuration
LABEL DESCRIPTION
