Chapter 20 Classifier
MES-3528 User’s Guide
168
Click Advanced Application > Classifier in the navigation panel to display the
configuration screen as shown.

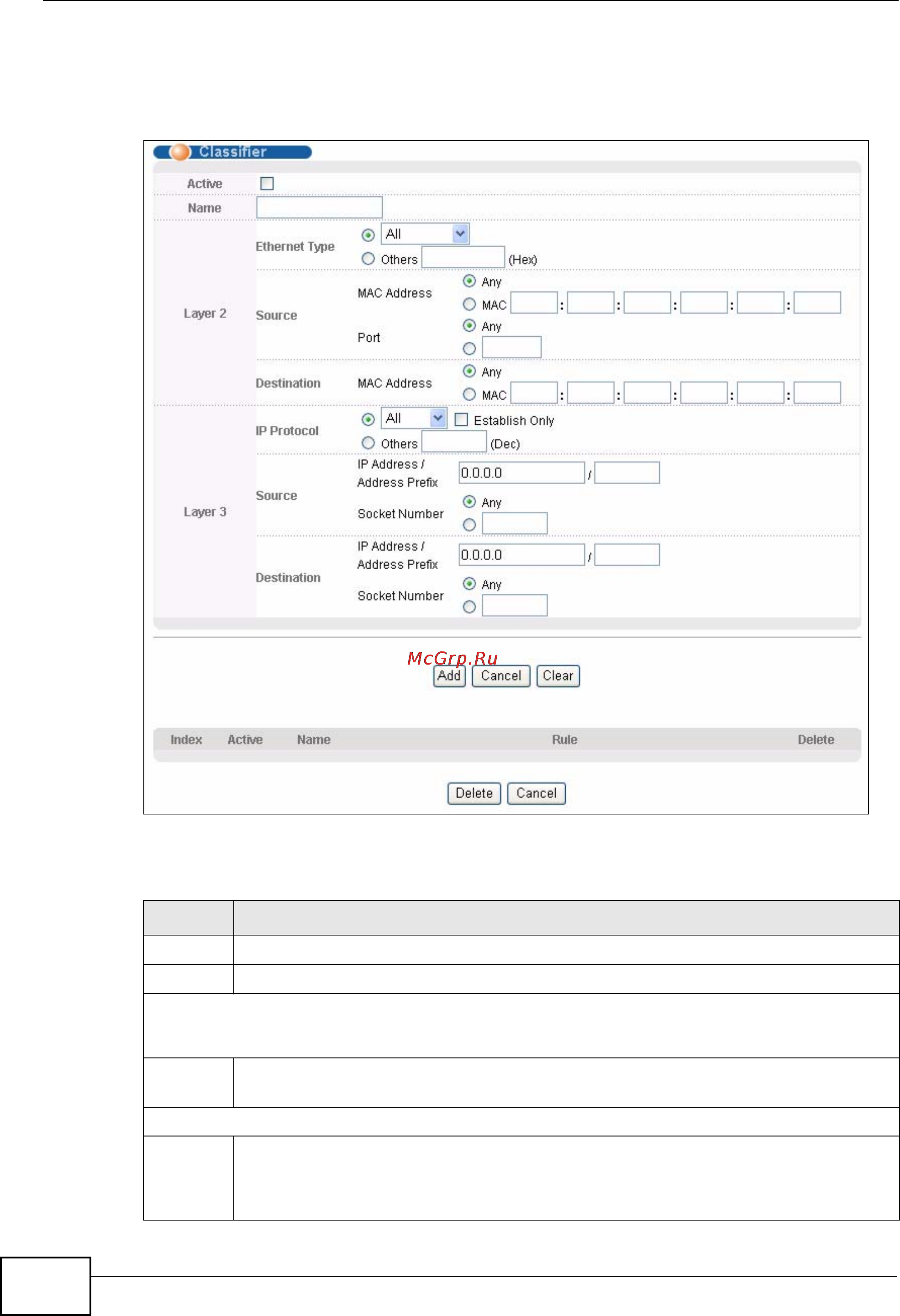

Figure 89 Advanced Application > Classifier
The following table describes the labels in this screen.
Table 43 Advanced Application > Classifier
LABEL DESCRIPTION
Active Select this option to enable this rule.
Name Enter a descriptive name for this rule for identifying purposes.
Layer 2
Specify the fields below to configure a layer 2 classifier.
Ethernet
Type
Select an Ethernet type or select Other and enter the Ethernet type number in
hexadecimal value. Refer to Table 45 on page 170 for information.
Source
MAC
Address
Select Any to apply the rule to all MAC addresses.
To specify a source, select the second choice and type a MAC address in valid
MAC address format (six hexadecimal character pairs).
