Chapter 24 AAA
MES-3528 User’s Guide
201
Click Advanced Application > AAA in the navigation panel to display the screen
as shown.

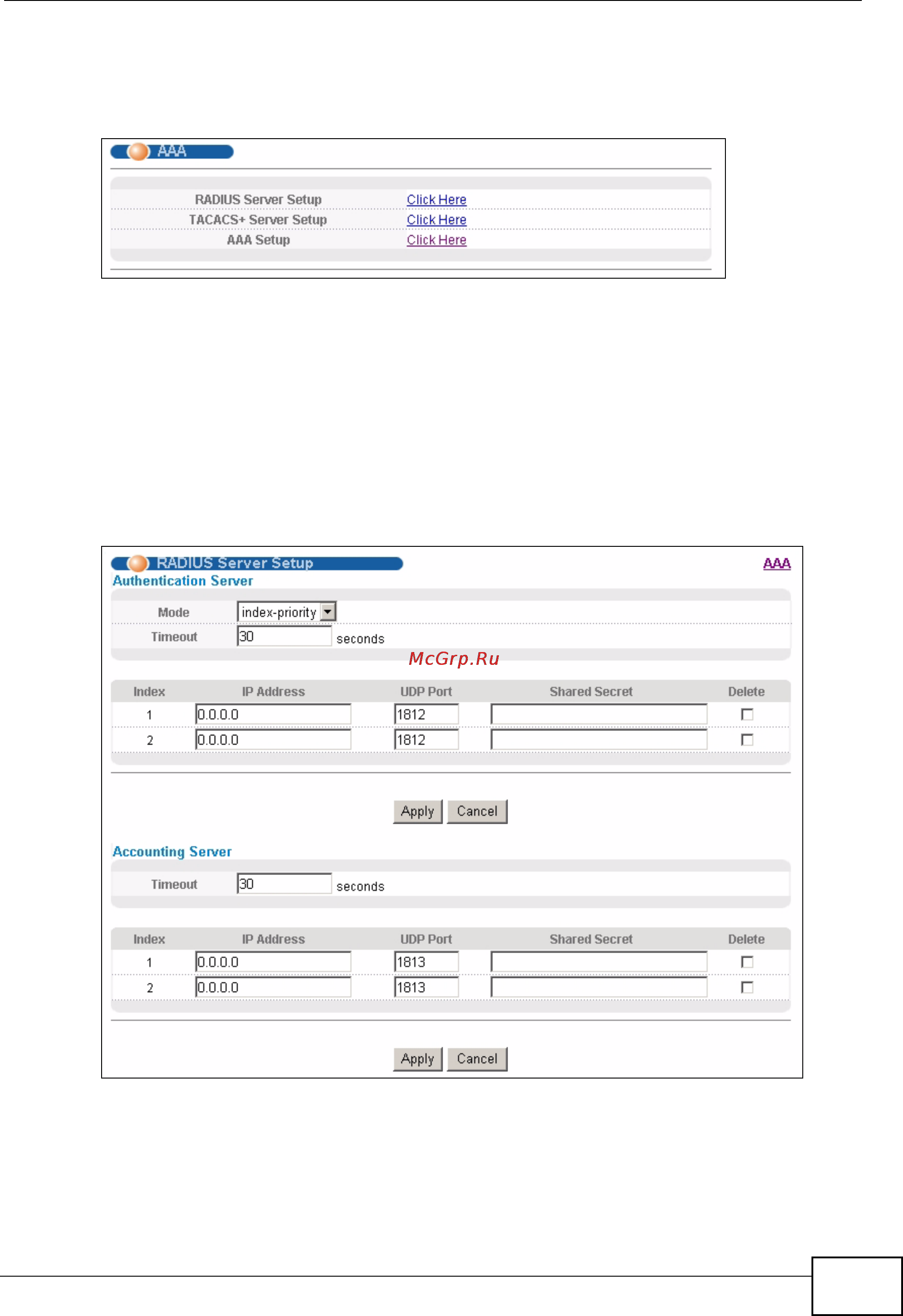

Figure 109 Advanced Application > AAA
24.2.1 RADIUS Server Setup
Use this screen to configure your RADIUS server settings. See Section 24.1.2 on
page 200 for more information on RADIUS servers and Section 24.3 on page 209
for RADIUS attributes utilized by the authentication and accounting features on
the Switch. Click on the RADIUS Server Setup link in the AAA screen to view
the screen as shown.
Figure 110 Advanced Application > AAA > RADIUS Server Setup
