Chapter 8 Basic Setting
MES-3528 User’s Guide
76
The following table describes the labels in this screen.
8.3 General Setup
Use this screen to configure general settings such as the system name and time.
Click Basic Setting > General Setup in the navigation panel to display the
screen as shown.

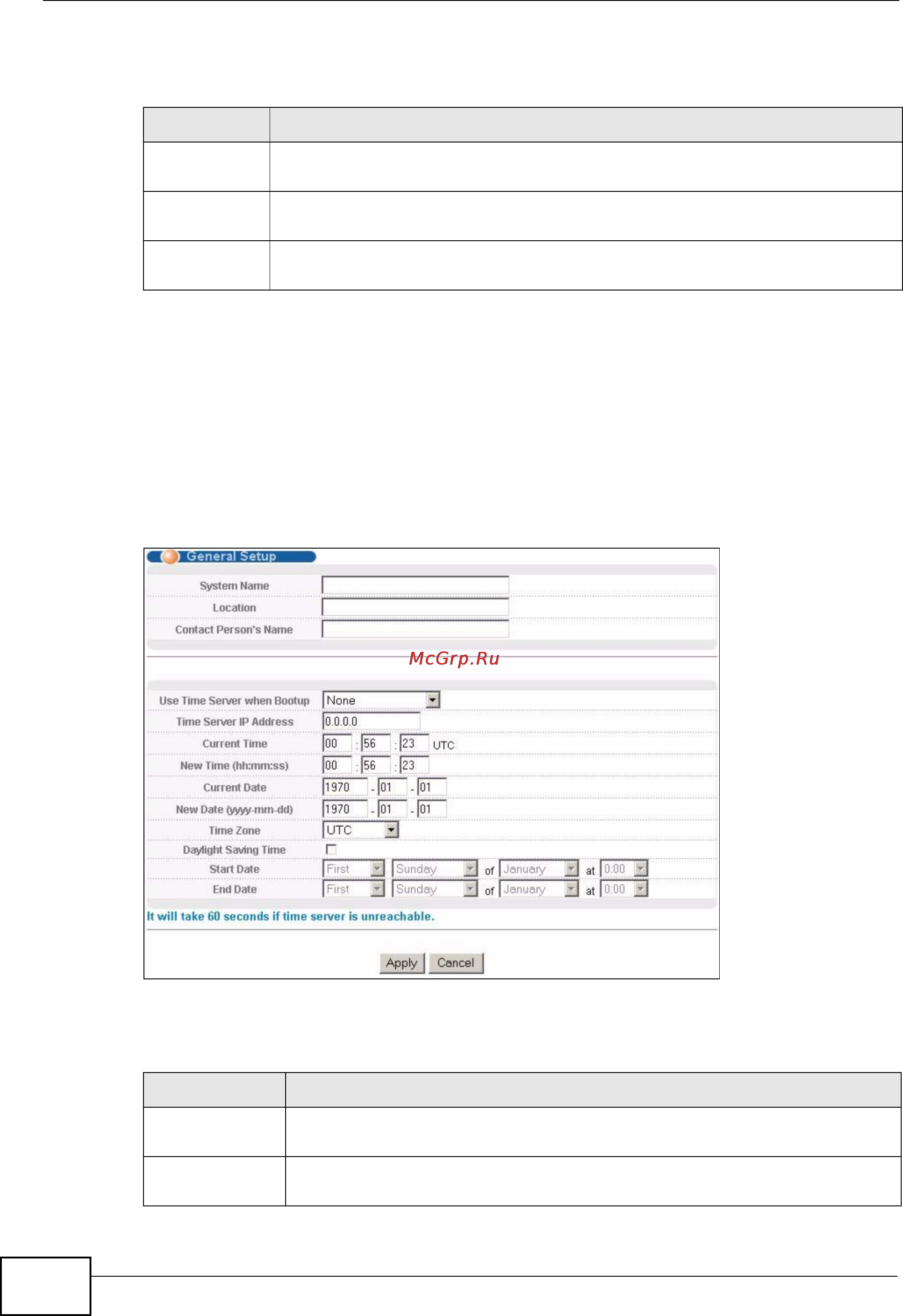

Figure 41 Basic Setting > General Setup
The following table describes the labels in this screen.
Table 8 Basic Setting > System Info
LABEL DESCRIPTION
System
Name
This field displays the descriptive name of the Switch for identification
purposes.
ZyNOS F/W
Version
This field displays the version number of the Switch 's current firmware
including the date created.
Ethernet
Address
This field refers to the Ethernet MAC (Media Access Control) address of the
Switch.
Table 9 Basic Setting > General Setup
LABEL DESCRIPTION
System Name Choose a descriptive name for identification purposes. This name
consists of up to 64 printable characters; spaces are allowed.
Location Enter the geographic location of your Switch. You can use up to 32
printable ASCII characters; spaces are allowed.
