Zyxel MES-3528 [59/354] Tutorials

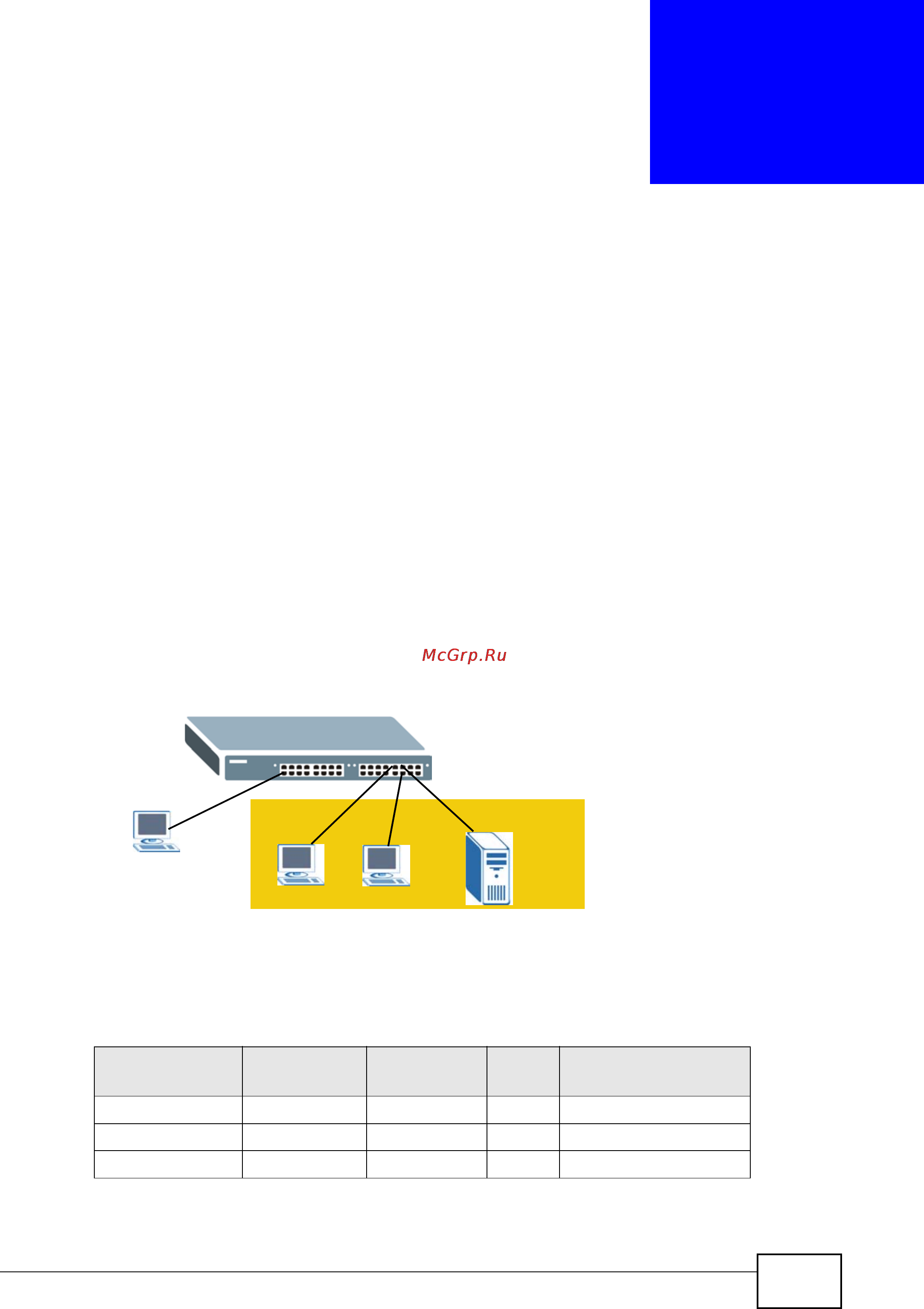

![Zyxel MES-3528 [59/354] Tutorials](/views2/1010719/page59/bg3b.png)
MES-3528 User’s Guide
59
CHAPTER 6
Tutorials
This chapter provides some examples of using the web configurator to set up and
use the Switch. The tutorials include:
• How to Use DHCP Snooping on the Switch
• How to Use DHCP Relay on the Switch
6.1 How to Use DHCP Snooping on the Switch
You only want DHCP server A connected to port 5 to assign IP addresses to all
devices in VLAN network (V). Create a VLAN containing ports 5, 6 and 7. Connect
a computer M to the Switch for management.
Figure 25 Tutorial: DHCP Snooping Tutorial Overview
Note: For related information about DHCP snooping, see Section 25.1 on page 213.
The settings in this tutorial are as the following.
Table 5 Tutorial: Settings in this Tutorial
HOST
PORT
CONNECTED
VLAN PVID
DHCP SNOOPING
PORT TRUSTED
DHCP Server (A) 5 1 and 100 100 Yes
DHCP Client (B) 6 1 and 100 100 No
DHCP Client (C) 7 1 and 100 100 No
V
A
B
M
C
