Chapter 20 Classifier

MES-3528 User’s Guide

170

20.3 Viewing and Editing Classifier

Configuration

To view a summary of the classifier configuration, scroll down to the summary

table at the bottom of the Classifier screen. To change the settings of a rule, click

a number in the Index field.

Note: When two rules conflict with each other, a higher layer rule has priority over

lower layer rule.

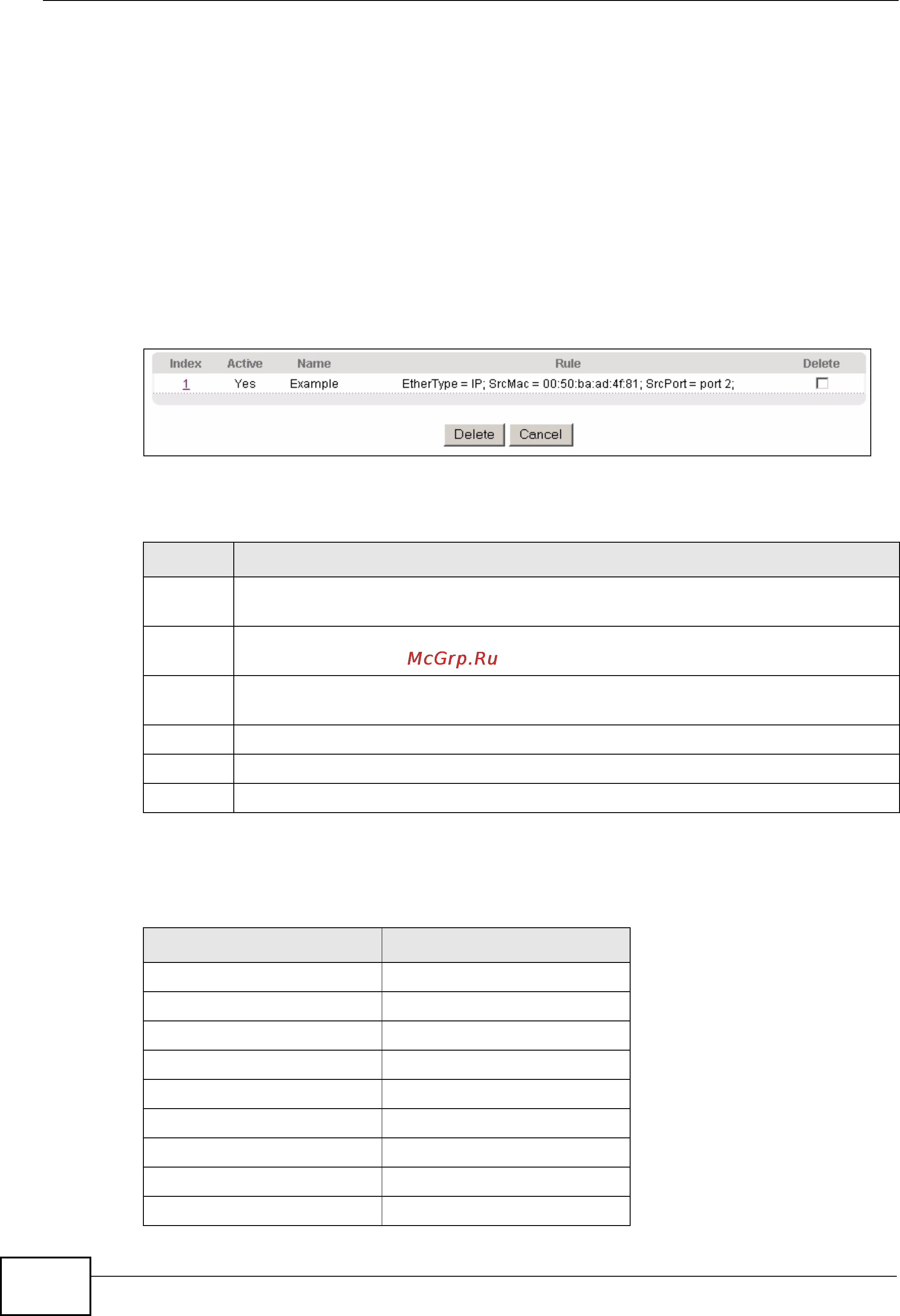

Figure 90 Advanced Application > Classifier: Summary Table

The following table describes the labels in this screen.

The following table shows some other common Ethernet types and the

corresponding protocol number.

Table 44 Classifier: Summary Table

LABEL DESCRIPTION

Index This field displays the index number of the rule. Click an index number to edit

the rule.

Active This field displays Yes when the rule is activated and No when it is

deactivated.

Name This field displays the descriptive name for this rule. This is for identification

purpose only.

Rule This field displays a summary of the classifier rule’s settings.

Delete Click Delete to remove the selected entry from the summary table.

Cancel Click Cancel to clear the Delete check boxes.

Table 45 Common Ethernet Types and Protocol Numbers

ETHERNET TYPE PROTOCOL NUMBER

IP ETHII 0800

X.75 Internet 0801

NBS Internet 0802

ECMA Internet 0803

Chaosnet 0804

X.25 Level 3 0805

XNS Compat 0807

Banyan Systems 0BAD

BBN Simnet 5208
