Chapter 35 Cluster Management
MES-3528 User’s Guide
304

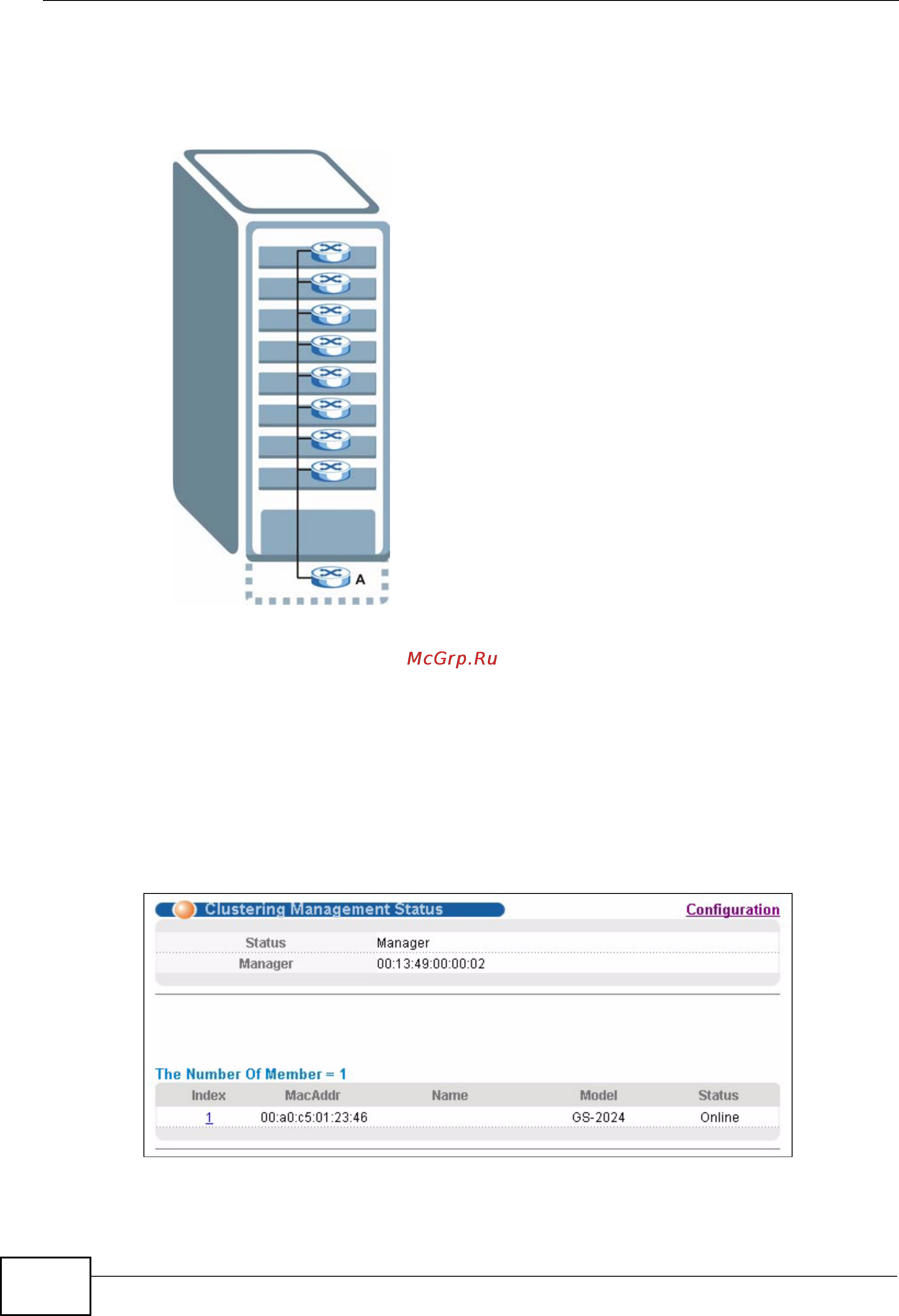

In the following example, switch A in the basement is the cluster manager and the
other switches on the upper floors of the building are cluster members.
Figure 171 Clustering Application Example
35.2 Cluster Management Status
Click Management > Cluster Management in the navigation panel to display
the following screen.
Note: A cluster can only have one manager.
Figure 172 Management > Cluster Management: Status
