Chapter 23 Multicast
MES-3528 User’s Guide
195
23.8 MVR Group Configuration
All source ports and receiver ports belonging to a multicast group can receive
multicast data sent to this multicast group.
Configure MVR IP multicast group address(es) in the Group Configuration
screen. Click Group Configuration in the MVR screen.
Note: A port can belong to more than one multicast VLAN. However, IP multicast
group addresses in different multicast VLANs cannot overlap.

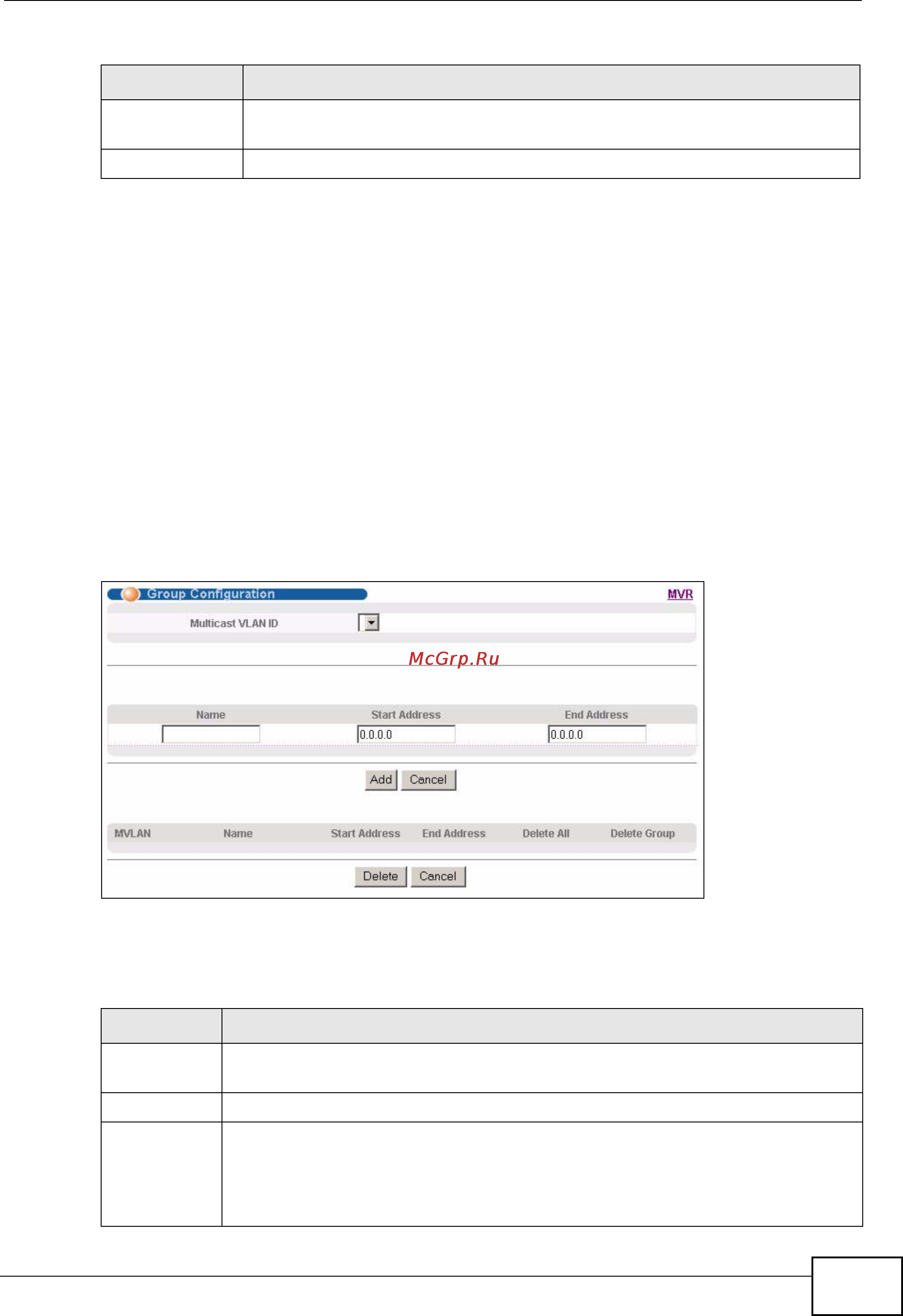

Figure 103 Advanced Application > Multicast > Multicast Setting > MVR: Group
Configuration
The following table describes the labels in this screen.
Delete To delete a multicast VLAN(s), select the rule(s) that you want to
remove in the Delete column, then click the Delete button.
Cancel Click Cancel to clear the Delete check boxes.
Table 55 Advanced Application > Multicast > Multicast Setting > MVR (continued)
LABEL DESCRIPTION
Table 56 Advanced Application > Multicast > Multicast Setting > MVR: Group
Configuration
LABEL DESCRIPTION
Multicast
VLAN ID
Select a multicast VLAN ID (that you configured in the MVR screen) from
the drop-down list box.
Name Enter a descriptive name for identification purposes.
Start
Address
Enter the starting IP multicast address of the multicast group in dotted
decimal notation.
Refer to Section 23.1.1 on page 183 for more information on IP multicast
addresses.
