Chapter 36 MAC Table
MES-3528 User’s Guide
312
• If the Switch has already learned the port for this MAC address, but the
destination port is the same as the port it came in on, then it filters the frame.

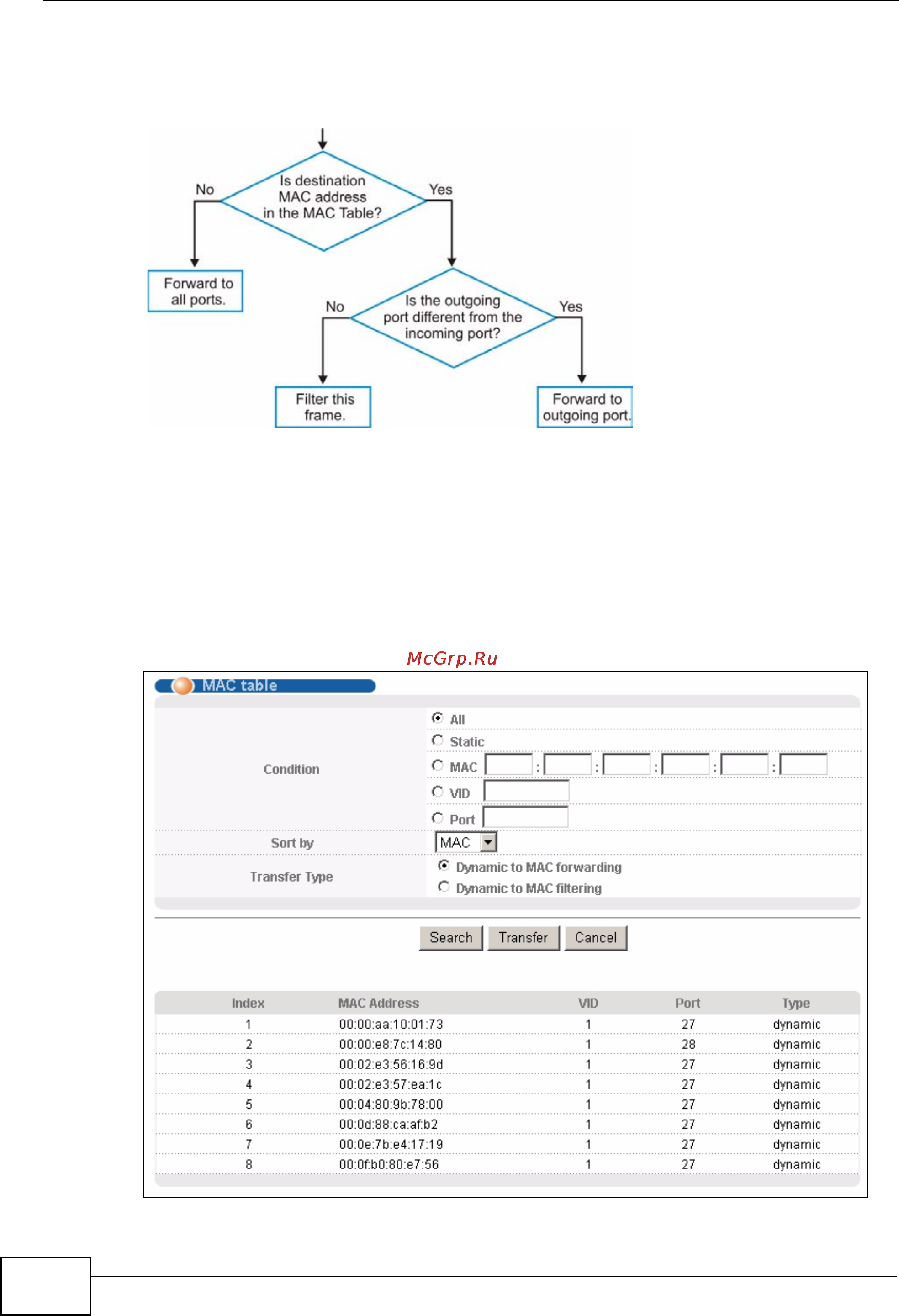

Figure 176 MAC Table Flowchart
36.2 Viewing the MAC Table
Click Management > MAC Table in the navigation panel to display the following
screen.
Figure 177 Management > MAC Table
