Chapter 9 VLAN
MES-3528 User’s Guide
94
9.5.2 VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See
Section 9.1 on page 89 for more information on static VLAN. Click on an index
number in the VLAN Status screen to display VLAN details.

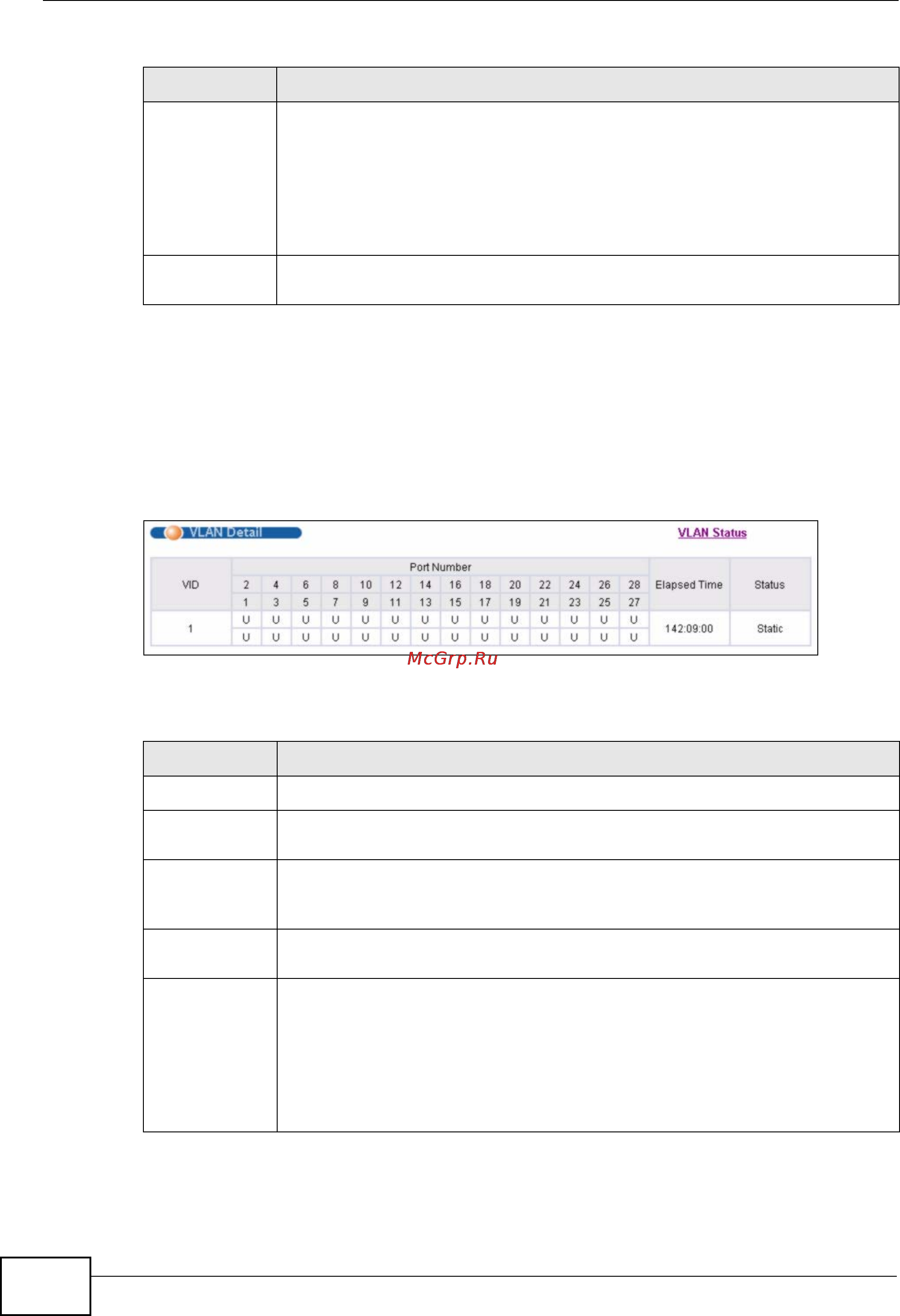

Figure 48 Advanced Application > VLAN > VLAN Detail
The following table describes the labels in this screen.
Status This field shows how this VLAN was added to the Switch.
dynamic: using GVRP
static: added as a permanent entry
other: added in another way such as via Multicast VLAN Registration
(MVR)
Change Pages Click Previous or Next to show the previous/next screen if all status
information cannot be seen in one screen.
Table 14 Advanced Application > VLAN: VLAN Status (continued)
LABEL DESCRIPTION
Table 15 Advanced Application > VLAN > VLAN Detail
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VID This is the VLAN identification number that was configured in the Static
VLAN screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged
port is marked as T, an untagged port is marked as U and ports not
participating in a VLAN are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered
or a static VLAN was set up.
Status This field shows how this VLAN was added to the Switch.
dynamic: using GVRP
static: added as a permanent entry
other: added in another way such as via Multicast VLAN Registration
(MVR)
