32.3.4 Configuring SNMP
Click Management > Access Control > SNMP to view the screen as shown. Use
this screen to configure your SNMP settings.

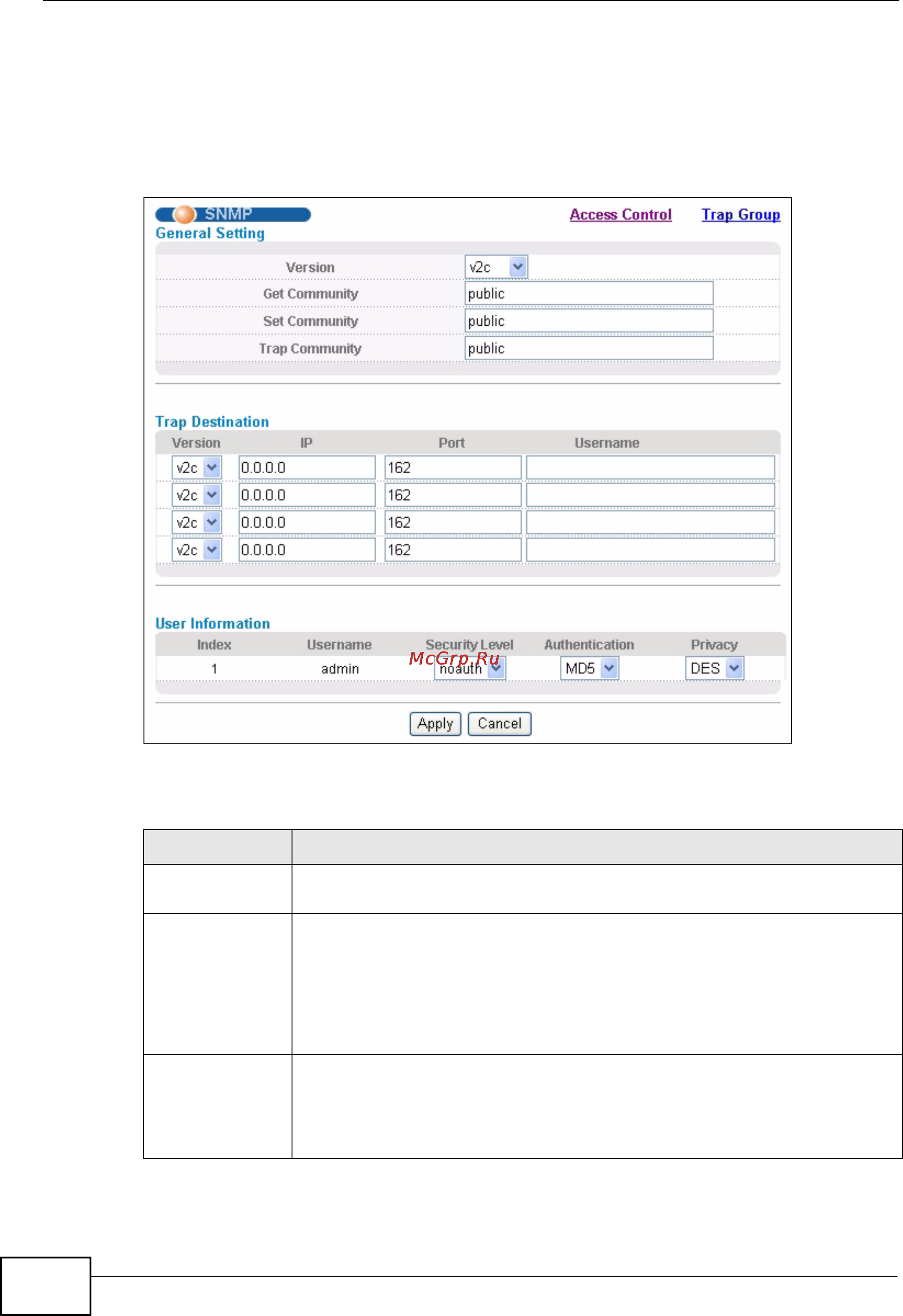

Figure 156 Management > Access Control > SNMP
The following table describes the labels in this screen.
Table 97 Management > Access Control > SNMP
LABEL DESCRIPTION
General Setting Use this section to specify the SNMP version and community (password)
values.
Version Select the SNMP version for the Switch. The SNMP version on the Switch
must match the version on the SNMP manager. Choose SNMP version
2c (v2c), SNMP version 3 (v3) or both (v3v2c).
Note: SNMP version 2c is backwards compatible with SNMP
version 1.
Get Community Enter the Get Community string, which is the password for the
incoming Get- and GetNext- requests from the management station.
The Get Community string is only used by SNMP managers using
SNMP version 2c or lower.
