Chapter 25 IP Source Guard
MES-3528 User’s Guide
231
25.6.2 ARP Inspection Log Status
Use this screen to look at log messages that were generated by ARP packets and
that have not been sent to the syslog server yet. To open this screen, click
Advanced Application > IP Source Guard > ARP Inspection > Log Status.

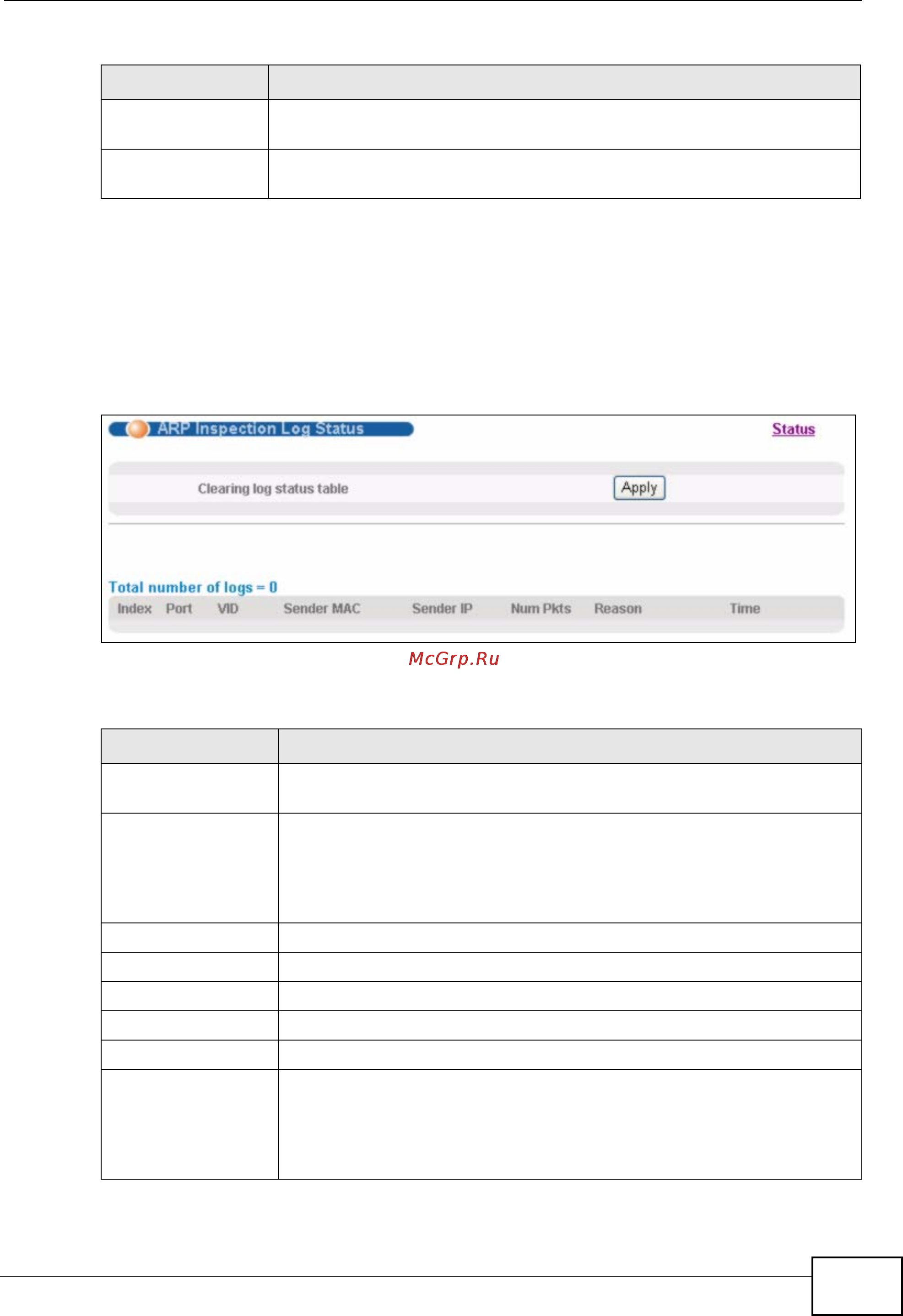

Figure 123 ARP Inspection Log Status
The following table describes the labels in this screen.
Forwarded This field displays the total number of ARP packets the Switch
forwarded for the VLAN since the Switch last restarted.
Dropped This field displays the total number of ARP packets the Switch
discarded for the VLAN since the Switch last restarted.
Table 73 ARP Inspection VLAN Status
LABEL DESCRIPTION
Table 74 ARP Inspection Log Status
LABEL DESCRIPTION
Clearing log status
table
Click Apply to remove all the log messages that were generated by
ARP packets and that have not been sent to the syslog server yet.
Total number of
logs
This field displays the number of log messages that were generated
by ARP packets and that have not been sent to the syslog server yet.
If one or more log messages are dropped due to unavailable buffer,
there is an entry called overflow with the current number of
dropped log messages.
Index This field displays a sequential number for each log message.
Port This field displays the source port of the ARP packet.
VID This field displays the source VLAN ID of the ARP packet.
Sender MAC This field displays the source MAC address of the ARP packet.
Sender IP This field displays the source IP address of the ARP packet.
Num Pkts This field displays the number of ARP packets that were consolidated
into this log message. The Switch consolidates identical log
messages generated by ARP packets in the log consolidation interval
into one log message. You can configure this interval in the ARP
Inspection Configure screen. See Section 25.7 on page 232.
