Chapter 3 Hardware Overview
MES-3528 User’s Guide
37
5 Connect the fiber optic cables to the transceiver.

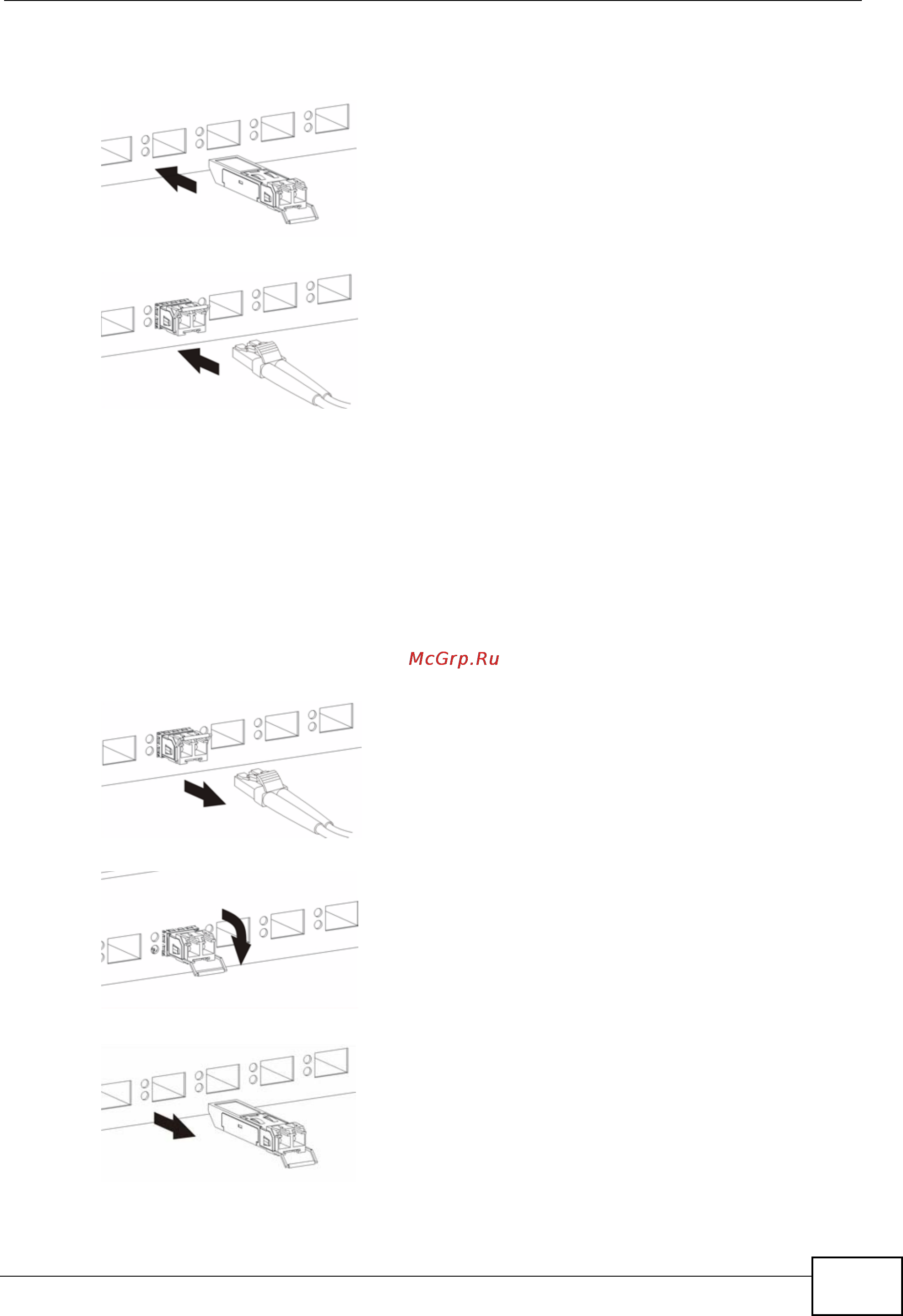

Figure 12 Transceiver Installation Example
Figure 13 Connecting the Fiber Optic Cables
3.1.3.2 Transceiver Removal
Use the following steps to remove a mini-GBIC transceiver (SFP module).
1 Remove the fiber optic cables from the transceiver.
2 Open the transceiver’s latch (latch styles vary).
3 Pull the transceiver out of the slot.
Figure 14 Removing the Fiber Optic Cables
Figure 15 Opening the Transceiver’s Latch Example
Figure 16 Transceiver Removal Example
