Chapter 23 Multicast
MES-3528 User’s Guide
193
23.7 General MVR Configuration
Use the MVR screen to create multicast VLANs and select the receiver port(s) and
a source port for each multicast VLAN. Click Advanced Applications >
Multicast > Multicast Setting > MVR link to display the screen as shown next.
Note: You can create up to five multicast VLANs and up to 256 multicast rules on the
Switch.
Note: Your Switch automatically creates a static VLAN (with the same VID) when you
create a multicast VLAN in this screen.

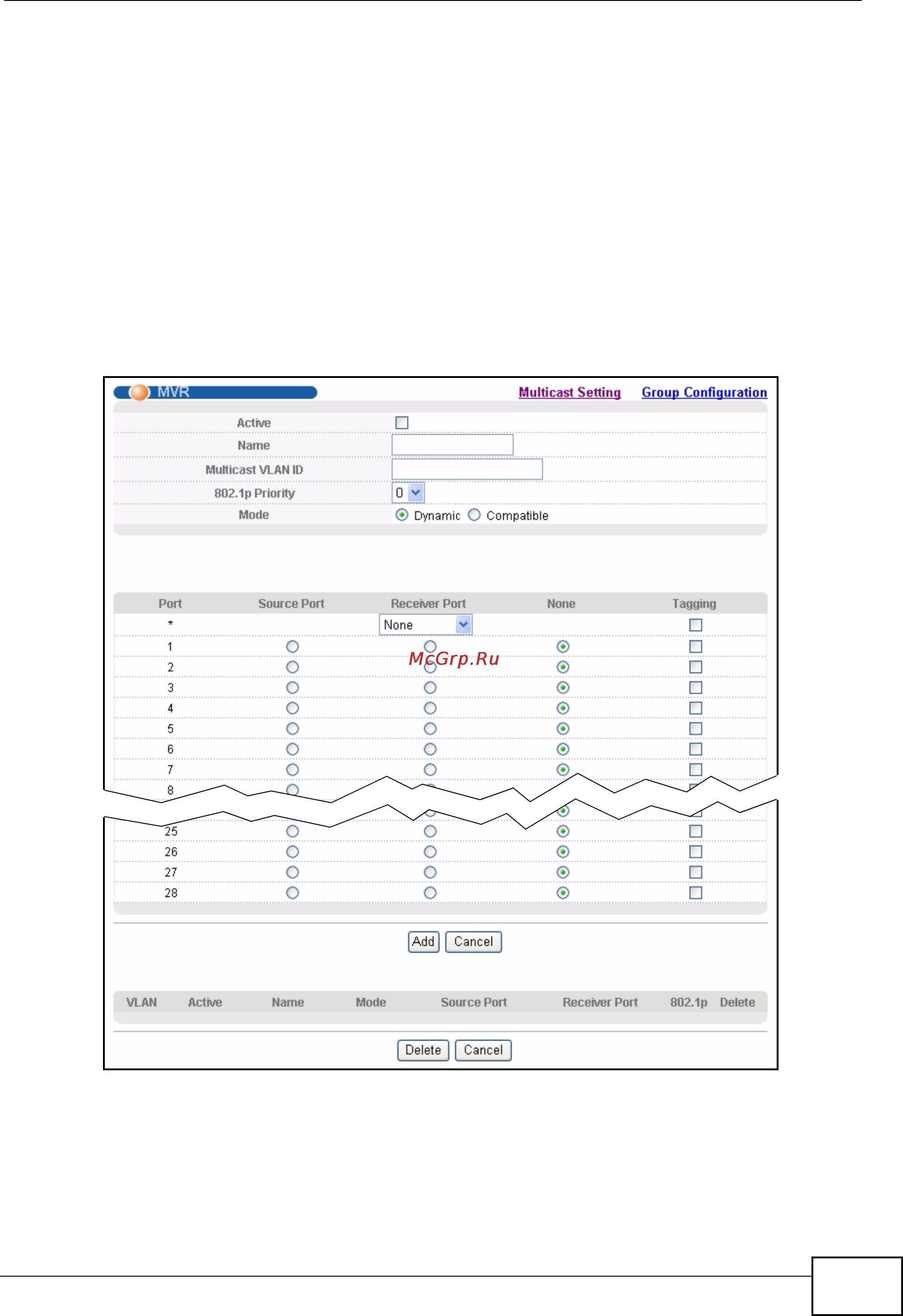

Figure 102 Advanced Application > Multicast > Multicast Setting > MVR
