![Zyxel MES-3528 [172/354] Figure 91 classifier example](/img/pdf.png)
Zyxel MES-3528 [172/354] Figure 91 classifier example
![Zyxel MES-3528 [172/354] Figure 91 classifier example](/views2/1010719/page172/bgac.png)
Chapter 20 Classifier
MES-3528 User’s Guide
172
After you have configured a classifier, you can configure a policy (in the Policy
screen) to define action(s) on the classified traffic flow.

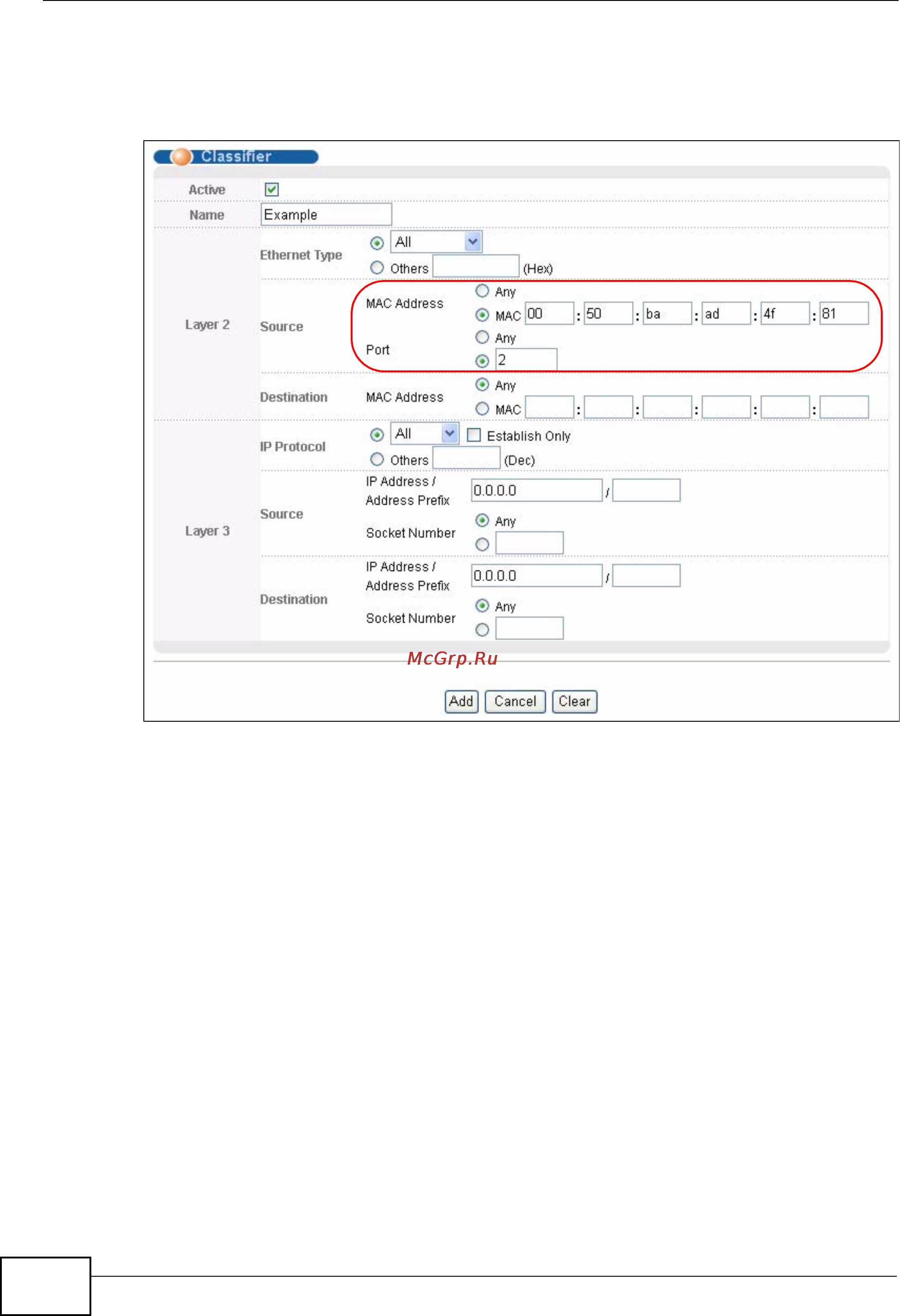

Figure 91 Classifier: Example
