Chapter 18 Port Authentication
MES-3528 User’s Guide
161
18.2.1 Activate IEEE 802.1x Security
Use this screen to activate IEEE 802.1x security. In the Port Authentication screen
click 802.1x to display the configuration screen as shown.

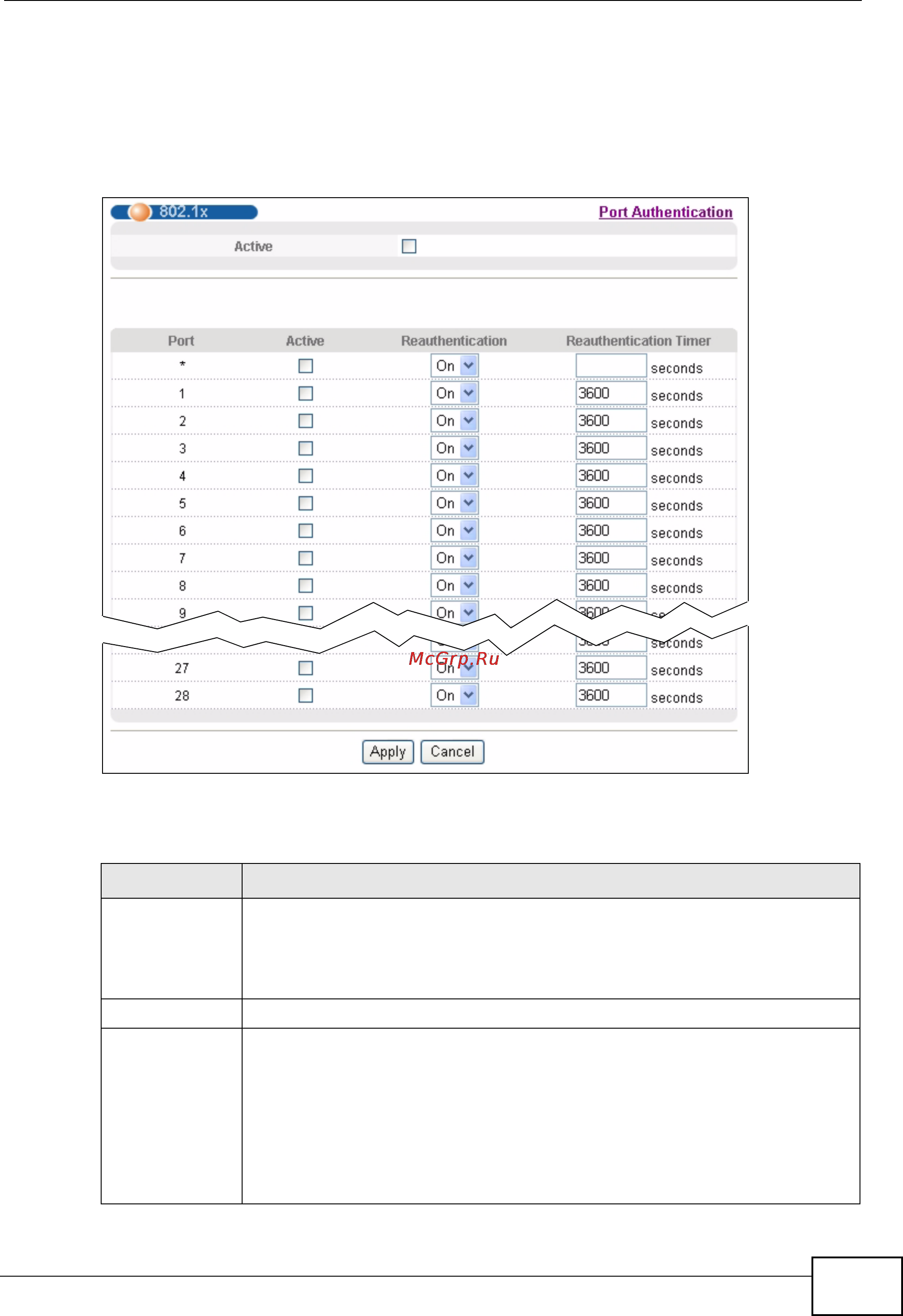

Figure 87 Advanced Application > Port Authentication > 802.1x
The following table describes the labels in this screen.
Table 41 Advanced Application > Port Authentication > 802.1x
LABEL DESCRIPTION
Active Select this check box to permit 802.1x authentication on the Switch.
Note: You must first enable 802.1x authentication on the Switch
before configuring it on each port.
Port This field displays the port number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all
ports. Use this row first to set the common settings and then make
adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you
make them.
