Yamaha NEOS 50 YN50 (2002) [105/161] Front wheel

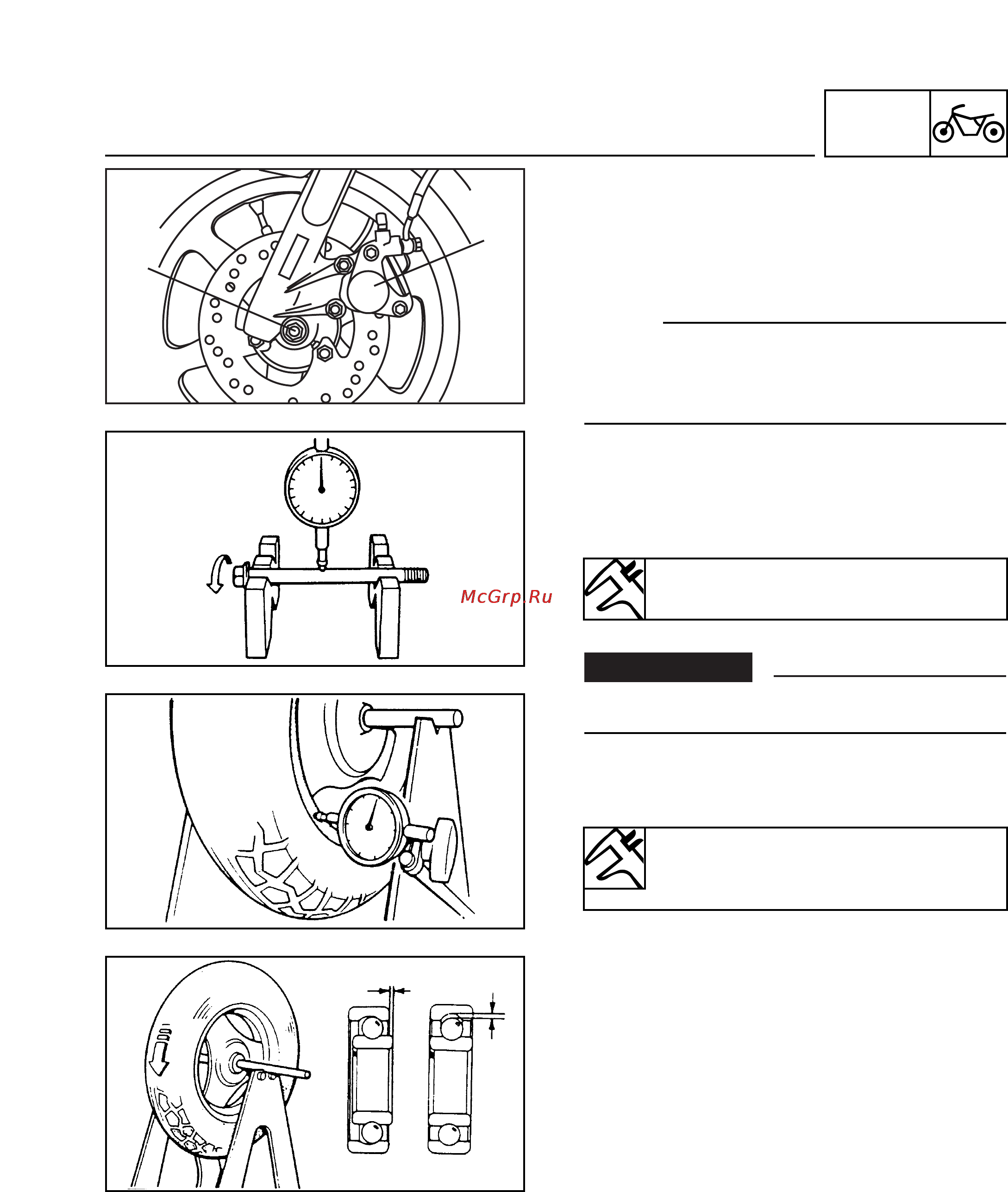

![Yamaha NEOS 50 YN50 (2002) [105/161] Front wheel](/views2/1121427/page105/bg69.png)
CHAS
FRONT WHEEL
6-2
REMOVAL
1. Remove:
• brake caliper
• Axle
• Wheel
NOTE:
Do not press the brake lever when the wheel
is removed from the scooter, otherwise the
brake blocks will be closed under force.
INSPECTION
1. Measure:
• Bend of wheel axle
Outside specified value
Change
ss
WARNING
Do not try to straighten a bent axle
2. Measure:
• Run out of wheel
Outside specified value
Change
3. Inspect:
• Wheel Cracks/Marked/Deformed
Change
4. Inspect:
• Wheel bearings
Bearings allow play on the wheel hub or
the wheel turns abruptly
Change
5. Inspect:
• Speedometer gear unit
Wear/Damage
Change
Bend limitof wheel axle
0.25 mm
Run-out limit:
Vertical: 1.0 mm
Lateral: 1.0 mm
