Yamaha NEOS 50 YN50 (2002) [59/161] Disassembly the engine
![Yamaha NEOS 50 YN50 (2002) [59/161] Disassembly the engine](/views2/1121427/page59/bg3b.png)
ENG

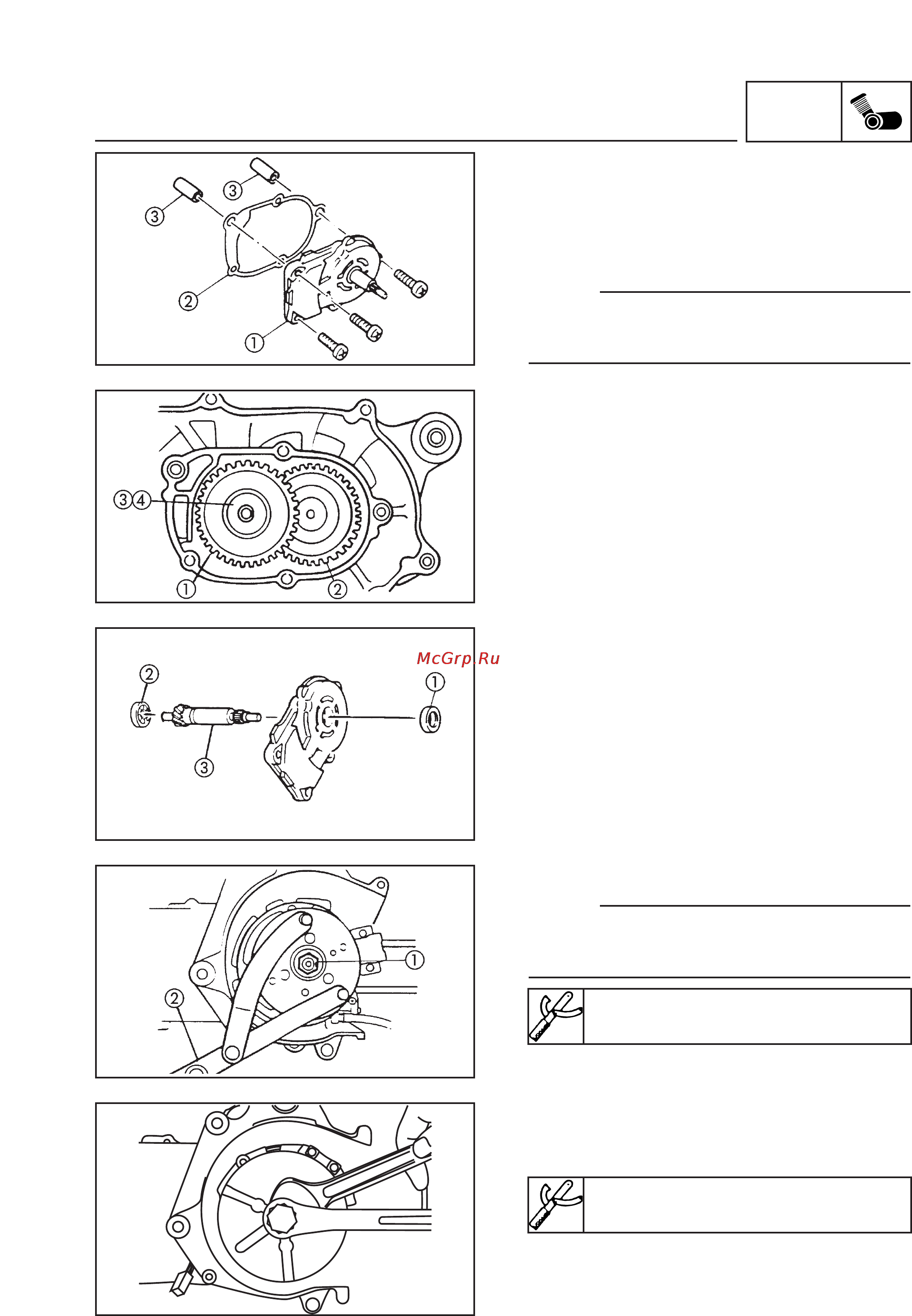

DISASSEMBLY THE ENGINE
4-8
TRANSMISSION
1. Remove:
• Transmission box cover
• Gasket
• Centring devices
NOTE:
Before proceeding to disassemble the trans-
mission cap, empty the oil.
2. Remove:
• Main axle
• Drive axle
• Flat washer
• Conical spring washer
3. Remove:
• Oil seal
• Bearing
• Secondary pulley wheel axle
MAGNETIC FLYWHEEL
1. Remove:
• Nut (rotor)
• Flat washer
NOTE:
Support the rotor to loosen the nut with the
engine flywheel support tool .
2. Remove:
• Rotor
• Woodruff key
Use the magnetic flywheel extractor
• Stator assembly
• Gasket
Magnetic flywheel extractor
90890-01362
Engine flywheel support tool
90890-01235
