Yamaha NEOS 50 YN50 (2002) [93/161] Carburetor
![Yamaha NEOS 50 YN50 (2002) [93/161] Carburetor](/views2/1121427/page93/bg5d.png)
CARB
CARBURETOR
5-1
EAS00480

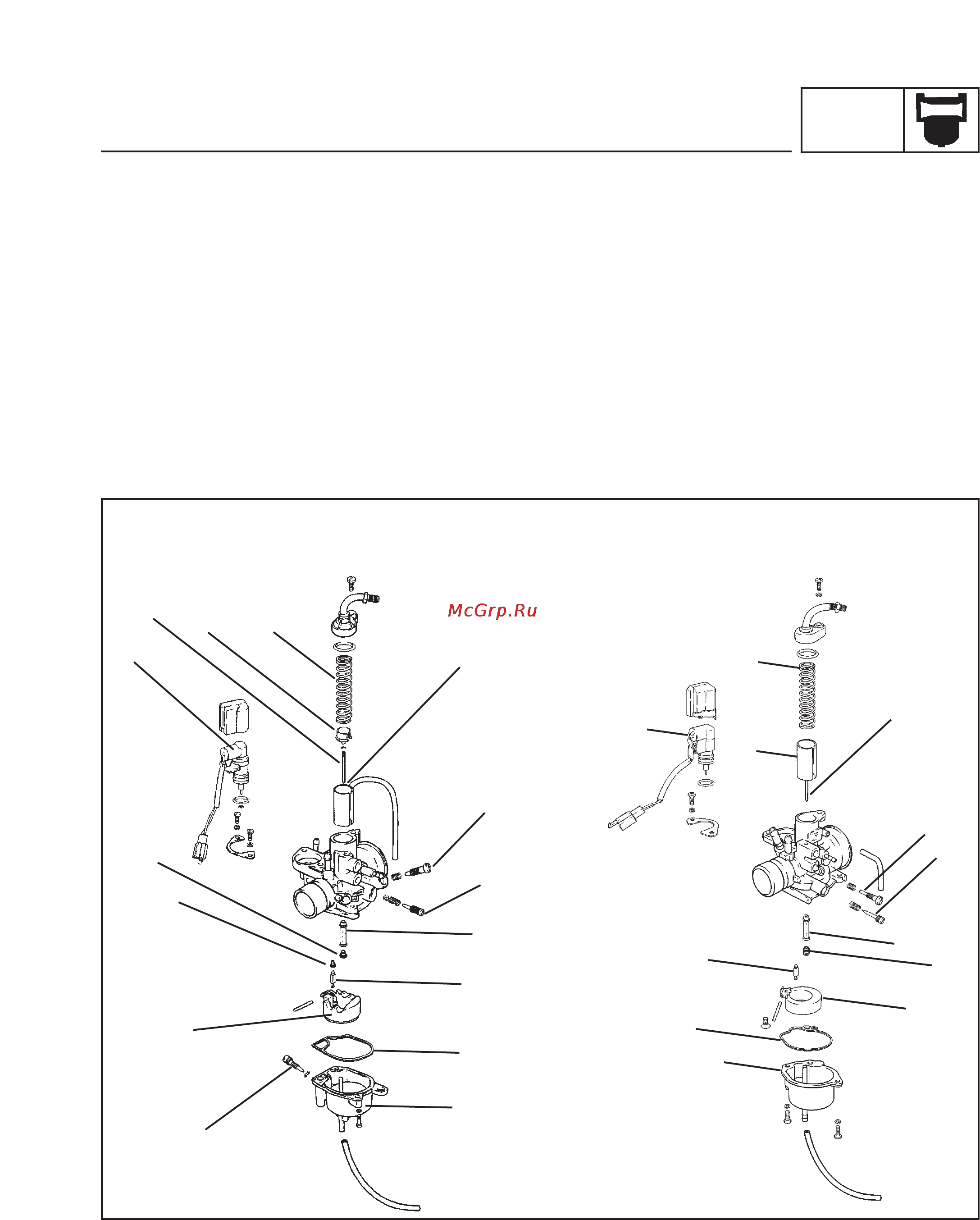

CARBURETOR
CARBURETOR
Throttle valve spring
Spring catch
Throttle valve
Jet needle
Pilot air screw
Throttle stop screw
Needle jet
Main jet
Pilot jet
10 Float
11 Float gasket
12 Drain screw
13 Needle valve
14 Float chamber
15 Autochoke unit
13
11
14
10
12
carburetor dell’orto carburetor gurtner
15
13
11
14
10
15
