CHAS
FRONT BRAKE
6-4

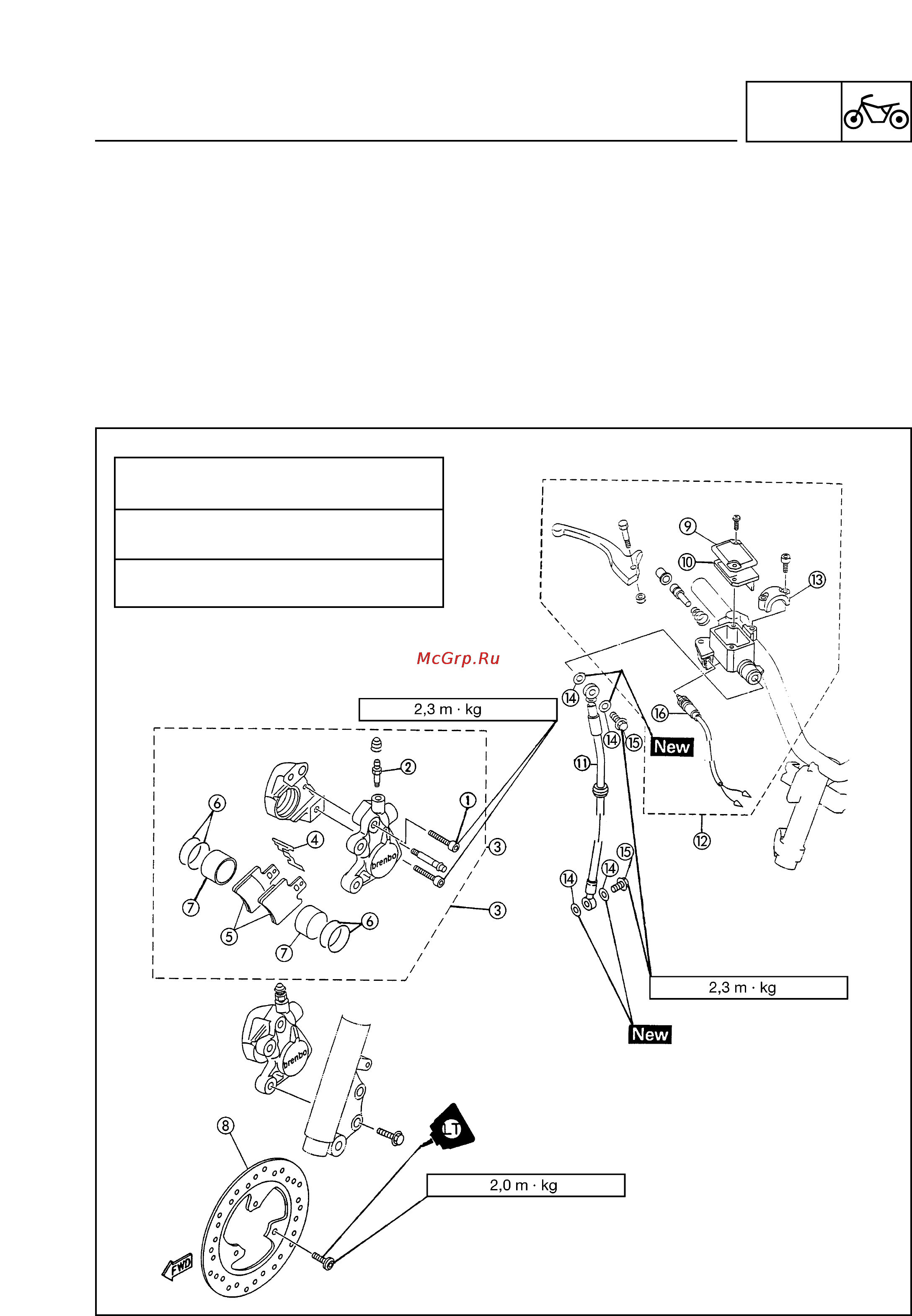

FRONT BRAKE
Retaining bolt
Bleed screw
Calliper assembly
Block spring
Pad set
Piston seal
Piston
Brake disc
Master cylinder cap
10 Diaphragm
11 Hose
12 Brake pump assembly
13 Assembly plate
14 Copper washer
15 Assembly bolt
16 Brake light switch cable
TYPE OF BRAKE FLUID
DOT 3 or 4
WEAR LIMIT OF BRAKE PADS:
0.8 mm
WEAR LIMIT OF BRAKE DISC:
3.0 mm
