INSP
ADJ

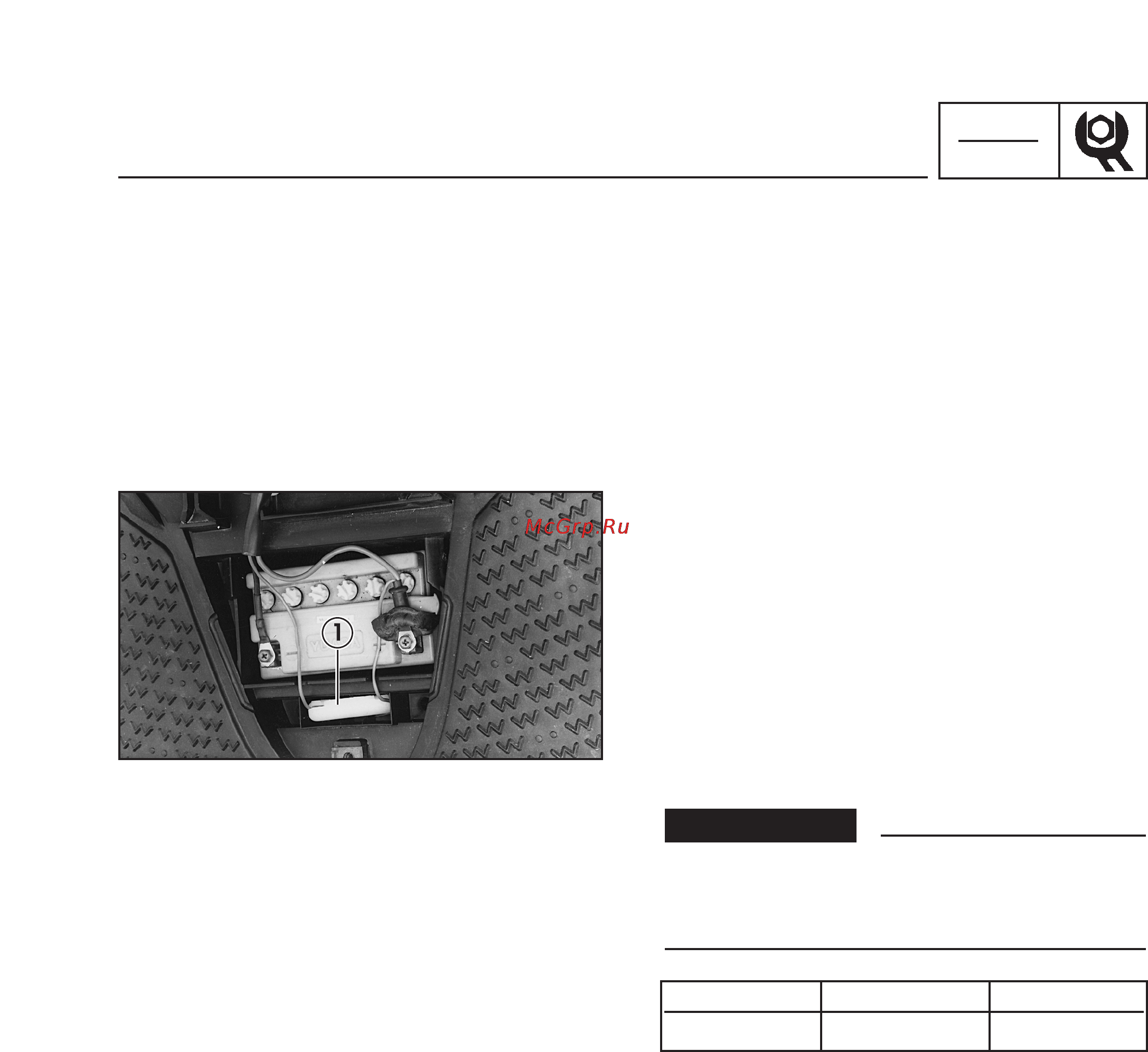

INSPECTION OF FUSES
3-19
INSPECTION OF FUSES
1. Remove:
• The battery cover
See the “FRONT BODYWORK” section
2. Inspect:
• Fuse
Defective
Replace
Steps to be taken for blown fuses:
• Disconnect the ignition and circuit.
• Install a new fuse of the correct amperage.
• Connect the switches to check the correct
operation of the electrical device.
• If the fuse blows immediately after, check
the circuit concerned.
ss
WARNING
Do not use fuses of a higher amperage than
that recommended. This can cause extensi-
ve damage to the electrical system and fire.
Description Amperage Quantity
Principal 7A 1
